Vis-i-Rack VRW46/VRW85
High Capacity Roll Storage Rack
Part#
Description
1
End Cap
2
Frame Assembly
3
Wall Brace
4
Mounting Plate
5
Nylon Nuts
6
Flat Washers
7
Short Mounting Plate Screw
8
Bolt
9
Long Drywall Screw
Installation Instructions
Qty
4
2
2
2
4
6
6
4
8
Page: 1 / 3
Tools required for assembly: Phillips screwdriver
Advertisement
Related Manuals for Brookside Design Vis-i-Rack VRW46
Summary of Contents for Brookside Design Vis-i-Rack VRW46

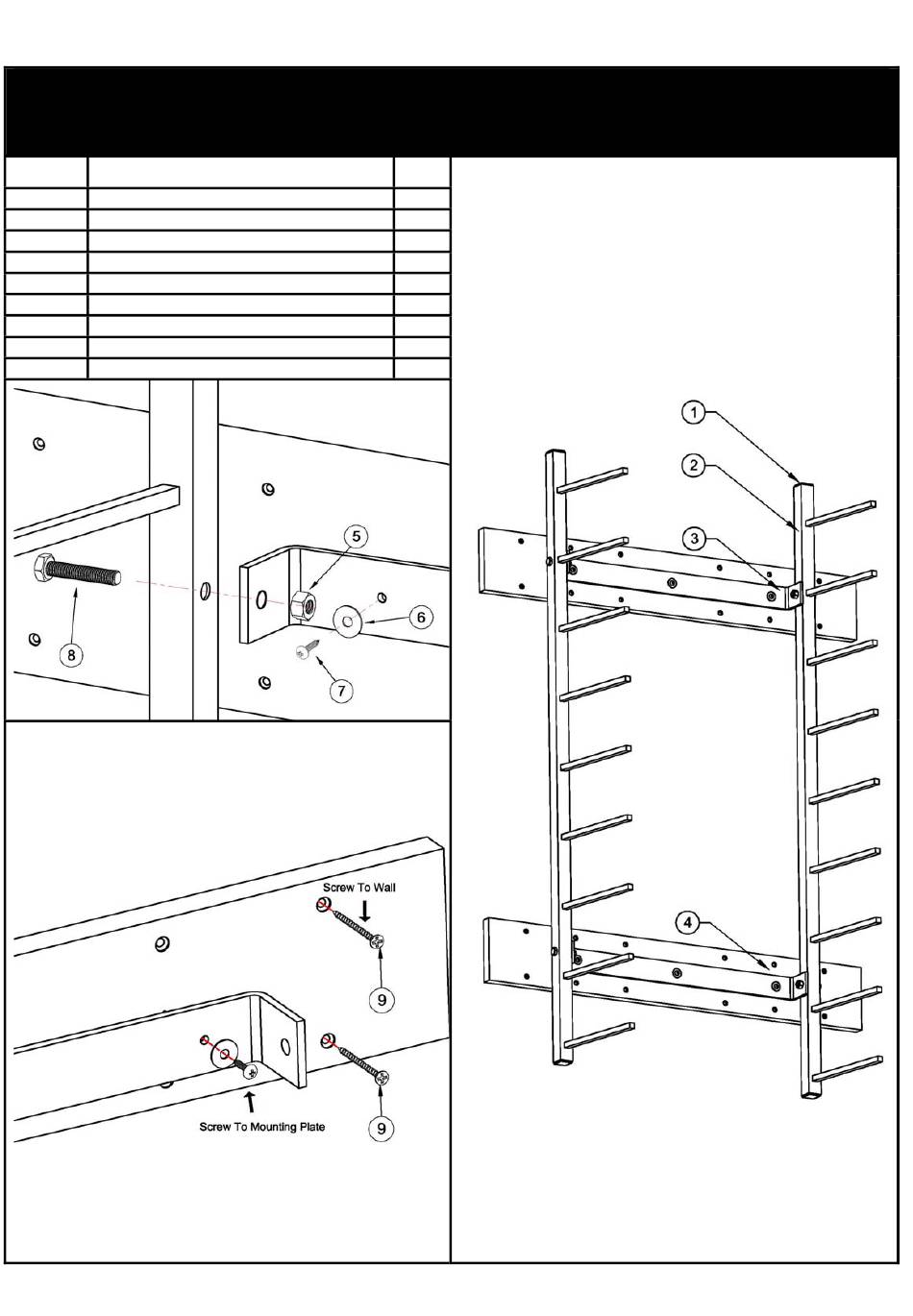

- Page 1 Vis-i-Rack VRW46/VRW85 High Capacity Roll Storage Rack Installation Instructions Part# Description End Cap Frame Assembly Wall Brace Mounting Plate Nylon Nuts Flat Washers Short Mounting Plate Screw Bolt Long Drywall Screw Tools required for assembly: Phillips screwdriver Page: 1 / 3...
- Page 2 Vis-i-Rack VRW46/VRW85 High Capacity Roll Storage Rack Installation Instructions 1) Attach wall braces to frame assembly using hardware provided. 2) Mount wall braces to wood mounting plates using hardware as provided. Page: 2 / 3...
- Page 3 Vis-i-Rack VRW46/VRW85 High Capacity Roll Storage Rack Installation Instructions 3) Locate wall studs if possible and attach mounting plates using the hardware provided. The mounting plate has been pre-drilled to accommodate studs that are 8”,16”or 24” apart. If you cannot locate wall studs we suggest you attach the rack to a solid wall surface.
