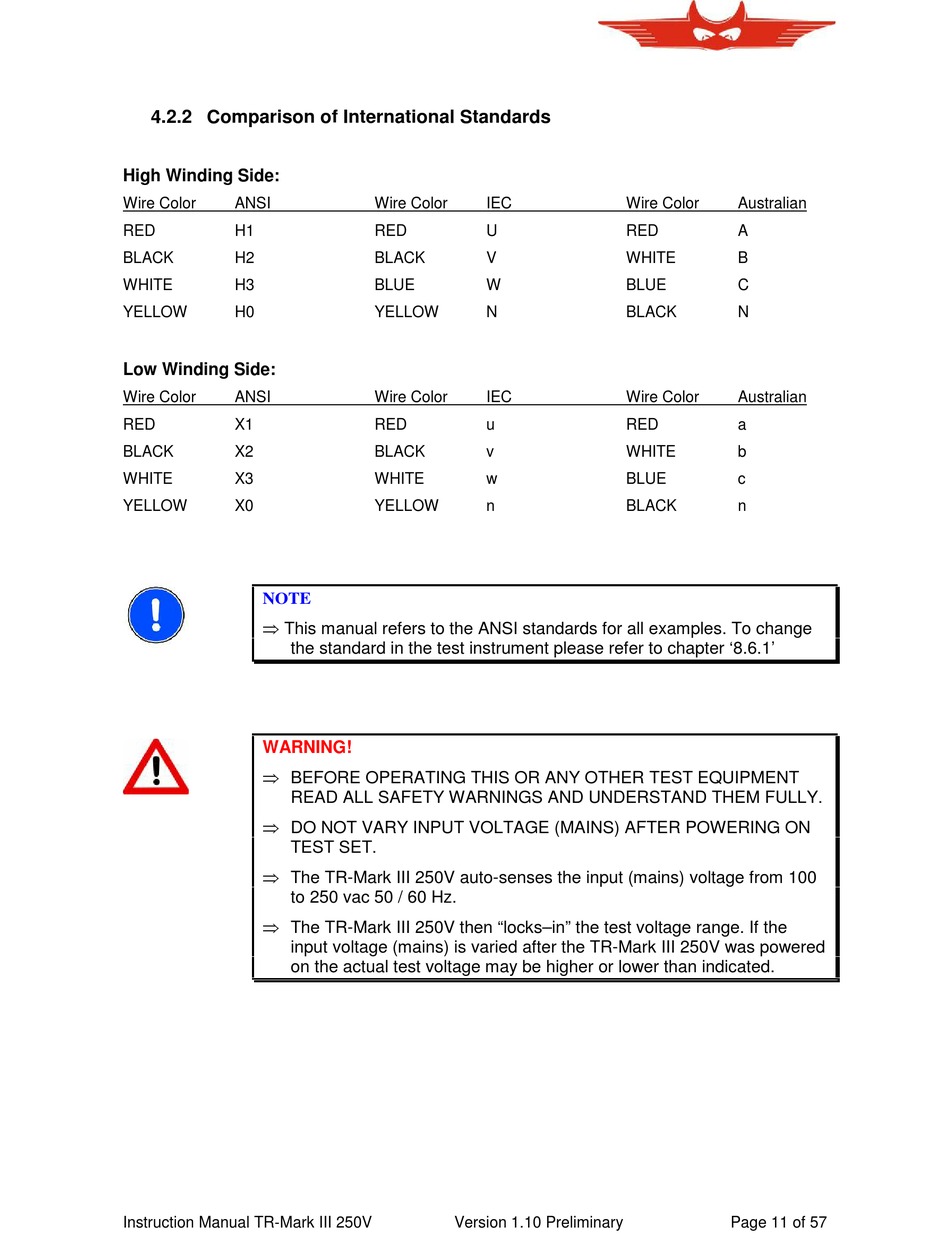

4.2.2 Comparison of International Standards

High Winding Side:
Wire Color ANSI
RED H1
BLACK H2
WHITE H3
YELLOW H0
Low Winding Side:
Wire Color ANSI
RED X1
BLACK X2
WHITE X3
YELLOW X0
NOTE
 This manual refers to the ANSI standards for all examples. To change
the standard in the test instrument please refer to chapter '8.6.1'
WARNING!
 BEFORE OPERATING THIS OR ANY OTHER TEST EQUIPMENT
READ ALL SAFETY WARNINGS AND UNDERSTAND THEM FULLY.
 DO NOT VARY INPUT VOLTAGE (MAINS) AFTER POWERING ON
TEST SET.
 The TR-Mark III 250V auto-senses the input (mains) voltage from 100
to 250 vac 50 / 60 Hz.
 The TR-Mark III 250V then "locks–in" the test voltage range. If the
input voltage (mains) is varied after the TR-Mark III 250V was powered
on the actual test voltage may be higher or lower than indicated.
Instruction Manual TR-Mark III 250V
Wire Color IEC
RED U
BLACK V
BLUE W
YELLOW N
Wire Color IEC
RED u
BLACK v
WHITE w
YELLOW n
Version 1.10 Preliminary
Wire Color Australian
RED A
WHITE B
BLUE C
BLACK N
Wire Color Australian
RED a
WHITE b
BLUE c
BLACK n
