SPARTAN

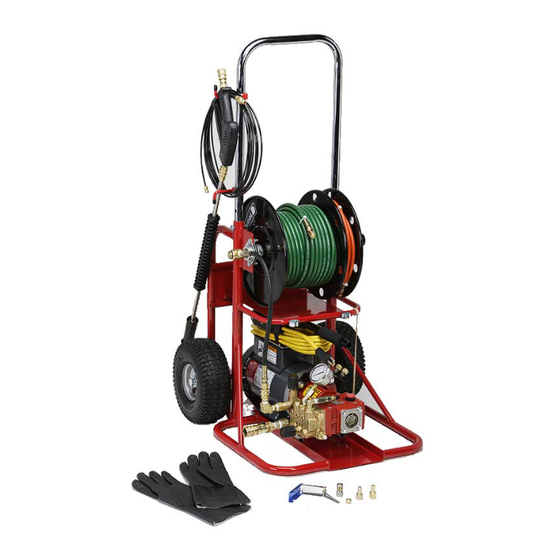

Model 717 Mini-Jet
Owner's Manual
Record the Serial Number of your
Model 717
and give the number to the factory
when ording parts.
Serial
Number ...........................................
SPARTAN TOOL L.L.C.
8 0 0 . 4 3 5 . 3 8 6 6
www.spartantool.com
71701200 (Rev. e) 4-18-11
© 2012 Spartan Tool LLC
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Spartan 717
Summary of Contents for Spartan 717
- Page 1 Model 717 and give the number to the factory when ording parts. Serial Number ........... SPARTAN TOOL L.L.C. 8 0 0 . 4 3 5 . 3 8 6 6 www.spartantool.com 71701200 (Rev. e) 4-18-11 © 2012 Spartan Tool LLC...
-
Page 2: Warning
Warnings ― Read the safety and operating instructions before using any Spartan Tool product. Drain and sewer cleaning can be dangerous if proper procedures are not followed and appropriate safety gear is not utilized. ― Before starting unit, be sure to wear personal protective equipment such as safety goggles or face shield and protective clothing such as gloves, coveralls or raincoat, rubber boots with metatarsal guards, and hearing protection. -
Page 3: Table Of Contents
Table of Contents Warning..............................2 Technical Information..........................4 High Pressure Water Jetting .........................5 Jet Applications Areas ...........................6 Safety Procedures ..........................7-9 Pre-Operation Checklist ........................10 Operational Instructions ....................... 11-14 Removal of “Power Pak”........................15 Preventive Maintenance & Troubleshooting ..................16 Troubleshooting............................17 Final Assembly - 71700000 ........................18 Frame Assembly - 44245700........................19 Pump Assembly - 71706300.........................20 Assy, Reel - 71702700 ..........................21... -
Page 4: Technical Information
Technical Information GENERAL Pipe Sizes 1-1/4” to 6” Diameter Max Water Delivery 2.2 GPM Max Pressure Delivery 1500 PSI Weight 133 Lbs. Unit Size 21-1/4W x 34D x 47-1/2H ENGINE Horsepower 2 HP Speed (RPM): 1800 Motor Weight: 53lbs. Max Electric Draw 14 Amps @ 1250 PSI 19 Amps @ 1500 PSI Volts:... -
Page 5: High Pressure Water Jetting
High Pressure Water Jetting High pressure water jetting is the utilization of high pressure water combined with sufficient water flow to remove debris in drain/sewer pipes. High pressure water jetting can also be used to remove debris on surfaces. A high pressure water jet consists of a pump, a motor or engine, a hose reel, a given length of hose and a various assortment of nozzles. -
Page 6: Jet Applications Areas
Jet Applications Areas There are a wide variety of uses for the Spartan Model 717 Water Jet. Here are just a few: ― Apartments/Hotels Mains and garage drains, remove grease and debris from main lines under the buildings. ― Factories Food processing plants and foundries have frequent drain and sewer blockages. -
Page 7: Safety Procedures
A three- prong adapter is provided and available through Spartan Tool. Never cut off the grounding prong for use in a two hole outlet receptacle. By doing so, you have cut off your protection from shock. - Page 8 Safety Procedures (cont.) B. The Spartan Model 717 is equipped with a ground fault interrupter (GFI) to guard against shock. C. Extension cords are not to be used with the Spartan Model 717. Caution #2 Always locate drain/sewer cleaning machine as close as possible to opening of pipe.
- Page 9 Safety Procedures (cont.) Caution #1 A. Keep work area clean. B. Keep all safety guards in place. C. Stay alert. D. Place machine and controls in a stable and accessible position for safe operation. E. Properly store the tools. F. Keep children away from all equipment. G.
-
Page 10: Pre-Operation Checklist
Pre-Operation Checklist Before using the operational instructions for the “Mini Jet”, follow this checklist: 1. Check the ground fault interrupter (GFI) before each use. (See instructions located on the GFI). DO NOT USE THE GFI IF THE INDICATOR LIGHT DOES NOT GO ON WHEN RESET OR IF THE INDICATOR LIGHT REMAINS ON WHEN THE TEST BUTTON IS PUSHED IN. -
Page 11: Operational Instructions
Operational Instructions WARNING: A MINIMUM OF 15 AMPS MUST BE AVAILABLE ON THE ELECTRICAL CIRCUIT AT ALL TIMES FOR THE “MINI JET” TO FUNCTION PROPERLY. CAUTION: - 15 AMP CIRCUIT - MAX PRESSURE 1250 PSI - 20 AMP CIRCUIT - MAX PRESSURE 1500 PSI 1. - Page 12 Operational Instructions (cont.) 6. Turn on the water faucet. 7. Prime the system by turning on the water inlet valve (See Fig 5). Allow the water to flow until the air is purged from the system 8. Flip the motor switch “on”. Fig.
- Page 13 Operational Instructions (cont.) 11. Always pull the water jet hose back one half the distance advanced. The actual cleaning of the pipe takes place when the hose is pulled back toward the operator. Pulling the water jet hose backwards also insures that the hose is not caught in the pipe or has not exited the pipe. PULSATION CONTROL 12.
- Page 14 Operational Instructions (cont.) WARNING: BE SURE TO RE-ADJUST PRESSURE CONTROL TO 1500 PSI BY TURNING CONTROL KNOB LEFT (COUNTERCLOCKWISE) BEFORE STOPPING UNIT, THIS WILL MAKE IT EASIER TO RE-START THE UNIT. (THE FUSE OR BREAKER MAY TRIP REPEATEDLY IF THE UNIT IS OPERATED OVER 1500 PSI DUE TO THE HIGHER CURRENT BEING DRAWN BY THE MOTOR.) 14.
-
Page 15: Removal Of "Power Pak
Removal of “Power Pak” The mini jet is actually “two water jets in one.” It can be operated as a complete long line unit or the “power pak” can be removed from the main reel frame and used as an independent portable unit in conjunction with shorter water jet hose assemblies. -
Page 16: Preventive Maintenance & Troubleshooting
Preventive Maintenance & Troubleshooting 1. Cold Weather Protection: To avoid damage to the pump and water jet hose, keep the “Mini-Jet” from freezing temperatures. If the “Mini-Jet” must be stored in freezing temperatures, you must use one of the following methods. Method 1: Use pressurized air to blow out any remaining water left inside pump and hose by using the air blow-out feature. -
Page 17: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Low Pressure inlet suction clogged or improper size Clean. Use adequate size. Check more frequently Indequate water supply Check flow available to pump Worn nozzle Replace nozzle of proper size Leaky discharge hose Repair or replace Pressure gayge inoperative or not Check with new gague. -
Page 18: Final Assembly - 71700000
Final Assembly - 71700000 ITEM QTY. PART NUMBER DESCRIPTION 44245700 ASSEMBLY, FRAME 71705800 ASSEMBLY, POWER PAK 71702700 ASSEMBLY, REEL 71110200 ASSEMBLY, HOSE 21” 71107200 CLAMP, GRIPPER 44039500 RIVET, POP 1/8” DIAMETER 71129200 NOZZLE, 1/8” 20 DEG CLOSED 77739800 DECAL, CAUTION 77739900 DECAL, WARNING 71729001... -
Page 19: Frame Assembly - 44245700
Frame Assembly - 44245700 ITEM QTY. PART NUMBER DESCRIPTION 44245200 WELDMENT, FRAME 717 44245000 HANDLE 44245400 WELDMENT, HANDLE WRAP 44245600 CAP, PROTECTIVE 00116900 SCREW, HEX HEAD 3/8-16 X 1-3/4” 522132-00 NUT, NYLOCK 3/8-16 71100700 TIRE, 10” PNEUMATIC 02994400 SCREW, HEX HEAD 5/8-18 X 4”... -
Page 20: Pump Assembly - 71706300
Pump Assembly - 71706300 ITEM QTY. PART NUMBER DESCRIPTION 71705900 PUMP, GIANT P221 71705955 UNLOADER 71136300 ELBOW, 90 DEG. FEMALE 3/8 71108700 BUSHING, REDUCER 3/8 MNPT X 1/4 FNPT 77721300 COUPLER, QUICK - FEMALE 71705954 THERMAL RELIEF VALVE 544001-01 GAUGE, 2000 PSI - 1/4 NPT 71106000 SHUT-OFF, HOSE 79904465... -
Page 21: Assy, Reel - 71702700
71703100 HANDCRANK 71703200 BRAKE 71703300 BRAKE KNOB 71703400 BEARING, 1” 71703500 SWIVEL, REPLCMNT 717 3/8 BRASS 71703600 COLLAR, SHAFT 44052700 DECAL, DRUM MODEL 200 & 300 71108700 BUSHING, REDUCER 3/8M X 1/4 F BRASS 542012-03 NIPPLE 3/8 X 1/4 Page 21... -
Page 22: Assy, Motor & Pump 71705800
Assy, Motor & Pump 71705800 Page 22... - Page 23 DECAL, WARNING - UNTRAINED PERSONNEL 72707800 DECAL, WARNING - HIGH PRESSURE 44261900 DECAL DANGER - ELECTROCUTION 71706500 DECAL, SPARTAN 71706600 DECAL, CAUTION - AMPERAGE 717 Pump Torque Specifications ITEM PART NUMBER DESCRIPTION TORQUE AMOUNT 71705926 Tension Screw, plunger 120 (in.-lbs.)
-
Page 24: Assy, Motor 71706100
Assy, Motor 71706100 ITEM QTY. PART NUMBER DESCRIPTION 71706000 MOTOR, MARATHON 2 HP 71135003 COVER, MOTOR (MACHINED) 44230201 GUARD, TOGGLE SWITCH (BLACK) 532000-02 SWITCH, TOGGLE DPST 44110500 RUBBER BOOT 538006-02 1/2” STEEL LOCKNUT 538006-01 STRAIN RELIEF CORD GRIP 71707100 CORD, POWER 12GA GFCI 71106800 DISCONNECT, FLAG TYPE 71125800... - Page 25 Assy, Motor 71706100 Page 25...
-
Page 26: Pump, Giant P221
Pump, Giant P221 (Modified) 71705900 ITEM QTY. PART NUMBER DESCRIPTION 71705905 CRANKCASE (GIANT P221) 71705906 OIL DIPSTICK (GIANT P221) 71705907 CRANKCASE COVER, SHORT 71705908 DRAIN PLUG & GASKET (GIANT P221) 71705909 O-RING (GIANT P221-08005) 71705910 OIL DRAIN PLUG & GSKT (GIANT P221) 71705911 SCREW, SHORT COVER (GIANT P221) 71705912... - Page 27 71705900 Pump - Exploded View 717 Pump Repair Kits Plunger Packing Kits (71705950) Oil Seal Kit (71705952) PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION 71705933 V-Sleeve, Weep 71705930 Oil Seal 71705934 V-Sleeve, Brown 71705935 Pressure Ring Valve Assembly Kit (71705951) PART NUMBER...
-
Page 28: Handgun Vnozzle- Small -77799900
Handgun Vnozzle Assy - Small 77799900 ITEM QTY. PART NUMBER DESCRIPTION 553006-01 LANCE, INSULATED GRIP 18" 71126100 NOZZLE, VARI- 77720100 GUN, HAND 77721300 COUPLER, QUICK GUN, 1/4" NPT MALE 77721400 COUPLER, QUICK GUN, MALE Page 28... -
Page 29: Unloader -71705955
71705955 Unloader (Giant P221) ITEM QTY. PART NUMBER DESCRIPTION ITEM QTY. PART NUMBER DESCRIPTION 71705964 A djus ting Spring Cap 71705977 P is ton Rod 71705965 P res s ure S pring 71705978 S uppport Ring 71705966 71705979 O-Ring 71705929 O-Ring 71705944 O-Ring... -
Page 30: Standard Accessories
Standard Accessories PART NUMBER DESCRIPTION 71108200 20º Nozzle (Closed) 1/4" I.D. Hose 71108300 30º Nozzle (Closed) 1/4" I.D. Hose 71108400 45º Nozzle (Closed) 1/4" I.D. Hose 71108500 20º Nozzle (Open) 1/4" I.D. Hose 71129200 20º Trap Hose Nozzle (Closed) 3/16" I.D. Hose 71137500 20º... -
Page 31: Optional Accessories
Hose S.S. Trap 75' with Nozzle 71702900 Hose S.S. Trap 100' with Nozzle 71701900 Brass Nozzle (for S.S. Hose) 1-1/4" Dia x 1/8 NPT *Spartan strongly recommends upgrading your hose to a stainless steel hose if difficult situations are encountered. Page 31... -
Page 32: Notes
Notes Page 32... -
Page 33: One Year Warrantee
SPARTAN TOOL L.L.C. MENDOTA, ILLINOIS 61342 Spartan Tool L.L.C. reserves the right to make changes at any time, without notice, to specifications and models and also discontinue models. The right is also reserved to change specifications or parts at any time without incurring any obligation to equip same on models manufactured prior to the date of change.
