SuperATV FBG-P-RAN-09-XP Installation Instructions

Curved front fender protectors for polaris ranger xp

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS
Curved Front Fender Protectors
for Polaris Ranger
XP
®
2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427

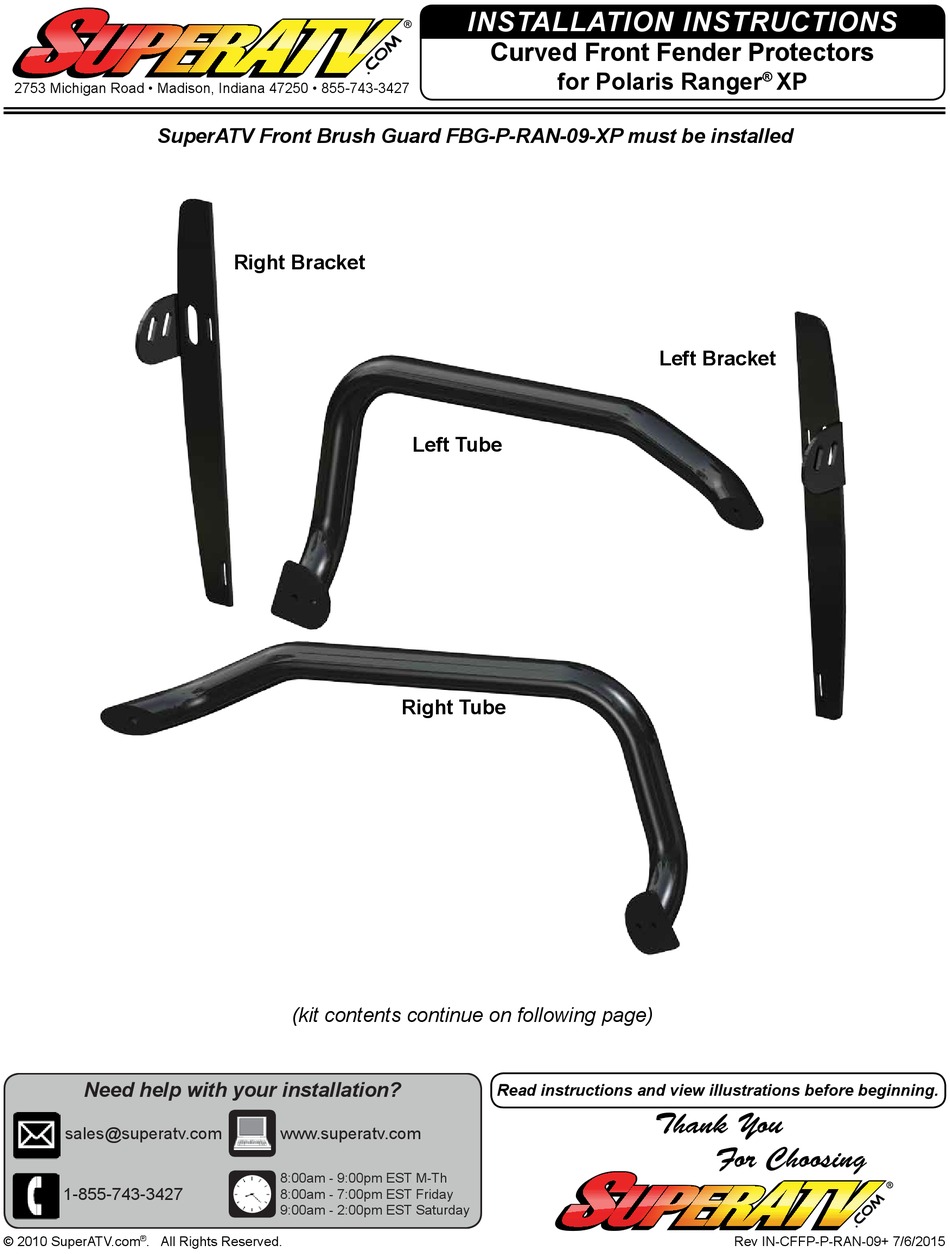

SuperATV Front Brush Guard FBG-P-RAN-09-XP must be installed
Right Bracket
Left Bracket
Left Tube
Right Tube
