Access Lighting 20043LEDDMG Installation Instructions

CERTIFICATION: UL WET
INSTALLATION INSTRUCTIONS
IMPORTANT
Before assembling your ACCESS LIGHTING fixture, please make sure that
you carefully read through these instruction sheets. Consider having
your fixture installed by a qualified licensed electrician.
NOTE: The important safeguards and instructions that appear in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and
care, are factors that can't be built into any product. These factors must
be supplied by the person(s) caring for and operating the fixture.
GENERAL INFORMATION
All electrical connections must be in accordance with all ordinances,
Local and National Electrical Codes. These fixtures are intended for
mounting to a standard 4" x 2 1/2"metal octagon outlet box. The box
must be directly supported by the building structure and U.L. Recognized.
STEP BY STEP INSTRUCTIONS
Before starting your installation disconnect the Power by turning off the
Circuit Breaker or by removing the fuse at the fuse box. Just turning the
light off at the light switch is not sufficient to prevent electrical shock.
COLLECTION
MIST
WHAT WE PROVIDE
•
Mounting Hardware
•
Crossbar
•
Fixture with Glass shade
•
LED

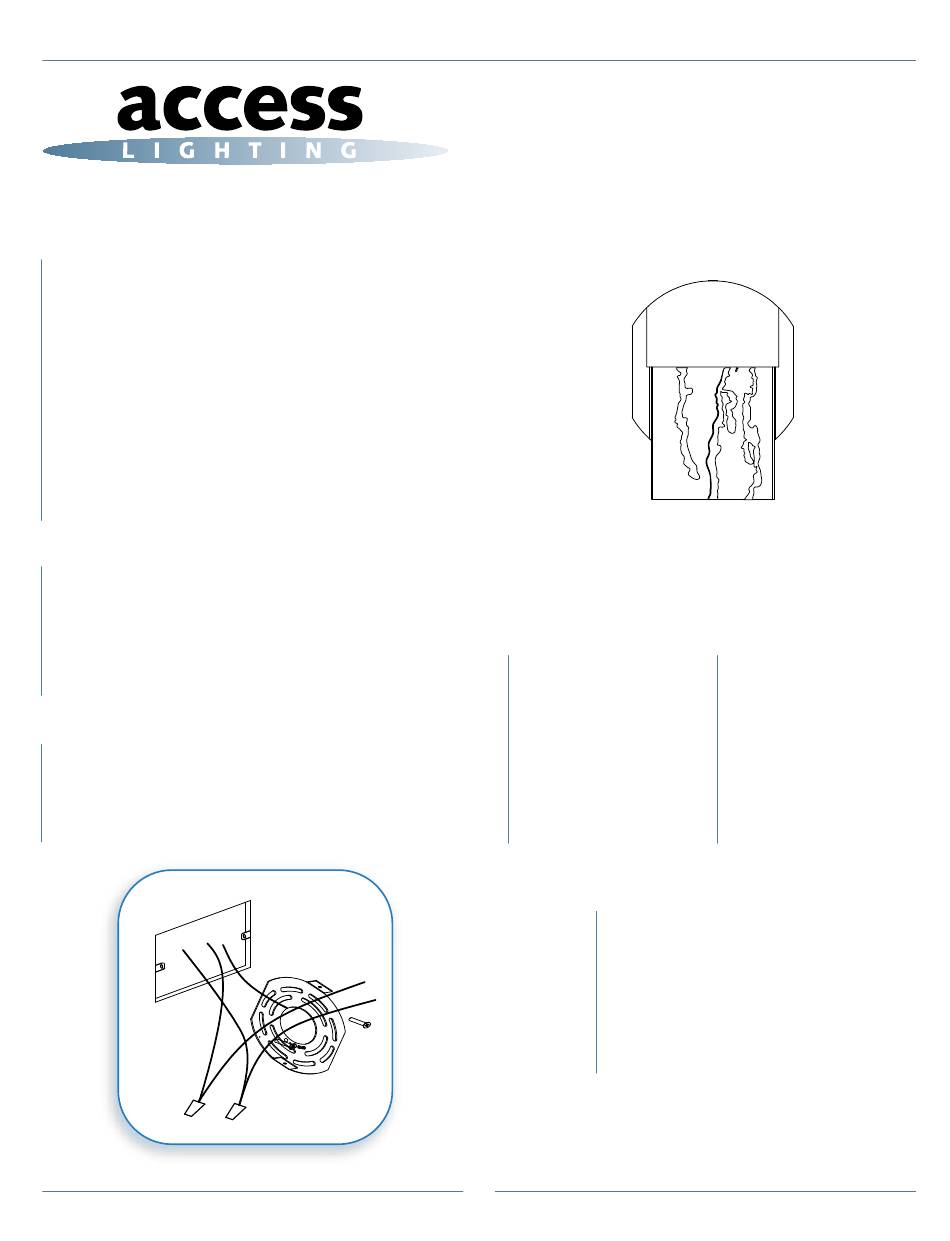

MOUNT CROSSBAR AND WIRE CONNECTIONS
1
I f there is an existing fixture remove it. Expose the supply wire
from the J-box. Mount the crossbar to the J-box with the
supplied screws. Connect the black supply wire to the black
fixture wire. Secure with the supplied wire nuts. Connect the
white supply wires to the white fixture wire. Secure with the
supplied wire nuts. Either wrap the green wire around one of
the protruding screws or connect it to the supply ground wire.
Secure all wire with electrical tape (not supplied).
Tuck all wires carefully into the J-Box.
1
NO. 20044LEDDMG
APPLICATION MODEL NO.
Wall Fixture
20043LEDDMG
WHAT YOU NEED
•
Screwdriver
•
Wire Cutters
•
Wiring Supplies as Specified
by Electrical Code
