SECTION 2: ASSEMBLING YOUR CHIPPER SHREDDER

This unit is shipped without gasoline or oil
IMPORTANT:
in the engine. Be certain to service engine with gasoline
and oil as instructed in the Briggs & Stratton Owner/
Operator manual packed with your unit. before
operating your machine.
Loose Parts In Carton
• Tow Bar (Model CS4210 Only)
• Debris Collection Bag
• Safety Glasses
• Engine Oil (one 20 oz. bottle)
Lowering the Chipper Chute
For shipping reasons, the unit is crated with its chipper
chute in a raised position. To pivot it downward,
proceed as follows:
• Pull the spring latch upward and gently pivot the
chipper chute down until it clicks into the lock rod.
See Figure 1.

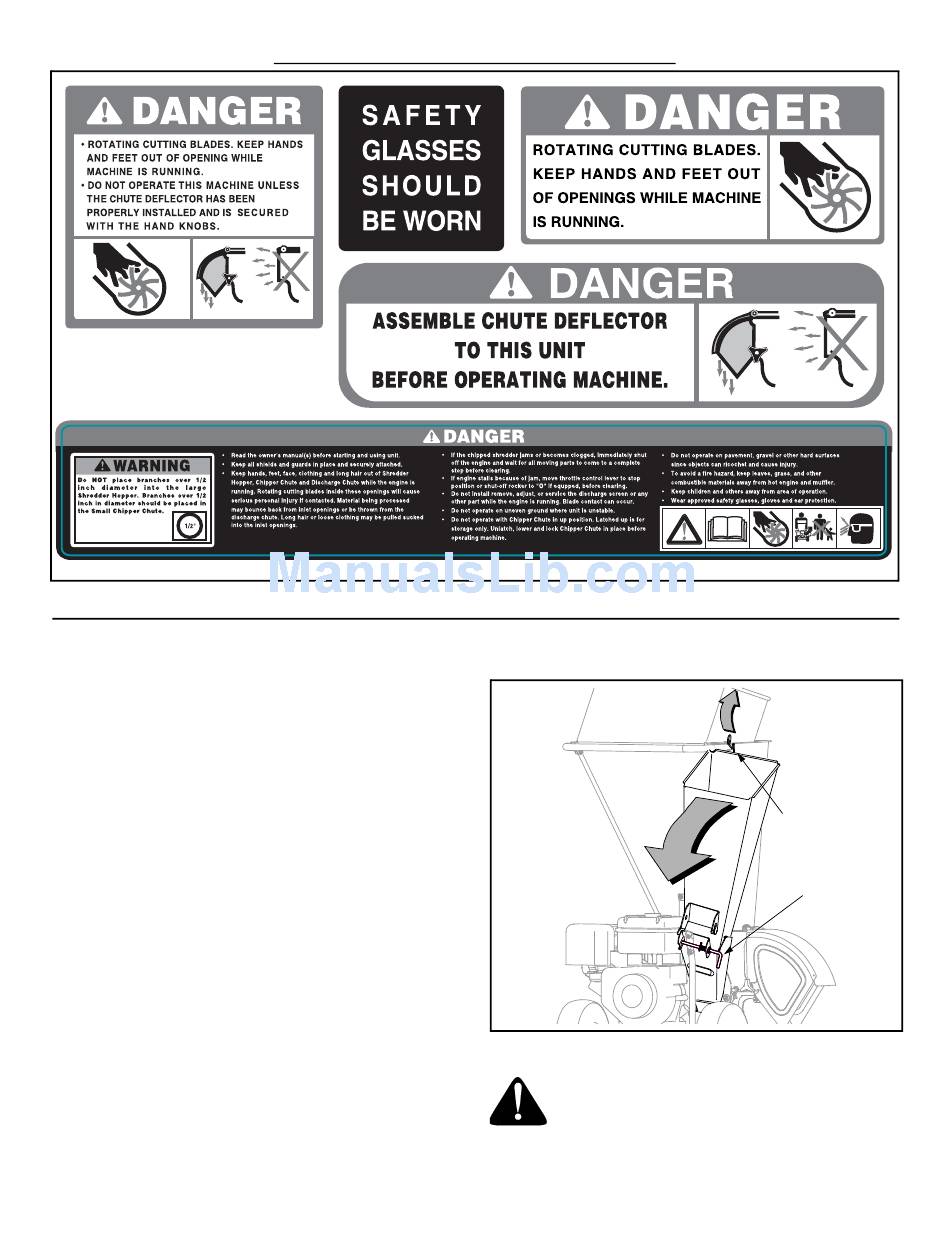

SAFETY LABELS FOUND ON YOUR UNIT

WARNING: Never operate the chipper
shredder with the chipper chute in the raised
position. Doing so may result in property
damage or serious injury to the operator or
bystanders.
5
1.
Spring Latch
2.
Lock Rod
Figure 1
