200521

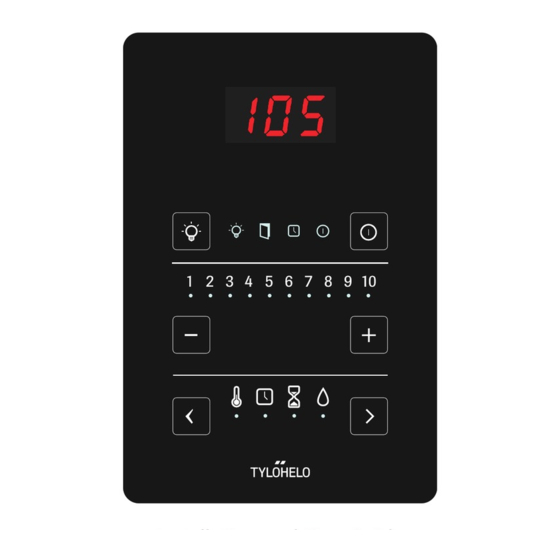

PURE 2.0 (QSG)
Quick Start Guide
Installation and User Guide
Read the user guide and instructions for the sauna heater. Electrical connections
should be performed by an authorised electrician. SAVE THESE INSTRUCTIONS! The
instructions should be given to the heater/sauna owner or person responsible for
servicing after installation.
2900 5202
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TyloHelo PURE 2.0
Summary of Contents for TyloHelo PURE 2.0

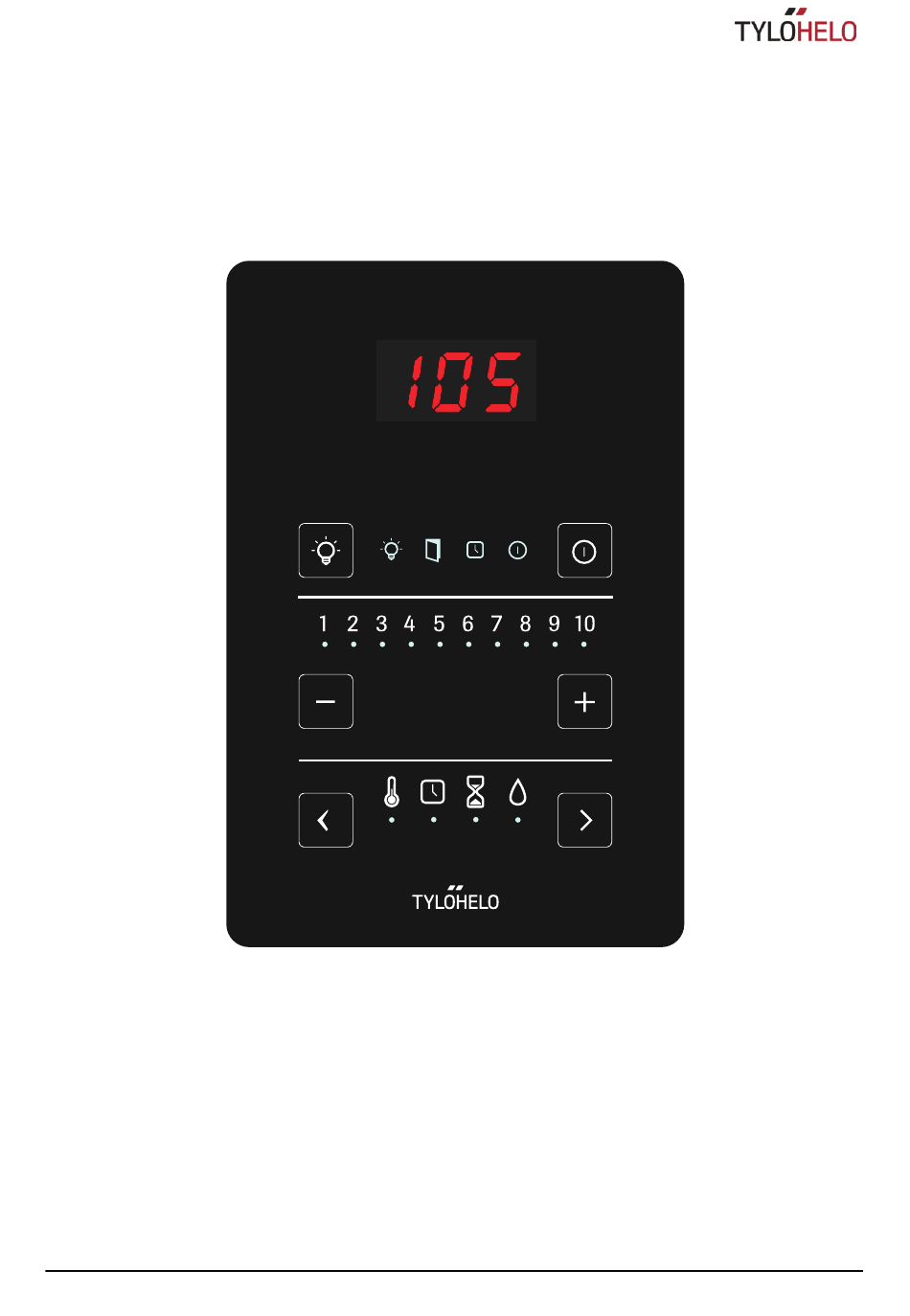

- Page 1 200521 PURE 2.0 (QSG) Quick Start Guide Installation and User Guide Read the user guide and instructions for the sauna heater. Electrical connections should be performed by an authorised electrician. SAVE THESE INSTRUCTIONS! The instructions should be given to the heater/sauna owner or person responsible for servicing after installation.
- Page 2 Installation Guide The control panel can be installed inside or outside the sauna/steam room. If installing inside the sauna cabin, the upper edge must not be more than 36” (92 cm) above the floor, and must be at least 12” (30 cm) from the side of the heater. The unit can be mounted on the wall using the double-sided adhesive supplied.
- Page 3 TURN ON THE MAIN POWER SWITCH WHEN USING PURE 2.0 CONTROL WITH A TYLÖ HEATER The main power switch (1) is at the bottom of Tyl ö heaters. Switch it on, if it is not already switched on - see figure above.
- Page 4 Using an External Switch: An external switch for starting/stopping the sauna can be connected to the heaters main PCA board via RJ10 modular connection. Contact TyloHelo Inc. for further information and to order the external switch. 2900 5202...
- Page 5 Setting Humidity Level (Combi Heaters Only) Use the function selection button (section F) to select the humidity setting. Use the -/+ buttons to then select the desired humidity levels 0-10. Select 0 (off ) by pres- sing < when humidity is set to 1. Each step on the scale indicates the length of time for which the element in the water tank will operate.
- Page 6 Always investigate why the heater overheated. It can be the result of insufficient room ventilation or the rocks need to be replaced or re-stacked. For other errors, contact your dealer or TyloHelo Inc. Technical Support at 1-888-780-4427 or email at techsupport@tyloheloinc.com...
- Page 7 2900 5202...
