Audio Note TT-Three Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TT-Three
TURNTABLE
OWNER'S INFORMATION

Advertisement

loading

Related Manuals for Audio Note TT-Three

Summary of Contents for Audio Note TT-Three

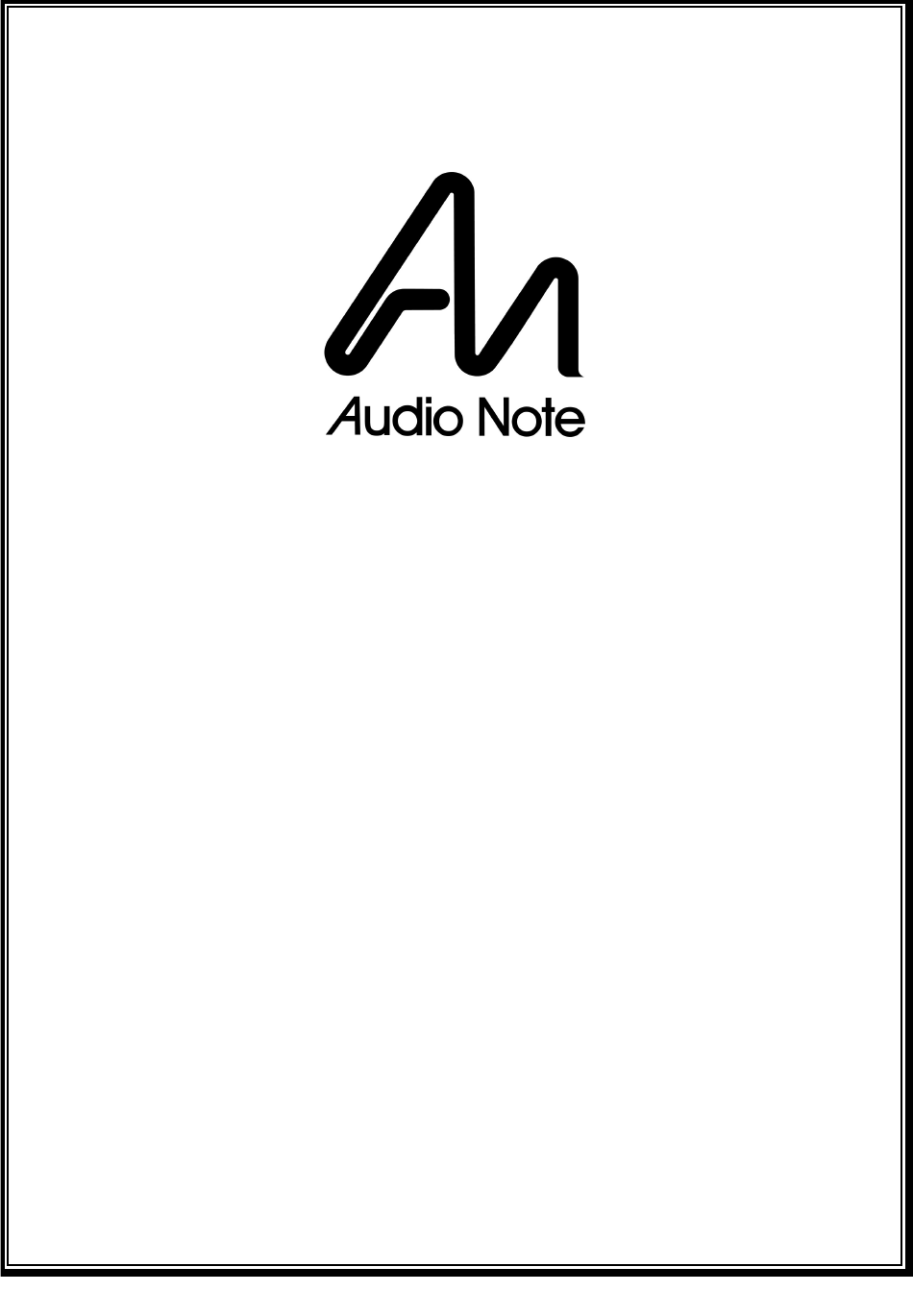

  • Page 1 TT-Three TURNTABLE OWNER’S INFORMATION...
  • Page 2 CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW 5) UNPACKING AND INSTALLATION 23) CONNECTION 24) OPERATION 26) WARRANTY INFORMATION 27) CONTACT INFORMATION...

  • Page 3: Important Safety Information

    ! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements.

  • Page 4: Ce Declaration Of Conformity

    BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited Viscount House Star Road, Star Trading Estate Partridge Green West Sussex RH13 8RA...
  • Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.
  • Page 6 It has been specifically engineered for sonic performance rather than technical specification, and fulfills all Audio Note (UK) Level 3 criteria. The TT-Three can be supplied with three different power supplies, each of which is designed to offer the best possible performance at its given price point: - PSU 1 The power supply 1 offers an excellent level of musical engagement without compromise of the component quality.

  • Page 7: Unpacking And Installation

    UNPACKING AND INSTALLATION Please take care when unpacking your TT-Three turntable and power supply. Choose a clean, clear location to unpack your units. Be aware that the turntable and power supply are surprisingly heavy; before attempting to unpack or lift the units, check the weight and if necessary use more than one person so that they can be moved safely and easily.
  • Page 8 UNPACKING AND INSTALLATION continued… The turntable is shipped in a semi-disassembled form, and must be correctly reassembled before use. It is essential that this reassembly is performed correctly or serious damage that is not covered by the warranty will result. We recommend that your dealer performs this procedure for you if you are in any way unsure.
  • Page 9 UNPACKING AND INSTALLATION continued… Remove the sub-chassis from the box (shown in RED):...
  • Page 10 UNPACKING AND INSTALLATION continued… Locate and remove the sub platter / bearing (shown in RED):...
  • Page 11 UNPACKING AND INSTALLATION continued… Locate and remove the motor protection foam rings (shown in RED):...
  • Page 12 UNPACKING AND INSTALLATION continued… Remove the foam slab covering the base / motors (shown in RED):...
  • Page 13 UNPACKING AND INSTALLATION continued… Remove the two large side protection foam blocks (shown in RED):...
  • Page 14 UNPACKING AND INSTALLATION continued… Remove the main base / motor unit (shown in RED):...
  • Page 15 UNPACKING AND INSTALLATION continued… Remove the base foam slab (shown in RED):...
  • Page 16 UNPACKING AND INSTALLATION continued… Remove the platter and its packing foam slab (shown in RED):...
  • Page 17 UNPACKING AND INSTALLATION continued… Remove the power supply (shown below in RED) from the bottom of the box. You will also find the accessories (belt, bearing oil etc) in a plastic bag at the side of the PSU box: Once the turntable components have been fully unpacked, place all of the packing materials back inside the main box and store in a safe, dry place for future use.
  • Page 18 UNPACKING AND INSTALLATION continued… Place the main base / motor unit on a clean, solid, level surface. IT IS ESSENTAIL THAT THIS SURFACE IS LEVEL. If it is not, the suspension set up will be compromised and optimal performance will not be achievable. Locate the three suspension towers (shown in RED):...
  • Page 19 UNPACKING AND INSTALLATION continued… Place the sub-chassis on the base / motor unit. IT IS ESSENTAIL THAT THE SUSPENSION TOWERS ARE CORRECTLY ALIGNED WITH THE PILLARS / TUBES ON THE UNDERSIDE OF THE SUB-CHASSIS:...
  • Page 20 UNPACKING AND INSTALLATION continued… The ends of the white suspension bars (shown below in RED) must be located correctly in the two notches, located on either side of the bottom of each of the three suspension tower pillars / tubes, which are on the underside of the sub-chassis. CHECK THAT THIS IS CORRECT FOR ALL THREE SUSPENSION TOWERS: SUB-CHASSIS, SIDE VIEW, SHOWING...
  • Page 21 UNPACKING AND INSTALLATION continued… Once the sub-chassis has been correctly installed on the main base / motor unit, install the sub-platter. Before the sub-platter can be installed, remove the protective tape from the top of the main bearing well. No additional oil needs to be added to the bearing at this time;...
  • Page 22 UNPACKING AND INSTALLATION continued… Before the suspension can be adjusted, the tonearm must be installed. It is not necessary to install the cartridge at this time, but the tonearm and its counter-weight must be installed on the sub-chassis:...
  • Page 23 UNPACKING AND INSTALLATION continued… Once the tonearm has been installed, final adjustment of the suspension can be performed. (The suspension is adjusted at the factory, but this setup can move during transit). First, install the platter and belt. The belt must run over all three motor pulleys: The belt should settle at the centre of the platter’s edge, all the way around the circumference of the platter.
  • Page 24 UNPACKING AND INSTALLATION continued… Examine the areas where the belt contacts the platter either side of each motor pulley. Look for the position of the belt at the platter’s edge at these points. You should be able to ascertain which suspension tower(s) require adjustment; if the belt is running low on the platter (below the centre line of the platter), then the suspension tower at this point needs to be lowered.
  • Page 25 This cable is equipped with locking connectors and can only be installed one way. On the rear of the TT-Three plinth is a circular four pin ‘male’ socket; connect the ‘female’ end of the umbilical cable to this (it can only be inserted on way) and tighten the locking ring ‘finger tight’.
  • Page 26 FIRST item to be turned off when the listening session is over. Turn on the TT-Three by using the rocker switch located on the rear top right of the PSU’s back panel, just below the mains inlet socket.
  • Page 27 SUPPLY BEFORE UNDERTAKING ANY CLEANING. Bearing Oil A syringe of bearing oil is supplied with the TT-Three. If the bearing requires re-oiling, place 2 – 3 drops of oil directly into the bearing well. The bearing oil only needs to be checked and renewed roughly every 2 years.

  • Page 28: Warranty Information

    Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to cover the cost of parts and associated labour required to correct such defects, subject to terms & conditions.

  • Page 29: Contact Information

    CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
