Sensata Magnum Energy ME-RC Quick Reference Manual

Lithium Battery Settings
QUICK REFERENCE GUIDE
Using the Magnum Energy ME-RC or ME-MR Remote Controls, set Magnum Energy
inverter/chargers to charge lithium iron phosphate (LFP) batteries.

STANDARD LFP SETTINGS AVAILABLE FOR THE FOLLOWING MAGNUM ENERGY INVERTER/CHARGER MODELS

• MS2000 • MS2812
• MS2012 • MS2024

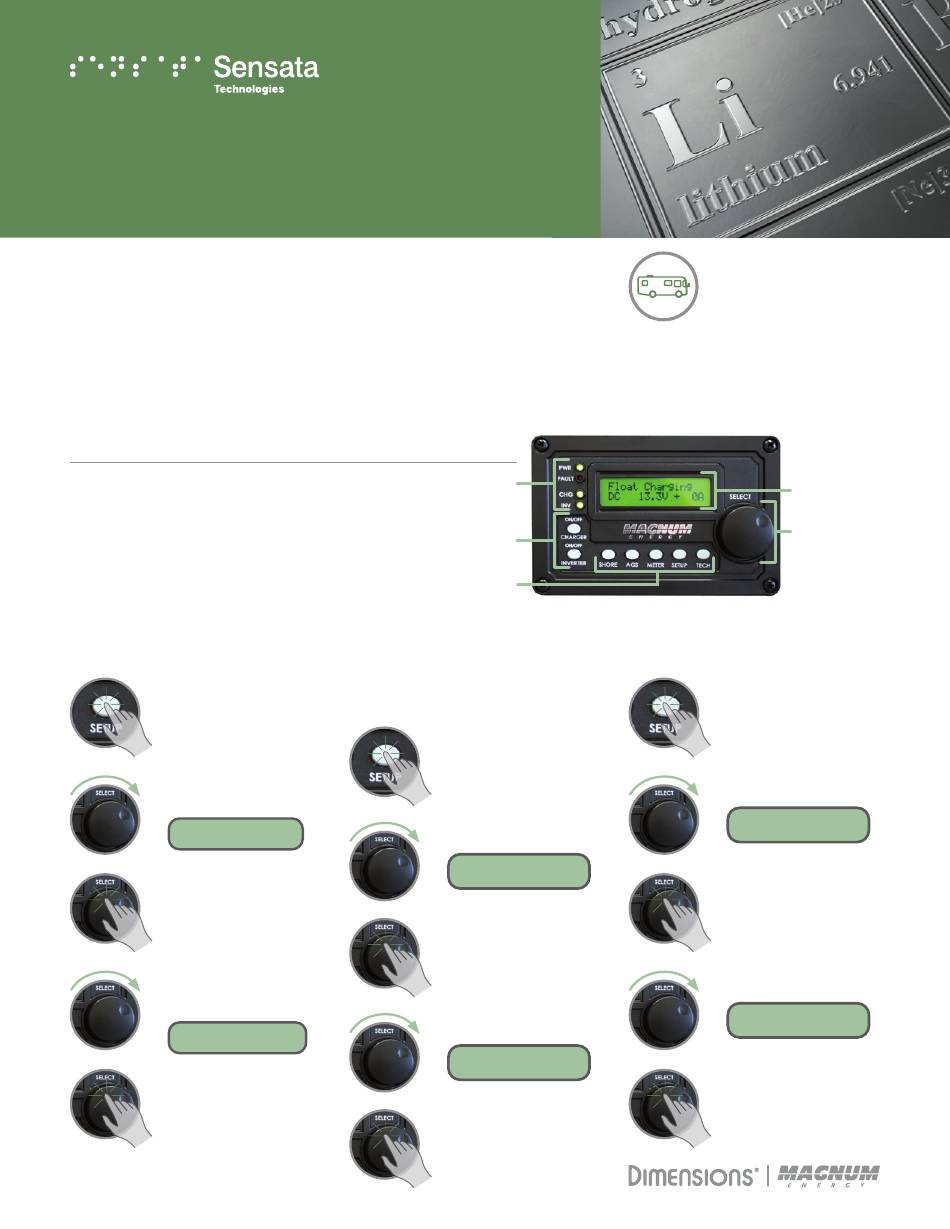

ME-RC Remote Control

From the ME-RC Remote Control version 2.9 or higher,
program your Magnum Energy inverter/charger to
charge lithium batteries.
STEP ONE:
Set the Low Battery Cutout to
battery manufacturer's specifications.
Press Setup
Rotate to Low
Battery Cutout
Status...
02 LowBattCutOut
Press Rotary Knob
to select
Rotate to battery
manufacturer's specs, or
11.0 VDC if not specified.
Status...
LowBattCutOut = 11.0
Press Rotary Knob to save
• MS4024 • MSH3012M
• MS4048 • MSH3012RV
On/Off Push Buttons
STEP TWO:
Set the Absorb Time setting
to battery manufacturer's specifications.
The setting is determined by the 20-hour
amp-hour capacity of your battery bank.
• MSH4024M • MMSA1012
• MMS1012
LED Indicators
Menu Buttons
Press Setup
Rotate to Absorb Time
Status...
03 Absorb Time
Press Rotary Knob
to select
Rotate to 1 hour
Status...
Absorb Hrs = 1.0
Press Rotary Knob to save
Access LFP battery settings
via built-in RV control panels
using the ME-RVC bridge.
LCD Display
Rotary Select Knob
STEP THREE: Set the Battery Type
setting to LFP.
Press Setup
Rotate to Battery Type
Status...
04 Battery Type
Press Rotary Knob
to select
Rotate to LFP
Status...
BatType = LFP
Press Rotary Knob to save
