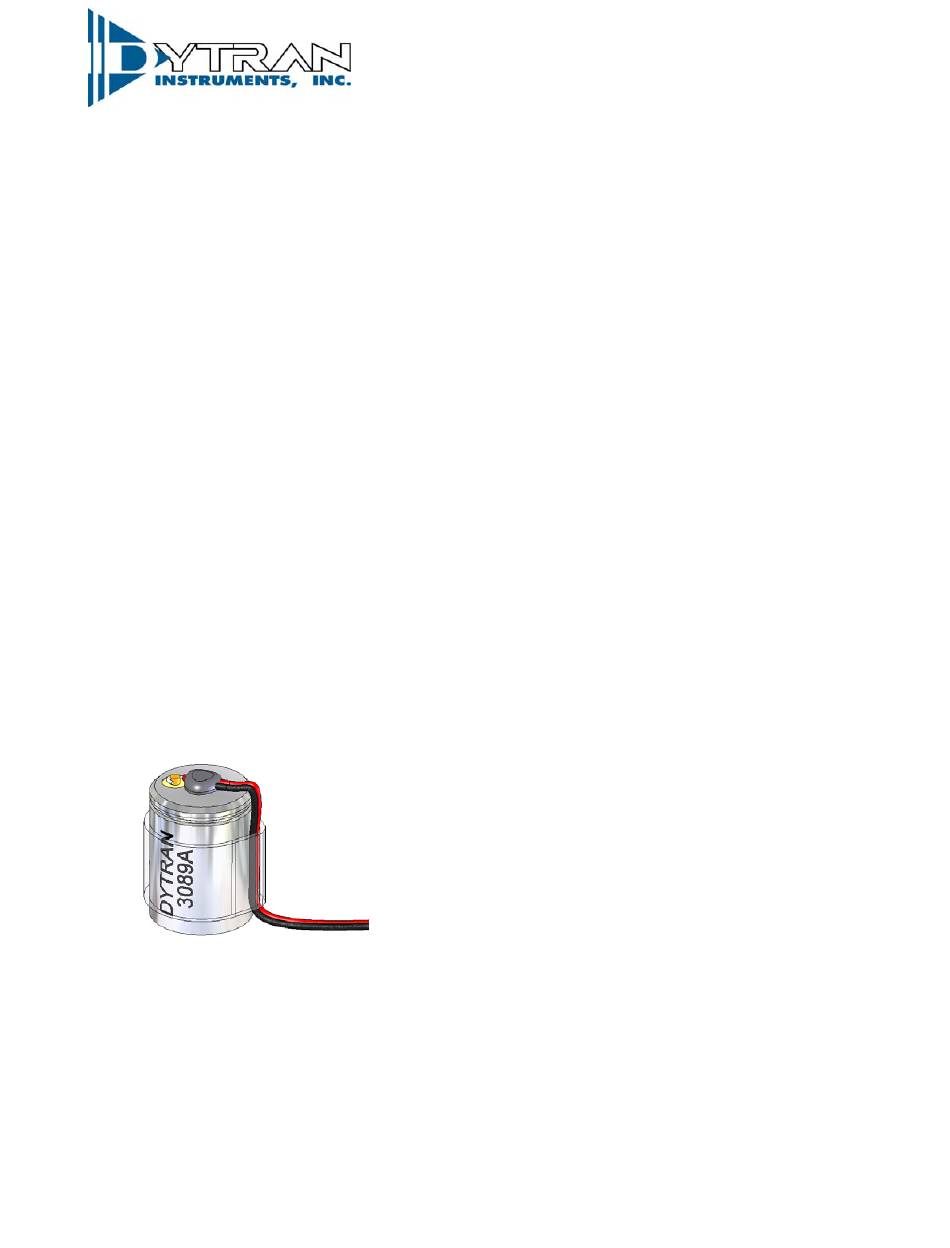

Dytran 3089A Operating Manual

Quartz shear mode miniature iepe accelerometer

Download this manual

OG3089A

Rev A ECN 4949

REV B ECN 8291 02/08/12

NOTE: IEPE is an acronym for Integrated Electronics Piezoelectric types of low impedance voltage mode sensors

with built-in amplifiers operating from constant current sources over two wires. IEPE instruments are compatible

with most other manufacturers' comparable systems.

D y n a m i c T r a n s d u c e r s a n d S y s t e m s

2 1 5 9 2 M a r i l l a S t . • C h a t s w o r t h , C A 9 1 3 1 1 • P h o n e 8 1 8 - 7 0 0 - 7 8 1 8

w w w . d y t r a n . c o m • e - m a i l : i n f o @ d y t r a n . c o m

OPERATING GUIDE

MODEL 3089A QUARTZ SHEAR MODE

MINIATURE IEPE ACCELEROMETER

NOTE:

accelerometer. The accelerometer is adhesively mounted and

incorporates integral wires.

This guide contains:

1) Operating instructions, Model 3089A.

2) Outline/installation drawing, Model 3089A

3) Specifications, Model 3089A

4) Paper, "Low Impedance Voltage Mode (LIVM) Theory and

Operation

Model 3089A is a lightweight miniature piezoelectric

Need help?

Do you have a question about the 3089A and is the answer not in the manual?

Page 1 REV B ECN 8291 02/08/12 OPERATING GUIDE MODEL 3089A QUARTZ SHEAR MODE MINIATURE IEPE ACCELEROMETER NOTE: Model 3089A is a lightweight miniature piezoelectric accelerometer. The accelerometer is adhesively mounted and incorporates integral wires. This guide contains: 1) Operating instructions, Model 3089A.
Page 2: Specification
SPECIFICATIONS MODEL 3089A IEPE ACCELEROMETER SPECIFICATION VALUE UNITS PHYSICAL WEIGHT grams SIZE, DIA x HEIGHT 0.19 x 0.25 inch MOUNTING adhesive OUTPUT WIRES integral WIRE LENGTH variable HOUSING MATERIAL 300 Series Stainless Steel PERFORMANCE SENSITIVITY, ± 5% [1] 10.0 mV/g RANGE F.S.
Page 3 DC bias and allows the dynamic signal voltage to be The sensitivity of Model 3089A is 10 mV/g. separated and brought out to an "output" jack on the power unit.
Page 4: Installation
-3db frequency or 3 x .16 = 0.64 Hz. The frequency at which the sensitivity may increases or decrease by 10% is approximately 10000 Hz, the frequency to which the 3089A is calibrated. INSTALLATION (Refer to Outline/Installation drawing 127-...
Page 5 Often our service engineers may point out something which may have been overlooked and which may save the expense and time of returning the 3089A to the factory. If the instrument must be returned, the service department will issue you a Returned Materials Authorization (RMA) number to aid in tracking the repair through the system.
