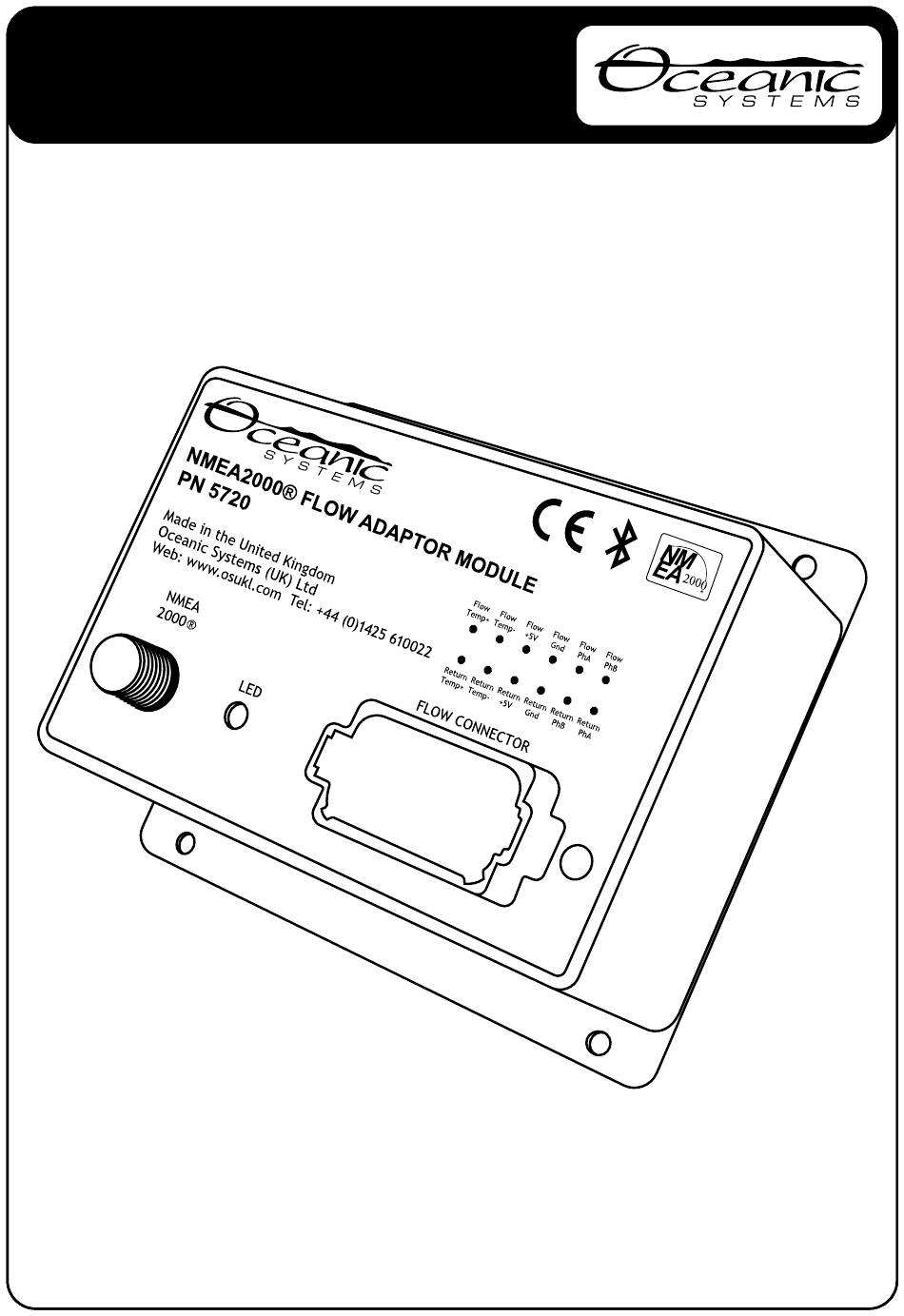

- Page 1 OCEANIC SYSTEMS NMEA2000® FLOW ADAPTOR MODULE USER MANUAL Part Number: 5720 Document revision 1...
-
Page 2: Table Of Contents
Introduction Firmware Revision Product Features Installation Unpacking the box Mounting the unit Connecting the NMEA2000 Cable Connecting the sensor cables to the Deutsch header Configuration Device Instance Outward Flow Engine Instance Return Flow Engine Instance Outward Flow Temperature Instance Return Flow Temperature Instance... -
Page 3: Introduction
INTRODUCTION The Oceanic Systems 5720 Flow Adaptor Module is designed to report fuel flow and usage over the NMEA 2000 (tm) network using positive displacement flow meters. These high accuracy sensors connect directly to the 5720 using IP68 rated standard Deutsch connectors (mating connector kit available separately as p/n 5099). -
Page 4: Installation
INSTALLATION 2.1 UNPACKING THE BOX You will find the following items in the 5270 shipping box: 1 x 5720 NMEA2000® Fluid Flow Adaptor Module 1 x 5720 User Manual (This document) 2.2 MOUNTING THE UNIT The unit should be mounted to a flat surface using 4 M4 mounting screws. The unit dimensions and mounting hole locations are shown on the following drawing. -
Page 5: Connecting The Nmea2000 Cable
2.3 CONNECTING THE NMEA2000® CABLE The unit is connected to the NMEA2000® network by the 5 way micro C socket on the front. Carefully attach the plug of the network drop cable to this socket and tighten by hand until it is fully seated. -
Page 6: Configuration
The following items can be configured on the 5720 3.1 DEVICE INSTANCE It is possible to install 127 5720 Fluid Flow monitors on a NMEA2000® network. This value must be set to give each a unique address. 3.2 OUTWARD FLOW ENGINE INSTANCE The flow rate from the flowmeter connected to terminals 1 to 6 of the Deutsch Connector are reported on PGN 127489 (Engine Parameters, Dynamic) with this instance. -
Page 7: Operation
OPERATION The 5720 Fluid Flow Adaptor is powered from the NMEA2000® network and transmits data from the flow sensors using the PGNs detailed in the Technical Specifications section. The LED on the front of the unit flashes blue every second to indicate normal operation or red to indicate an error condition. - Page 8 NMEA2000® Parameter Group Numbers (PGNs) Type PGN No PGN Name Monitor PGN127489 Engine Parameters, Dynamic PGN127497 Trip Fuel Consumption, Engine P GN130316 Temperature, Extended Range Protocol PGN126464 Tx/Rx PGN List PGN126996 Product Information PGN059392 ISO Acknowledge PGN059904 ISO Request PGN060928...
-
Page 9: Technical Support
Email: sales@osukl.com Web: www.osukl.com Copyright © 2020 Oceanic Systems (UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so product specifications are subject to change without notice. Oceanic Systems products are designed to be accurate and reliable. -
Page 10: Warranty
Systems sole obligation hereunder, provided product is returned pursuant to the return requirements below, shall be limited to the repair or replacement, at Oceanic Systems option, of any product not meeting the above limited warranty and which is returned to Oceanic Systems; or if Oceanic Systems is unable to deliver a replacement that is free from defects in materials or workmanship, Purchaser’s...
