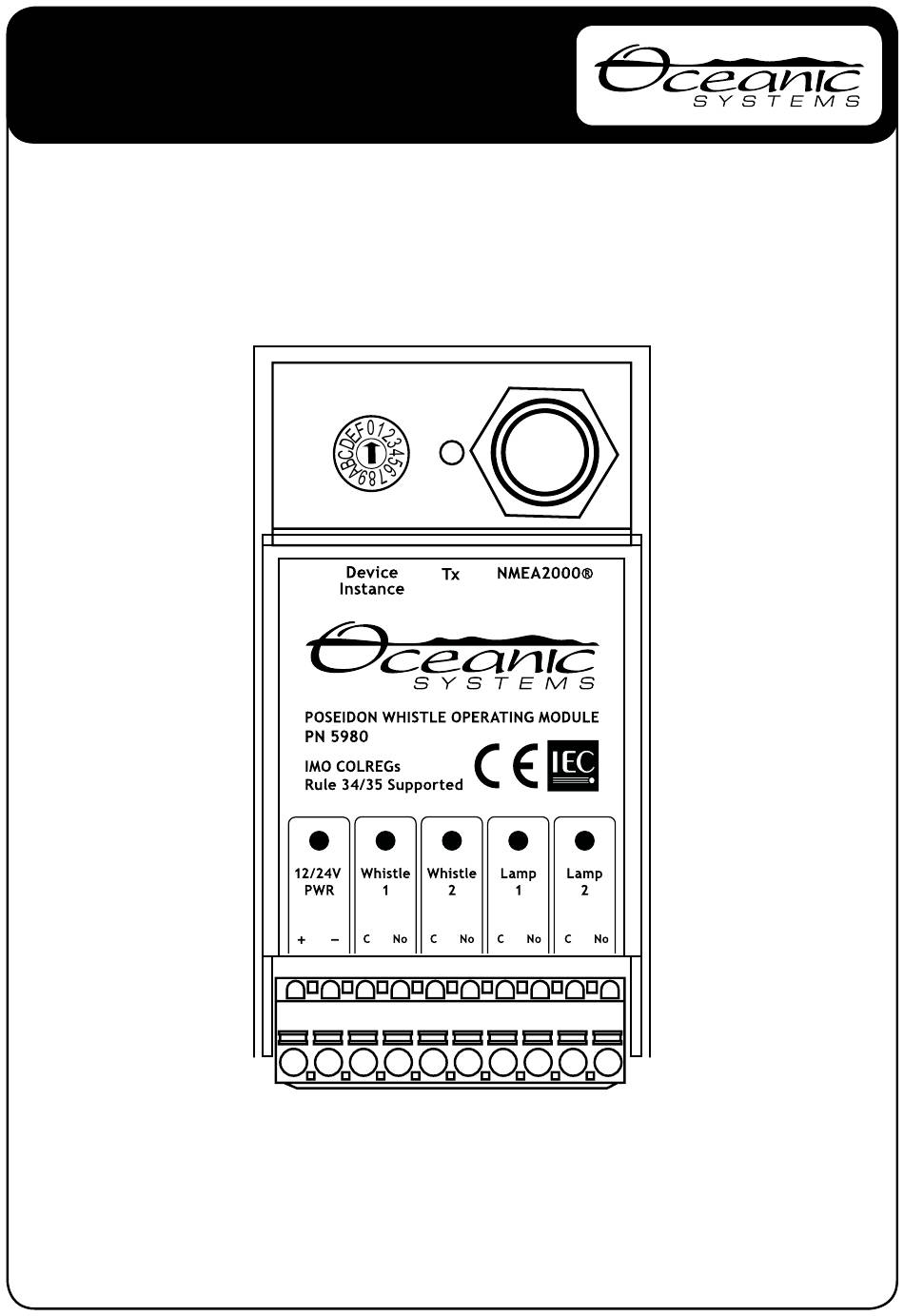

- Page 1 Whistle Operating Module Part Numbers: 5980 USER MANUAL Document revision 1.00...
-
Page 2: Product Features
INTRODUCTION The Oceanic System’s 5980 Whistle Operating Module is designed to control up to 2 separate ships horns or whistles and up to 2 separate ships warning lights on a Poseidon AMCS System. This unit is designed to operate in a protected marine environment such as an electrical cabinet. -
Page 3: Mounting The Unit
2.2 MOUNTING THE UNIT The unit should be mounted on a standard DIN rail mount in a protected area inside an electrical cabinet. The unit dimensions are shown on the following drawing. DIN Rail mounting 2.3 CONNECTING THE NMEA2000® CABLE The unit is connected to the NMEA2000®... -
Page 4: Connecting The Relay Cables To The Wago Socket
2.4 CONNECTING THE RELAY CABLES TO THE WAGO SOCKET The cables from the relays to the external sockets are connected using the 8 x 3-way WAGO Cage Clamp terminal block. The wire should be stripped for 8mm and then the cage clamp opened with a small screwdriver in the slot above the wire connection. -
Page 5: Operation
Device Instance with a small screwdriver. OPERATION The 5980 Whistle Operating Module has two horn circuits and two warning lamp circuits, each equipped with a 1 Amp relay that can drive the units directly. If a greater current is required they can drive a larger external relay to supply that extra current. - Page 6 Certifications Parameter Comment NMEA2000® Tested Maritime Nav and RadioComm Equipment IEC60945 CE and FCC Electromagnetic Compatibility NMEA2000® Parameter Group Numbers (PGNs) Type PGN No PGN Name Command PGN065453 Whistle Control (prop) Status PGN065452 Whistle Status (prop) Protocol PGN126464 Tx/Rx PGN List PGN126996 Product Information PGN059392...
-
Page 7: Technical Support
Email: sales@osukl.com Web: www.osukl.com Copyright © 2018 Oceanic Systems (UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so product specifications are subject to change without notice. Oceanic Systems products are designed to be accurate and reliable. -
