installation (continued)
2

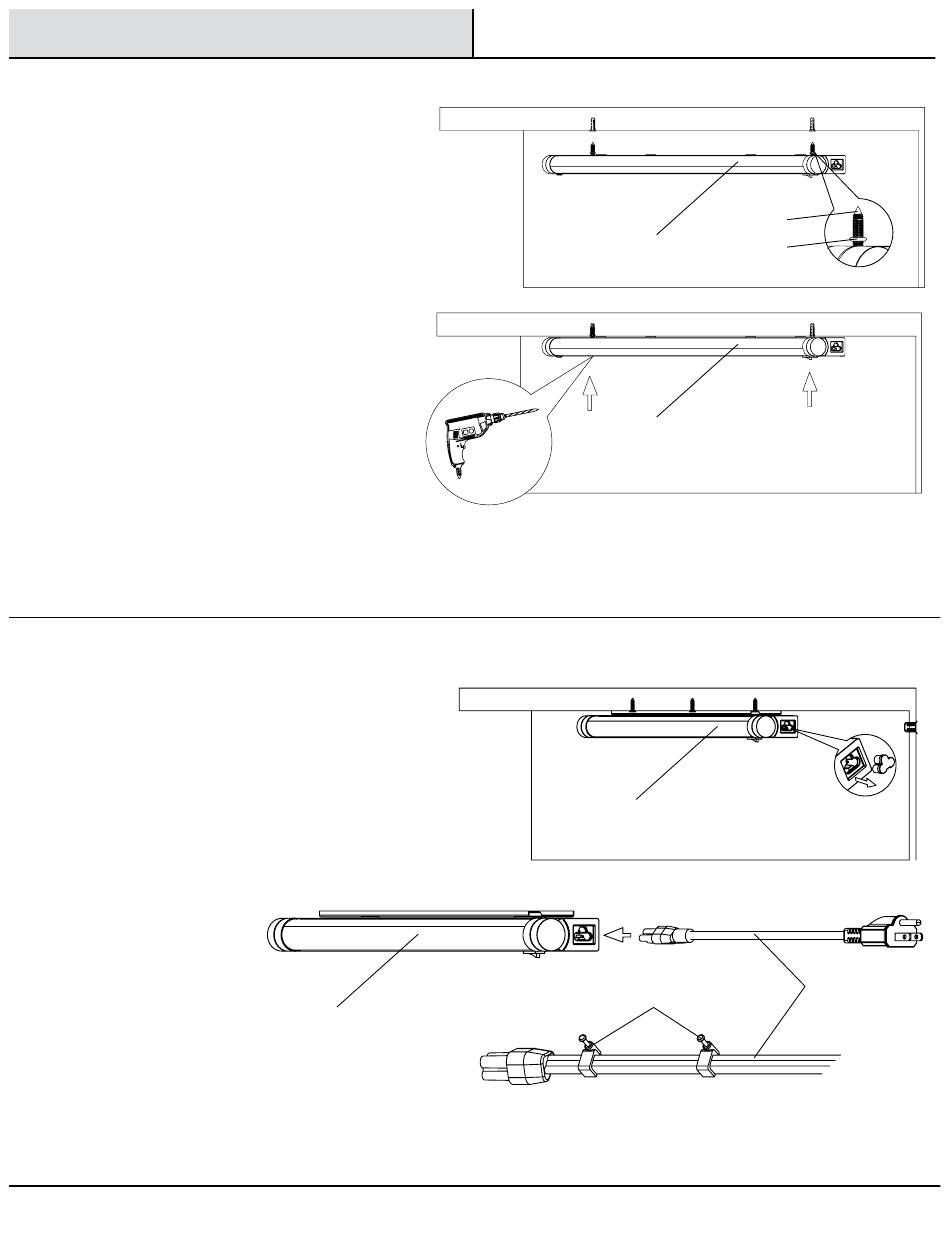

Installing by mounting the
fixture directly
□ Identify and mark the desired location for the
LED fixture.
□ If attaching to drywall instead of to the
underside of a cabinet, drill pilot holes and tap
in drywall anchors (EE) at the screw positions.
□ Place a long mounting screw (DD) into the
hole on one end of the LED under cabinet light
fixture (A) and attach an O-ring (BB) to the
end of the mounting screw to hold it in place.
Repeat with the second long mounting screw
(DD) on the other end of the under cabinet light
fixture (A).
□ Hold the under cabinet light fixture (A) up to
the cabinet, matching the screw positions to
the locations marked on the underside of the
cabinet.
□ Use a power tool to tighten the mounting screw
(DD) on each end of the under cabinet light
fixture (A).

Power supply Options

3
Connecting the power cord
□ Remove the end cap on the "power in" end of the
under cabinet light fixture (A).
□ Connect the power cord (GG) to the installed light under
cabinet light fixture (A).
□ Use wire clips (CC) to affix the power cord (GG) to the
underside of the cabinet, if desired.
A
5
A
A
A
CC
Please contact 1-855-384-7754 for further assistance.
DD
BB
GG
www.ETiSSL.com
