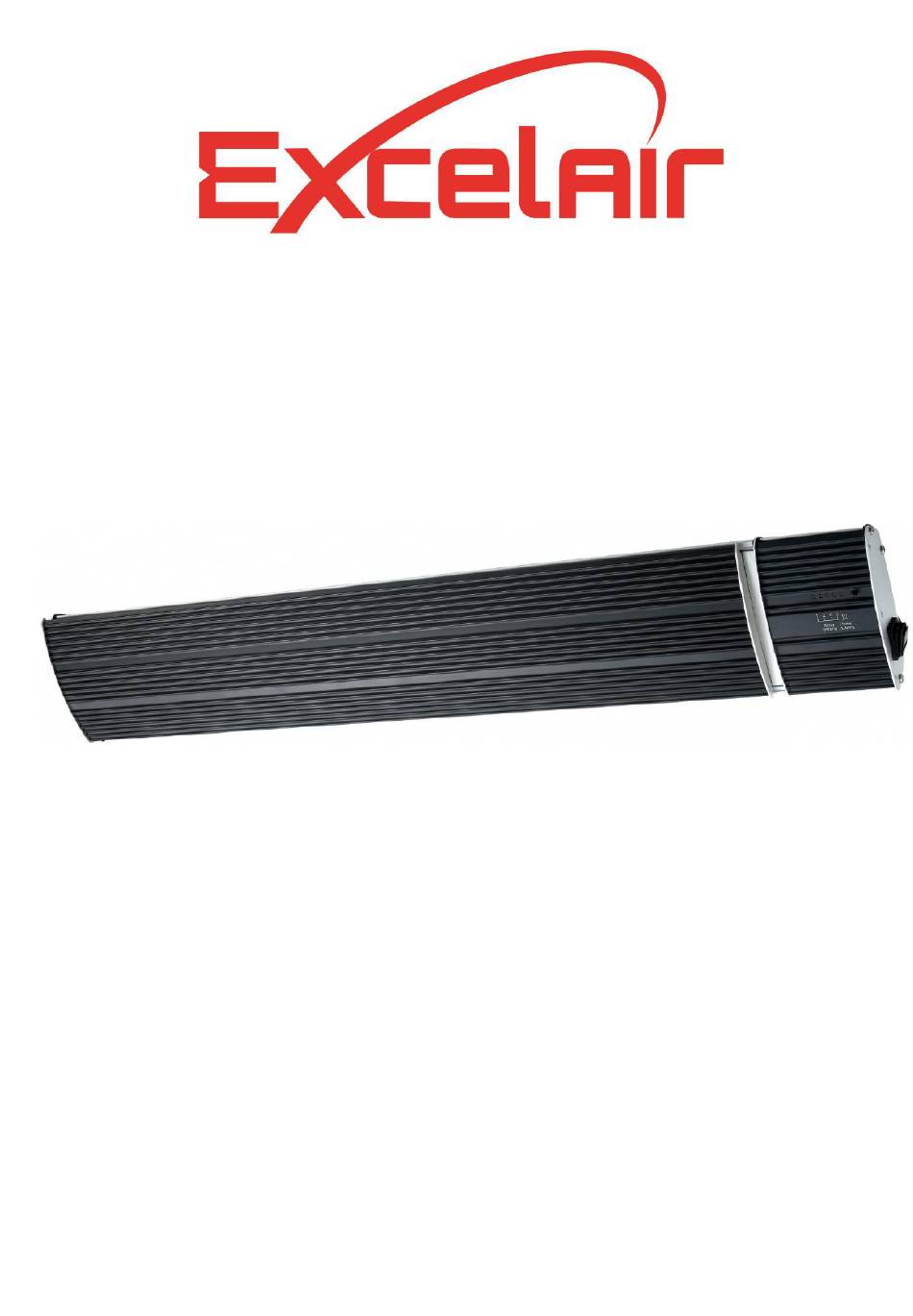

Infrared Outdoor Heater
Instruction Manual
Model: EOHA24R
IMPORTANT INFORMATION
Please carefully read the Operation Manual before using the infrared heater.
This Operation Manual contains the important information on your safety, as well
as some recommendations on proper use of the appliance and its maintenance.
Advertisement
Table of Contents
Related Manuals for Excelair EOHA24R
Summary of Contents for Excelair EOHA24R
- Page 1 Infrared Outdoor Heater Instruction Manual Model: EOHA24R IMPORTANT INFORMATION Please carefully read the Operation Manual before using the infrared heater. This Operation Manual contains the important information on your safety, as well as some recommendations on proper use of the appliance and its maintenance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONTENTS PAGE 2 SAFETY INSTRUCTIONS PAGE 3-4 MAIN FEATURES PAGE 5 TECHNICAL SPECIFICATIONS PAGE 5 HEATING AREA PAGE 6 BEFORE OPERATION PAGE 7 HEATING COMPONENTS PAGE 8 OPERATING THE HEATER PAGE 9-12 INSTALLATION PAGE 13-17 MAINTENANCE PAGE 18 WIRING DIAGRAM PAGE 18 TROUBLESHOOTING... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS During use of the infrared heater, it is necessary to observe some precautions. Improper operation with disregard of precautions may result in infliction of harm to health of the user and other people, as well as in infliction of damage to their property. ... - Page 4 The installation must be equipped with a standard electrical power point with a break contact distance of at least 3mm. The standard power point must be installed by a licensed electrician. If the heater is to be mounted on an incline (eg. Sloping or angled ceiling), ensure the electrical connection is located at that lowest point of the heater.
-
Page 5: Main Features
① heater radiant surface ② heater operation indicators ③ brackets for wall mounting ④ power cords and plug TECHNICAL SPECIFICATIONS EOHA24R MODEL NAME 240V~ 50Hz Voltage Rated power (W) 2400 Ideal Mounting height (M) 2.2 meters Electric protection class IP65... -
Page 6: Heating Area
HEATING AREA The radiator panel heater produces radiant heat which heats objects rather than the air. Therefore, it is imperative that objects to be heated (i.e. People), are within the direct radiant footprint of the heater. The below diagrams show the approximate heating area based on an outdoor enclosed environment. -
Page 7: Before Operation
BEFORE OPERATION WARNING! Slight crackles may be heard during the heating or cooling period. This is normal operational noise. NOTE: Discoloration of paint on the heater body wall directed to the ceiling during operation is not a defect. Changing of color for heating plates is not defect. ... -
Page 8: Heating Components
HEATER COMPONENTS HEAT STATUS LAMP TIMER LAMPS REMOTE RECEIVER Page | 8... -
Page 9: Operating The Heater
OPERATION INSTRUCTIONS 1. Plug in the device, and press the power switch to the position of I : ON, the device will sound 1 beep and the heat status lamp will turn blue. The device is now in standby mode and won’t emit any heat. 2. - Page 10 3. When the device is in heating mode or in stand-by mode, Point the remote control directly to the receiver and press the button “low”, the device will sound 1 beep and the device will start to heat in lower power mode (33% of the rated power).
- Page 11 TIMER FUNCTION: To activate the delay-off timer, point the remote control directly to the receiver and press the “1hr” button and the 1 timer lamp will turn white. The unit will be powered off after 1 hour has finished and return to standby mode. The heat status lamp will return to a Blue colour.
- Page 12 To set the delay off timer to 3hrs, press the button “1” and “2” separately and both timer lights will turn white as below- The timer can also be set to shut off at 5hr, 7hr and all the way up to 13hrs by pressing the necessary buttons to create the time required.
-
Page 13: Installation
INSTALLATION Before installation, read the manual carefully. The heater must be installed in accordance with the manufacturer’s installation instructions This heater comes with a pair of stainless steel adjustable angle mounting brackets. The adjustable angle enables the heater to be installed on vertical, horizontal and inclined surfaces. - Page 14 CLEARANCES Minimum clearances when mounting the heater on A VERTICAL WALL Minimum clearances when mounting the heater parallel with a CIELING Minimum clearances when mounting the heater at an angle to the CIELING Page | 14...
- Page 15 INSTALLATION PROCESS WARNING! Mounting of the infrared heater and its connection to the electric mains should be carried out only by qualified specialists according to the Electrical Installation Regulations and Power System Safety Standards 1. Open the box and carefully take the heater out. 2.
- Page 16 5. Install two brackets on the wall or ceiling with the following minimum recommended bracket distance “B” (B= 990±50) 6. Set the adjustable angle mounting brackets to desired angle and fasten brackets with a spanner. For wall mounted installation, the available mount angles are restricted to 15°, 30° and 45°...
- Page 17 NOTE: Depending on material and design of ceiling structural elements, the heater must be secured with the correct fasteners. The weight of the heater is up to 7.4Kg, the installation location must be able to hold 5 times the weight of the heater. CONNECTION TO ELECTRIC MAINS •...
-
Page 18: Maintenance
MAINTENANCE • Any maintenance should only be carried out by a qualified electrician. • During operation, it is necessary to periodically (once a year) check the electric cable contacts and terminal connectors. • If the body becomes dirty, wipe off dust with a towel, and the radiating boards should be wiped when they are cool with a damp soft rag. -
Page 19: Troubleshooting
TROUBLESHOOTING Possible malfunctions are given in Table below. SYMPTOM CAUSE Will not heat / No operation Check that power is connected and switched on indicator This is caused by oil or dust left over from the manufacturing Heater smells when first used. process and will stop after a short time Faint smell for short periods after This is normal and should stop after a short time... -
Page 20: Warranty Information
WARRANTY This appliance is guaranteed for a period of 24 months. If during this period the appliance fails to work due to parts or manufacture fault, please return to place of purchase for a replacement. For warranty enquiries please contact – GBI Sales Pty Ltd , P | 1300 710 860 E | sales@gbi.com.au Page | 20...
