Digital Acoustics IP7-FX Getting Started Manual

Introduction

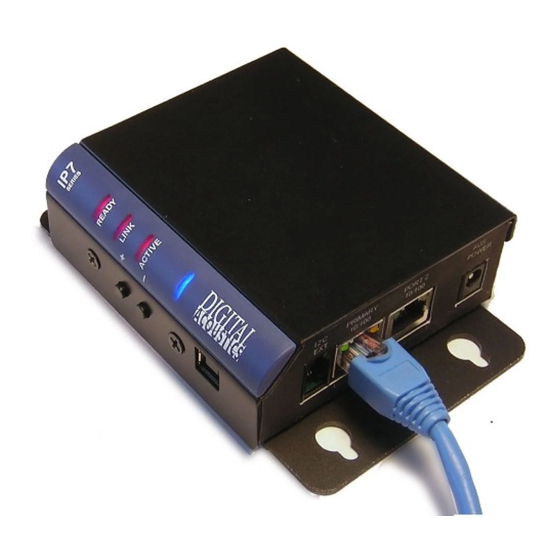

The IP7-FX is a PoE powered (802.3af) IP Audio Module that can be configured as a TalkMaster client and/or as a SIP
extension for use with a SIP based phone system. This Getting Started Guide shows the basic configuration for an IP7-FX
for use with TalkMaster FOCUS. Refer to the TalkMaster FOCUS Administrator Reference Manual for additional
configuration options and information.
The module can connect to an analog audio device such as a call station or speaker and provides the following
features
•
Ethernet 10/100 Network Connector
•
Port 2 10/100 available to connect another device to the network
•
Eight-watt amplifier
•
Microphone or Line In
•
Speaker or Line Out
•
Two input signals (Call and Sensor)
•
Normally Open or Normally Closed Dry Contact Relay (250 VAC /
30VDC @ 60W / 1500 VAC Isolation)
•
PoE (802.3af), 12VDC or 24VDC
•
User configurable Full or Half duplex operation
•
Standard 35MM DIN Rail Mount or optional Surface Mount Plate
(included)
Replacing an IP7-ST/STx, SS8/SE8, FD or SS20
If the IP7-FX is being used to replace an existing IP7-ST/STX, IP7-SS8/SE8, IP7-FD or an IP7-SS20, please note the
following:
•
The J3-7 (Case) connector on older models was an extra ground. If replacing an older model with an IP7-
FX, any wire connected to J3-7 should be moved to J3-6.
•
If replacing an IP7-ST/STx, make sure the internal ST-MIC switch (located on the DIN clip side) is set in
the same position. The IP7-FX does not support the Aiphone IE/ IF series call station. An IP7-ST/STx
must be used
•
If the older IP7's J2-6 (
speaker, use the IP7-FX's J2-3 (Line Out) and J2-4 (GND) instead
•
If replacing an IP7-SE8 / IP7-MSR-BRD with an IP7-FX, the IP7-MSR-BRD can be eliminated by changing
the IP7-FX's ST-MIC internal switch to the ST position
•
Other than the exceptions noted above, the J1, J2, J3, and network can be moved over to the IP7-FX
IP7-FX
TalkMaster Getting Started Guide
8Ω
SPKR + SPKR
) and J2-7 (
Page 1 of 4
8Ω
-
) is connected to an amplifier or amplified
