Rack-Mount Installation for JPX
750/1000/1500/2000VA(optional) and 3000VA can be installed in 19"
racks. The UPS and external battery enclosure need 2U of valuable
rack space. Use the following procedure to install UPS in a rack.
750/1000VA (optional)

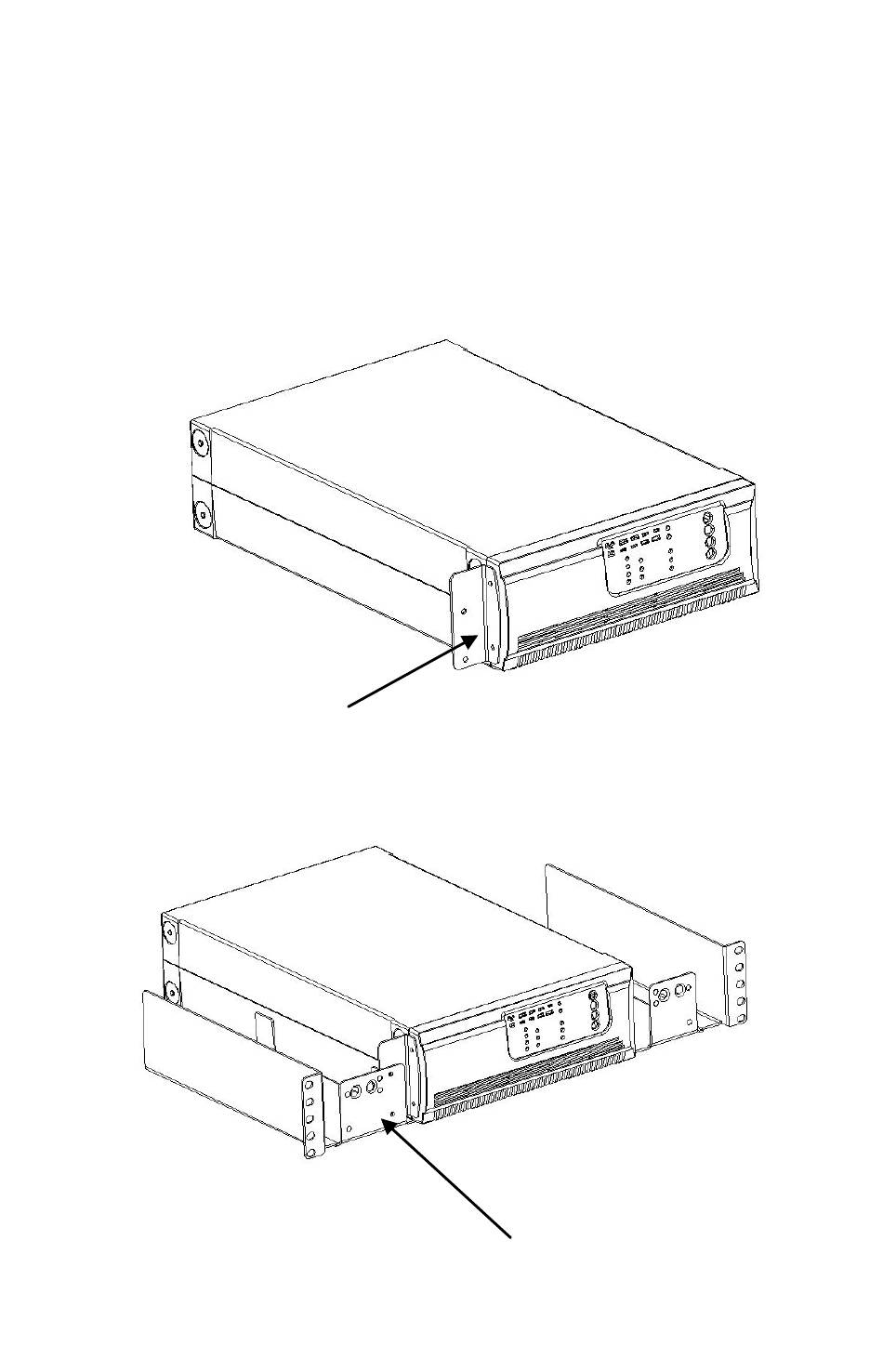

1. Align the mounting ears with screw holes on the side of the UPS.
2. Install rack-mounting rails with the screws provided, tightened up
into rack enclosure.
Advertisement
Table of Contents
Related Manuals for DirectUPS JPX Series
Summary of Contents for DirectUPS JPX Series
- Page 1 Rack-Mount Installation for JPX 750/1000/1500/2000VA(optional) and 3000VA can be installed in 19” racks. The UPS and external battery enclosure need 2U of valuable rack space. Use the following procedure to install UPS in a rack. 750/1000VA (optional) 1. Align the mounting ears with screw holes on the side of the UPS. 2.
- Page 2 INSTALLATION 3. Insert UPS into the slide assemblies and lock it in the rack enclosure. 4. Add up the front panels for both sides. The load can be connected.
- Page 3 INSTALLATION 1500/2000VA (optional) HOST and EBM integrated into a rack form 1. Place the UPS on a flat and in a clean place that the front side of the UPS is facing to you. 2. Disconnect the cable from the Host and EBM. HOST and the EBM are disconnected 3.
- Page 4 INSTALLATION 4. Pull two covers toward the direction shown as below. 5. Align the mounting bracket with the screw holes on the each side of Host and EBM and secure with the supplied screws. 6. Reinstall the Host and EBM cover.
- Page 5 INSTALLATION Tighten all screws up to front panels and set up rack-mount. Front side is completed. 8. Align two small mounting brackets at the rear of Host and EBM and secure with the supplied screws. Install Output receptacles at the rear panel of the Host. 9.
- Page 6 INSTALLATION EBM and EBM integrated in a rack form 3000VA Install the 3000VA series into 19” rack as shown below. 9. Turn on the UPS and connect the load. 10. After installing the UPS into rack, the load may be connected. Make sure the load equipment is turned off, then plug all loads into the output receptacle properly protected by a circuit breaker of fuse in accordance with national and local electrical codes.
