Summary of Contents for DirectUPS vesta pro 1000 vac
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS –This manual contains important instructions for model Vesta Pro 1000/1400/2000 VAC that should followed during installation maintenance of the UPS and batteries. Safety – CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to ... - Page 4 Unplug the UPS prior to cleaning and do not use liquid or spray detergent. Do not dispose of battery or batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released ...
-
Page 5: System Description

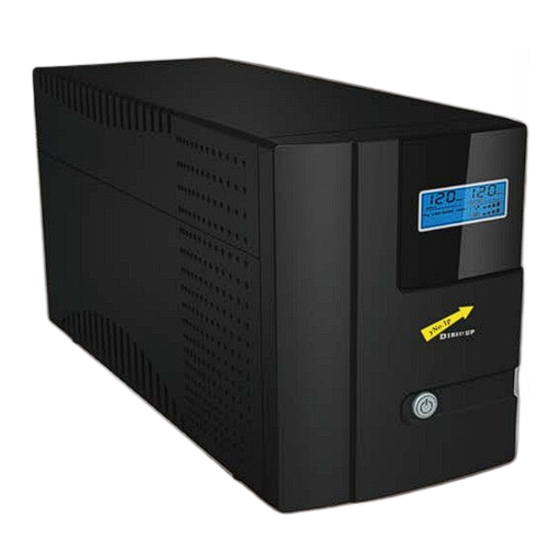

System Description Front Panel— 1. LCD Back-Light 2. Power “ON/OFF” Switch Back Panel— 1. Communication 4. Modem/Phone Line Surge Protection Port 5. Circuit Breaker 2. Cooling Fan 6. AC Input 3. AC Output... - Page 6 Installation and Operation Installing the UPS is as easy as following the steps shown. Be aware of the Power Switch must be kept in the “ON” position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure. 1.
- Page 7 Computer Connection Connect one computer-related device into each of the power receptacles supplied on the back of the UPS (maximum of three devices). 5. Modem/Phoneline Connection Plug incoming internet line into the “In” socket at the back of the UPS. Use one more Internet line cable and plug one end of the Internet line cable to the “Out”...
- Page 8 6. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again (When Swith ON，The LED lighting.). 7. LCD Display Specification The LED will always turns on when UPS works, including in off charging mode and fault mode.
- Page 9 b. When in AVR mode, it will display as below. And the mark will flicker every 1second. c. When in battery mode, it will display as below. And the mark will flicker every 1second. Note: If I/P-V<20V，input voltage will display “000” d.
- Page 10 character and the reason of fault only.
- Page 11 6).Load level definition: Load LEVEL Load bar Indication 0%~25% 25%~50% 50%~75% 75%~100% 7).Battery capacity definition: Battery LEVEL Battery bar Indication Battery voltage≤11V 11V≤Battery voltage≤11.5V 11.5V≤Battery voltage≤12.5V Battery voltage≥12.5V 8).When over load, the mark will flicker every 1second. 9).When battery low, the mark will flicker every 1second.
- Page 12 Software Installation -- WinPower -- WinPower is a brand new UPS monitoring software, which provides user-friendly interface to monitor and control your UPS. This unique software provides safely auto shutdown for multi-computer systems while power failure. With this software, users can monitor and control any UPS on the same LAN no matter how far from the UPSs Installation procedure: Go to the website:...
-
Page 13: Troubleshooting
Trouble Shooting Use the table below to solve minor UPS installation or operation problems. If any abnormal situations occur that are not listed above,please call service people immediately. Symptom Possible Cause Remedy No LED display on 1. Missing battery. 1. Charge battery up to 10 the front panel. -
Page 14: Specification
Specification MODEL Vesta Pro 1000 Vesta Pro 1400 Vesta Pro 2000 CAPACITY VA/W 1000VA/600W 1400VA/840W 2000VA/1200W INPUT Voltage 120VAC Voltage Range 89-145VAC OUTPUT Voltage 120VAC Voltage ±10% Regulation (Battery Mode) Frequency 50Hz or 60Hz Frequency Regulation +/-1 Hz (Battery Mode) Stepped Sine-wave Output Waveform Battery Type and...
