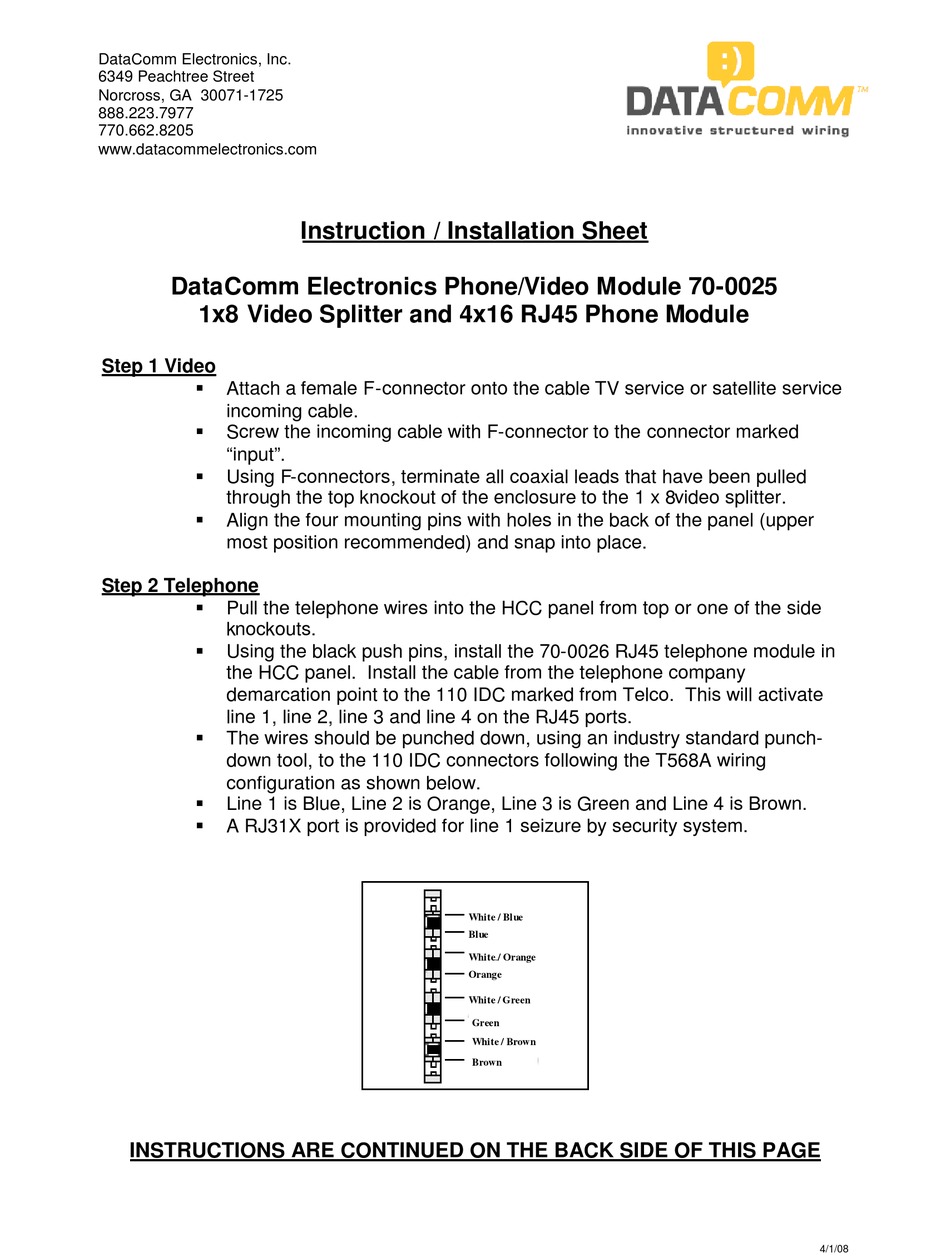

DataComm 70-0025 Instruction/Installation Sheet

DataComm Electronics, Inc.
6349 Peachtree Street
Norcross, GA 30071-1725
888.223.7977
770.662.8205
www.datacommelectronics.com
DataComm Electronics Phone/Video Module 70-0025
1x8 Video Splitter and 4x16 RJ45 Phone Module
Step 1 Video
 Attach a female F-connector onto the cable TV service or satellite service
incoming cable.
 Screw the incoming cable with F-connector to the connector marked
"input".
 Using F-connectors, terminate all coaxial leads that have been pulled
through the top knockout of the enclosure to the 1 x 8video splitter.
 Align the four mounting pins with holes in the back of the panel (upper
most position recommended) and snap into place.
Step 2 Telephone
 Pull the telephone wires into the HCC panel from top or one of the side
knockouts.
 Using the black push pins, install the 70-0026 RJ45 telephone module in
the HCC panel. Install the cable from the telephone company
demarcation point to the 110 IDC marked from Telco. This will activate
line 1, line 2, line 3 and line 4 on the RJ45 ports.
 The wires should be punched down, using an industry standard punch-
down tool, to the 110 IDC connectors following the T568A wiring
configuration as shown below.
 Line 1 is Blue, Line 2 is Orange, Line 3 is Green and Line 4 is Brown.
 A RJ31X port is provided for line 1 seizure by security system.
INSTRUCTIONS ARE CONTINUED ON THE BACK SIDE OF THIS PAGE
Instruction / Installation Sheet
White / Blue
Blue
White / Orange
Orange
White / Green
Green
White / Brown
Brown
4/1/08
