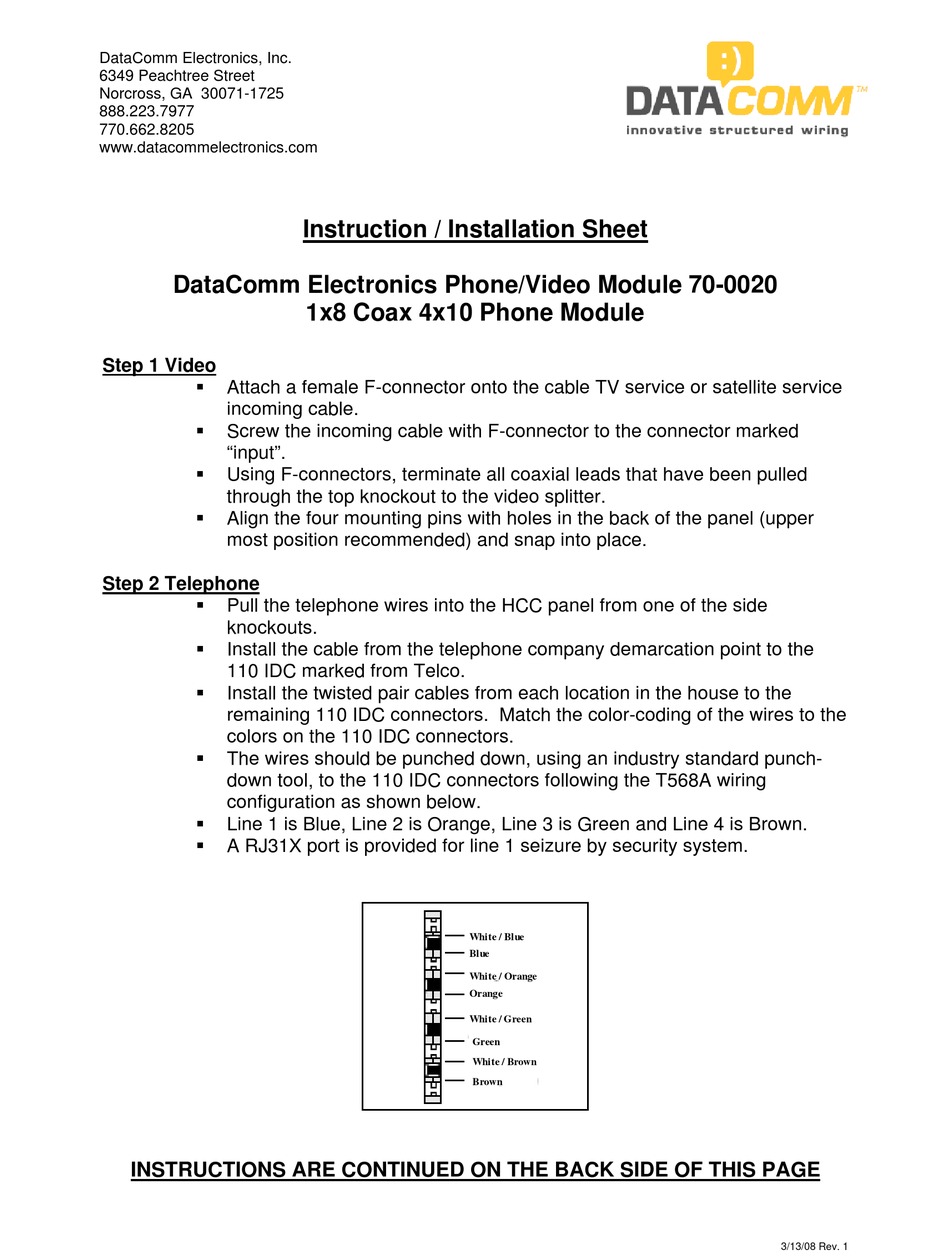

DataComm 70-0020 Instruction And Installation Sheet

DataComm Electronics, Inc.
6349 Peachtree Street
Norcross, GA 30071-1725
888.223.7977
770.662.8205
www.datacommelectronics.com
DataComm Electronics Phone/Video Module 70-0020
Step 1 Video

Attach a female F-connector onto the cable TV service or satellite service
incoming cable.

Screw the incoming cable with F-connector to the connector marked
"input".

Using F-connectors, terminate all coaxial leads that have been pulled
through the top knockout to the video splitter.

Align the four mounting pins with holes in the back of the panel (upper
most position recommended) and snap into place.
Step 2 Telephone

Pull the telephone wires into the HCC panel from one of the side
knockouts.

Install the cable from the telephone company demarcation point to the
110 IDC marked from Telco.

Install the twisted pair cables from each location in the house to the
remaining 110 IDC connectors. Match the color-coding of the wires to the
colors on the 110 IDC connectors.

The wires should be punched down, using an industry standard punch-
down tool, to the 110 IDC connectors following the T568A wiring
configuration as shown below.

Line 1 is Blue, Line 2 is Orange, Line 3 is Green and Line 4 is Brown.

A RJ31X port is provided for line 1 seizure by security system.
INSTRUCTIONS ARE CONTINUED ON THE BACK SIDE OF THIS PAGE
Instruction / Installation Sheet
1x8 Coax 4x10 Phone Module
White / Blue
Blue
White / Orange
Orange
White / Green
Green
White / Brown
Brown
3/13/08 Rev. 1
