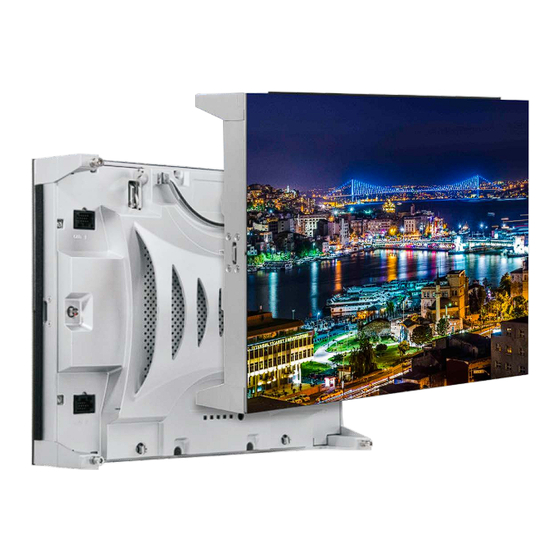

- Page 1 Leyard TVH Series LED Video Wall User Manual ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 2 When you purchase a Leyard product, you get more than a display, you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Leyard product, please visit http://www.planar.com/support/ ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 3: Table Of Contents
Dimensions & Diagrams of Cabinet TV Player Controller TV Player Composition Installation – Frame Installation – LED Cabinet Installation – Lease Installation – Seated Installation – Mounted Connections Maintenance Troubleshooting Specifications ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 4: Introduction
Standardized Interface HDMI is adopted to improve the universal adaptation of products. High Integration of Hardware The control board and drive board can be integrated without external LED controller. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 5: Safety Information
Safety Information Before using your Leyard TVH Series LED Video Wall, please read this manual thoroughly to help protect against damage to property and to ensure personal safety. Be sure to observe the instructions For your safety, be sure to observe ALL the warnings detailed in this manual. -
Page 6: Safety Precautions And Instructions
12. Refer all servicing to qualified service personnel. Servicing is required when any Leyard TVH Series display has been damaged in any way, such as when the AC power cord or plug is damaged, liquid has been spilled or objects have fallen into a product, the products have been exposed to rain or moisture, do not operate normally or have been dropped. - Page 7 Recommended Usage In order to get the most from your Leyard TVH Series display, use the following recommended guidelines to optimize the display. Leyard TVH Series displays are designed for fixed installation, indoor use only. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 8: European Union Disposal Instructions
------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 9: Cabinet Appearance
Cabinet Appearance Front and Side View Single Power Supply – Fixed | Double Power Supply - Fixed Single Power Supply – Rental | Double Power Supply – Rental ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 10 Connection Details Details Cabinet Power Details ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 11: Dimensions & Diagrams Of Cabinet
Comparison of TV Series and TVH Series Cabinet Line Drawing & Dimensions ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 12: Tv Player Controller
Below is input/output resolution datasheet: HDMI Video Input Resolution LVDS Video Input Resolution 1024x768 1024x768 1366x768 1310x768 1280x800 1260x800 1280x1024 970x1024 1920x1080 920x1080 1920x1200 820x1200 Other resolution, clock ≦165M Height ≦1440 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 13: Tv Player Composition
LED a: 3D lock 5. HDMI server LED b: FPGA 6. RS232 control part LED c: HDMI 7. IP control port LED d: MCU 8. 5V power supply LED e: Power ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 14: Installation - Frame
Frame Main body frame: border and pole of frame should choose different size according to the height of screen as shown below: Border Side Border Fixed Box Bottom Pole Border ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 15 Screen body associated construction applies channel steel, I-steel or angle iron to wield (reference): both seat installed and mounted can be used. This structure can only maintain from front and behind. If it is embedded structure, then swinging strut structure should be applied. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 16 Installation Features and Demands The Leyard TVH Series screen is a sophisticated display device. Consideration should be given to the site’s environmental conditions including load bearing of indoor installation location, spatial distribution and so on. The method of installing the frame in this program has the following features: •...
- Page 17 8 mm hexagon wrench, cross screwdriver, vice, antistatic gloves. Truss Root Fixed As shown in the figure, fix truss in installation location and root fixed it on load point ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 18 Joint aluminum alloys with different length to LED frame according to design demands using specialized fixation connecting piece, Aluminum alloy frame fixed with truss column by hoop ,as shown above figure. Step 1(frame more than 6 meters should apply material abutting joint) ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 19 Tank linear M6x10 jackscrew Lock jackscrew connecting plate Step 2 Fix Corners ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 20 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 21 Features: Placed from the head of material, high joint strength can be used to heavy load connection. Material: Galvanized Steel Features: Placed from the head of T-slot or material can make up ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 22 Step 3 Fix Pole Spacing of poles is 800mm on center More than 2.4 meter pole connecting piece Less than 2.4 meters pole connecting piece ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 23 Connecting pole and aluminum alloy frame needs connecting pieces consisting of M4*12 pan head screw, hexagon socket head screw and square nut block. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 24 Step 4 Fix Frame Connect every contact point of frame and truss using card holder, as shown below the red part: ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 25: Installation - Led Cabinet
Finally, connect the power and signal line; before lighting, please check the ground connection and break-over condition, check the connection mode; after making sure of the safe debugging operation, you can operate it with power. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 26 M5*16 bolt should be used between fixed plate and cabinet M8 bolt and square nut should be used to fixed plate and profiles Apply M5*16 bolt Apply M5*16 bolt to fix ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 27 Fixed mode of middle cabinets Apply M5*16 bolt Fix border that not connect with I-shaped profiles using connecting piece of cabinet M5*16 bolt ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 28 Fixed mode of top cabinets M5*16 bolt Fix top border of top line cabinet with connecting piece of upper and lower cabinet M5*16 bolt ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 29 Installation of the last row of cabinets The part connect with profiles apply M5*60 bolt Apply M5*60 bolt Apply M5*70 bolt at the lowest line Apply M5*16 bolt Apply M5*70 bolt and M5 nut ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 30 Fixed mode of middle cabinet Apply M5*60 bolt Border apply M5*60 bolt and M5 nut M5*60 bolt M5*60 bolt ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 31 Apply M5*60 bolt and M5 nut Apply M5*16 bolt Apply M5*16 bolt If there are any vertical gaps between cabinets, specialized fixation clamping part can be used to lock them, as shown below: ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 32: Installation - Lease
Lock the locking device of lease cabinets using special tools and they should be used on the middle of left side and bottom of cabinet back. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... -
Page 33: Installation - Seated
Specialized locking device, slotted point screwdriver also can be used here. Seated Installation Leyard TVH Series seated structure consists by u-shaped frame, beam and frame carrier. Beam of seated installation and hanging beam of mounted installation can be in common use. It is very convenient and can save cost and improve work efficiency. - Page 34 Double Lifting Socket Integrated Beam Three Times Lifting Socket Integrated Beam U-Shaped Frame ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 35 Double Ground Frame Triple Ground Frame Quadruple Frame Carrier Triple Frame Carrier ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 36 One: Level the chassis beam: Put u-shaped frame on the ground, adjust fang bolt to level Two: Install Beam: Install double lifting socket integrated on u-shaped beam. There are there locating pins on u-shaped beam, insert into two hole locations on ground frame. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 37 Connect several level foundation beams using hexagonal screw locking device to extend the length of the chassis. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 38 Three: Installation of Cabinet: Start from left of display screen back successively. Lock cabinet foundation and beam; lock between cabinets. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 39 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 40 Four: Installation of frame Carrier: The Frame carrier needs to be installed after installing the second line of cabinets. Bottom of frame carrier should connect with load beam of chassis. The connection of frame carriers can be extended the height of frame carrier. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 41 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 42: Installation - Mounted
Mounted Installation Mounted structure of TV has double hanging bracket and three times hanging bracket. Dimension of double hanging bracket: 800*120*80mm (L*W*T). Dimensions of the triple hanging bracket: 1200*120*80mm (L*W*T). ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 43 One: Fix hanging brackets with connection plate when using several hanging brackets. Two: Install cabinets from right to left on the back. The first line cabinets need to be connected with hanging bracket using presser foot metal parts. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 44 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 45: Connections
Screen Electrical Connection There are signal cables and power supply cables for screen electrical connection. Power Cable Signal Cable – Vertical Application Signal Cable – Horizontal Application ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 46 Typical system diagram, the video processor in this diagram need to choose different brands and number of input windows and output windows according to users’ demands. Commonly use LED control management software and video processor software to control computer. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 47 TV Player controller in the right has circuits entering in it from the upper import. Each cabinet has dual AC power supply. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 48: Maintenance
7. LVDS Signal Output 2. Aluminum Alloy Back Cover 5. AC Power Loop – Out 8. LVDS Signal Output 3. Metal Handle 6. LVDS Signal Input 9. LVDS Signal Input ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 49 Instruction of Indicator Lights on the Back of Leyard TVH Series Products Each Leyard TVH Series product has five LED indicator lights in all. Seen from the rear view of the cabinet from left to right, they are FPGA2, FPGA1, MCU, POWER1 and POWER2 1.
- Page 50 If POWER1 lights; the direct-current power supply of J15 works. b. If POWER2 lights; the direct-current power supply of J16 works. A: Driver Board B. Switching Power Supply C. Input/Output Power Socket ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 51 Circuit Back-Up Cabinet Driver Board and Power Supply Removed ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 52 LED Module ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 53: Troubleshooting
5. Check video signal of display is good. Check signal output of processor is not black mode. Check signal input of DVI, VIDEO and RGB are not black. Check if there is image on Synchronous video monitor. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 54 LED module is replaced, the cabinet will read the calibration data of the new lamp panel during first start-up and therefore, the startup period is longer than usual; please be patient. ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
-
Page 55: Specifications
Electrical 30 ；250 W/m2) Power Supply AC 100~240V(50Hz&60Hz) Driving Mode Constant current drive Processing Reframe Rate(Hz) 50&60 Refresh Rate(Hz) 2,100 Lifetime(Half Brightness) 50,000hrs Operational Operating Temperature Range(℃) -10 — 40 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016... - Page 56 Horizontal Viewing Angle( °) Optical Vertical Viewing Angle( °) Light Centre Distance Deviation <3% Brightness Uniformity ≥97% Color Uniformity Within ±0.003Cx,Cy Max. Contrast Ratio ≥3000:1 Max Power Consumption(W/Cabinet；W/m2) 100 ；830 ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 57 160×120 Size(mm) 400(W)×300(H)×93(D) Cabinet Area(m 0.12 Weight (rental)(kg/cabinet；kg/m 6 ；50 (6.3;53) Pixel density(pixel/m 160,000 Flatness(mm) ≤0.2 Pixel brightness calibration Pixel color calibration Optical Brightness(nits) ≥800(After Calibration) Color temperature(K) 3200—9300K adjustable ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 58 -10 — 40 Operational Storage Temperature Range(℃) -20 — 60 Operating Humidity(RH) 10 - 80%RH Storage Humidity(RH) 10 - 85%RH Notice: Above parameters are subject to change without prior notice. (Updated 14/7/2014) ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
- Page 59 No. 9 Zhenghonggi West Street, North of the Summer Palace, Haidian District, Beijing, China Postcode: 100091 Tel.: 010-62888888 Website: http://www.leyard.com ------------------------------------------------------------------------------------------------------------------------------------ Leyard TVH Series LED Video Wall User Manual 7/19/2016...
