DEAR CUSTOMER,
Congratulations on your purchase of a ENCHANTED GARDEN
home and provide many years of enjoyment. ENCHANTED GARDEN
professional quality. Ask your dealer about the many other ENCHANTED GARDEN
To ensure the maximum performance of your garden light, please read and save these instructions.
Replacement parts may be ordered by using the fixture model number and the part's name.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
• To reduce the risk of FIRE OR INJURY TO PERSONS turn off, unplug transformer and allow lamp to cool before replacing it. Lamp gets HOT quickly.
• Keep the lamp away from materials that may burn.
• WARNING - Risk of Electric Shock. Install all luminaires 10 feet (3.05 m) or more from a pool, spa or fountain.
• Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 15V, 300W per secondary.
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY.
THE DEVICE IS ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE SUITABILITY OF THE COMBINATION SHALL
BE DETERMINED BY CSA OR LOCAL INSPECTION AUTHORITIES HAVING JURISDICTION.
READ AND SAVE THESE INSTRUCTIONS
343-1858 / 343-1859
CUSTOMER SERVICE
1-888-867-6095
•
Low Voltage
GARDEN
LIGHT FIXTURE
BULB TYPE:
lighting product. Our products will help to enhance the beauty of your
®
offers a wide selection of lighting products of the highest
®
products that will help to create your own paradise.
®
customerservice@niinorthern.com
7W INCANDESCENT T5 WEDGE BASE
INST-343_1858-343_1859-0621-01-EN
Advertisement
Related Manuals for Enchanted Garden 343-1858
Summary of Contents for Enchanted Garden 343-1858
- Page 1 ENCHANTED GARDEN offers a wide selection of lighting products of the highest ® professional quality. Ask your dealer about the many other ENCHANTED GARDEN products that will help to create your own paradise. ®...

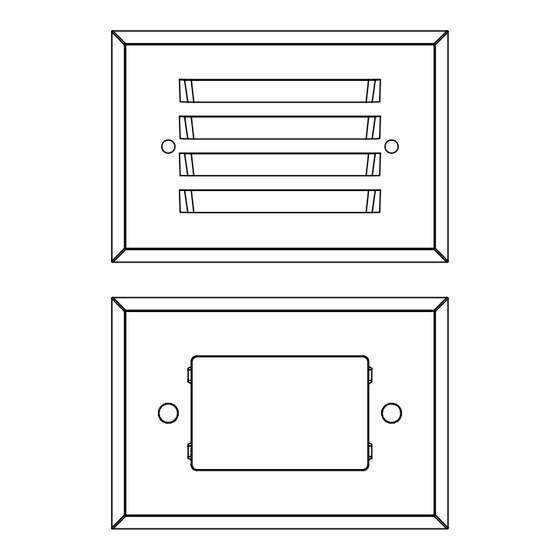

- Page 2 ” Assembly of the Light Fixture There are two ways of installing this deck light: With diffuser plate With louver plate 1.1 Cut 2 3/8” x 3 3/4” opening in mounting surface. 1.1 Cut 2 3/8” x 3 3/4” opening in mounting surface. 1.2 Secure the fixture onto the suface using the 4 screws included.
- Page 3 CAUTION Connect the fixture wire to the landscape wire BE CAREFUL! THE WIRE STABS ARE VERY SHARP! To transformer Landscape wire To light fixture Fixture wire 3.1 Unscrew and 3.2 Remove the rubber plug from 3.3 Replace the lid on the connector box and 3.4 For the last fixture only: remove the lid of the channel marked 16G or 12G and...
