Roxtec R Series Installation Instructions

Safety information
Roxtec recommends that all installations
are performed without facility operation.
Follow national regulations and installation
codes. Any action affecting the routed
service should be performed according to
manufacturer recommendations.
Components

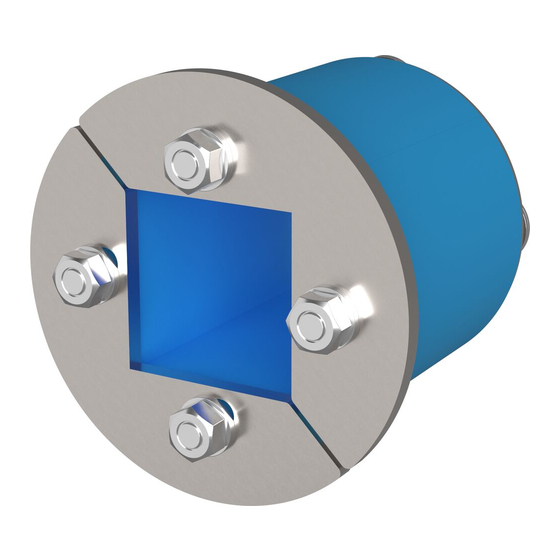

Roxtec R 50 frame
Roxtec RM sealing module
(not included)
Technical data
Frame Aperture
A Ø (mm)
R 50
R 70
R 75
R 100 100-102
R 125
R 127
R 150 150-152
R 200 200-202
* The amount of torque needed to compress the seal depends on several things, e.g cable or pipe size,
amount of used lubricant, aperture size or material in the cable sheath, etc.
∅A
Roxtec R 70/75 frame
Clearance depth
L (mm)
50-52 73
70-72 71
75-77 71
75
125-127 71
127-129 71
71
71
Roxtec R 100-200 frame
Packing space
(HxW)
30x30
40x40
40x40
60x60
80x80
80x80
90x90
120x120
L
W
Installation instructions
Roxtec R transit
Roxtec Lubricant
Tool size Approx. torque*
SW (mm)
3
10
10
10
10
10
13
13
H
(Nm)
5-6
6-7
6-7
6-7
6-7
6-7
9-11
9-11
