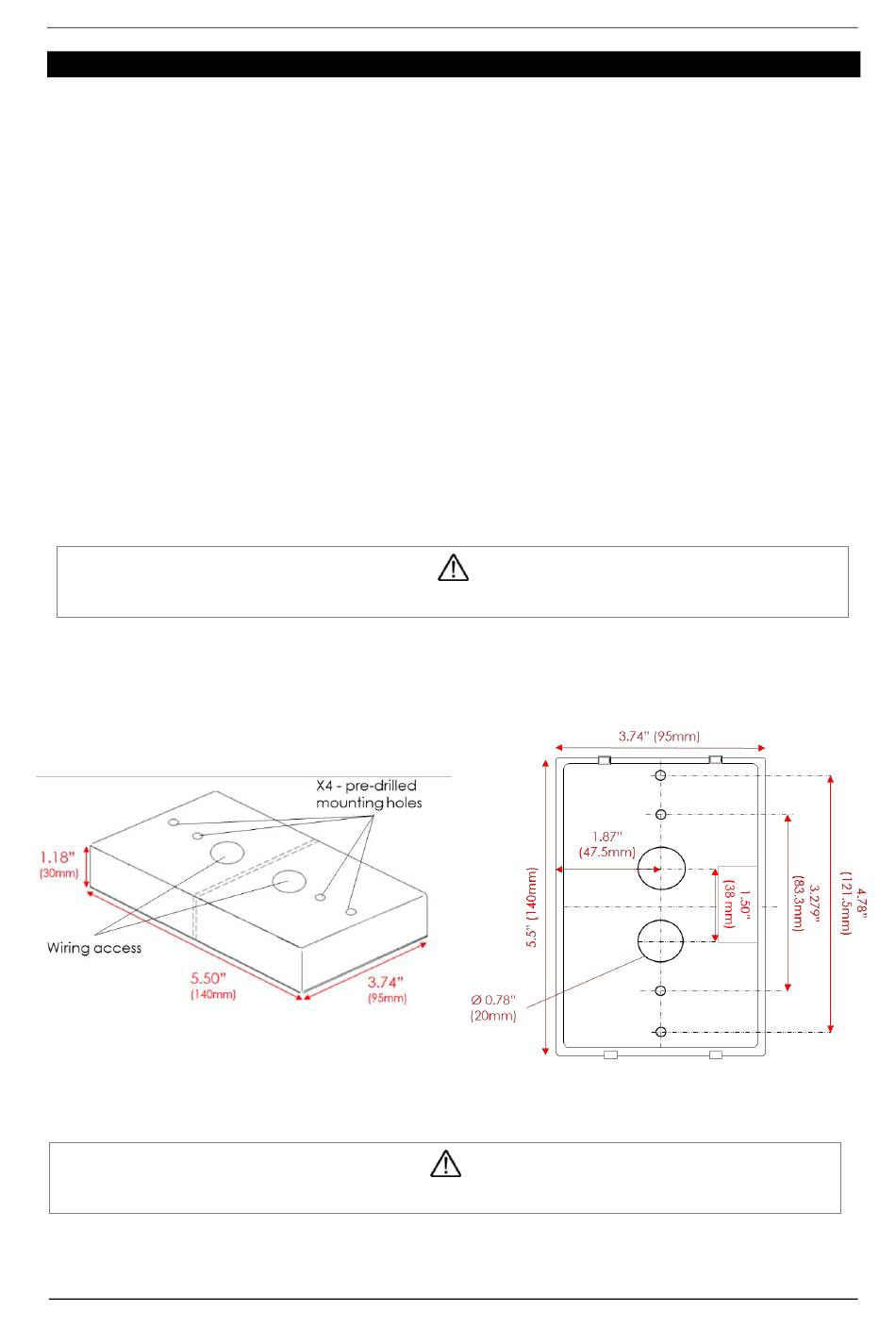

Fixing

Unpack all the parts!
This device is designed for surface mounting using 2 mounting screws (not supplied) and must
be installed by a licensed, insured contractor.
1. Carefully remove the rear cover from the unit.
2. Using the rear cover - mark the screw holes to the wall.
Ensure the wall surface is flat to prevent base distortion.
3. There are two pre-fractured areas for cable entry and a divider to separate low and
high voltage connections.
4. Placing at eye level allows for optimum monitoring of the digital display screen, or as
guide, 5 feet (1.5 meters) from ground level.
5. After executing the mounting and connections – secure the rear cover.
Be careful when creating access for cables – Damage to boards will void any warranty.
Do not attempt to remove the Circuit Board! This will void any warranty.
