QUICK START GUIDE
Setting up your AccuDate XL2e
for use with the Jolt App

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AccuDate XL2e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TransAct AccuDate XL2e

Summary of Contents for TransAct AccuDate XL2e

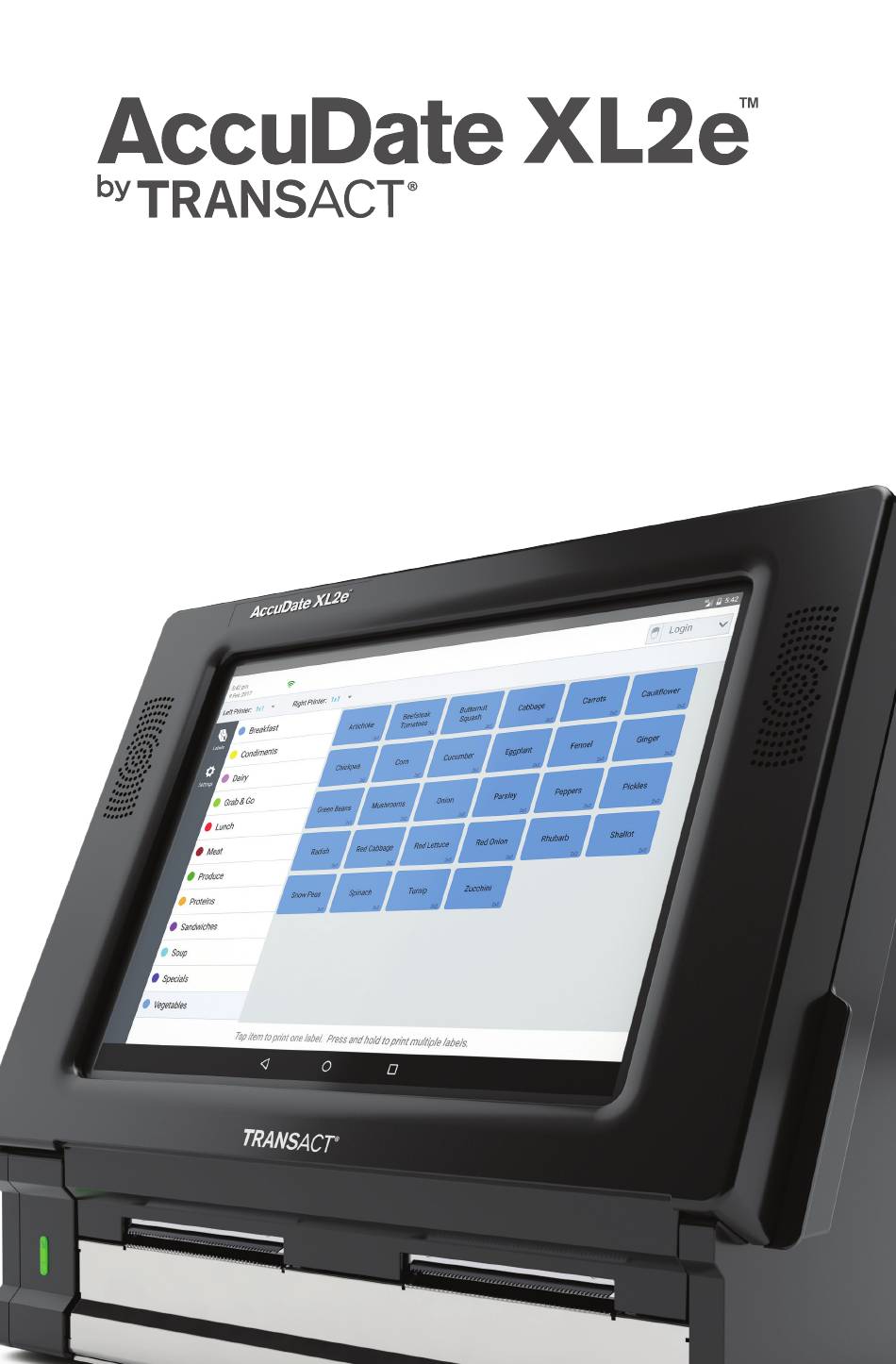

  • Page 1 QUICK START GUIDE Setting up your AccuDate XL2e for use with the Jolt App...

  • Page 2: Table Of Contents

    Setting Up Your AccuDate XL2e . . . . . . . . . . . . . . . . . .

  • Page 3: Welcome

    This guide will help you get started using the AccuDate XL2e™ Food Safety terminal, from setting up your terminal for the first time, to loading labels, to launching the Jolt for TransAct App, and more . The guide even explains how to clean your terminal for optimal performance .

  • Page 4: Package Contents Review

    PACKAGE CONTENTS Your AccuDate XL2e™ comes with the following items . If any of the items are missing, contact TransAct support . ® 1 . AccuDate XL2e Food Safety terminal �� 2 . Quick Start Guide 3 . Label Guide 4 .

  • Page 5: Setting Up Your Accudate Xl2E

    Find a spot for the AccuDate XL2e terminal that’s most convenient for your prep staff and crew members to easily access the device . Though the AccuDate XL2e is a rugged device, please be sure to place it in a spot where water and grease will not be an issue .

  • Page 6: Setting Up Your Network

    . Connect your Ethernet cable to the back of the AccuDate XL2e™ . c . Your AccuDate XL2e should now continue with the initialization process . Note: if your network requires a static IP, you can configure this by selecting the Ethernet icon at the top left of the initialize screen .
  • Page 7 Then select Static IP and enter the values provided by your IT department and choose Confirm . Once your values are confirmed you should automatically connect to the Internet and the initialization process will continue . If using Wi-Fi: a . Select the Wi-Fi icon at the top left side of the Initialize Screen . b .
  • Page 8 c . If required, enter the network Password and swipe/scroll to the bottom of this dialog and select Connect . If your IT department has hidden your network SSID, you may choose to Add the network by selecting the Add Network option at the bottom of the screen . Contact your IT department for help with your wireless network .
  • Page 9 5 . Once your AccuDate XL2e has connected to the internet it will continue with the initialization process and display the TransAct License Agreement . If you hit Accept, you will then boot to your Jolt for TransAct desktop, proceed to the next section to load labels .

  • Page 10: Transact Smartpanel

    6 . TransAct SmartPanel™ The AccuDate XL2e™ Food Safety terminal offers easy access to device settings and functions via the TransAct SmartPanel™ . Advanced functions are available when logged in as an Admin, see more info on the Admin section below .
  • Page 11 • E-SN Registration – if you have upgraded your AccuDate XL to AccuDateXL2e™, you can use this app to register your External serial number with TransAct . The External serial number is contained on a label on the back of your Food Safety terminal .

  • Page 12: Loading Labels

    The one or two label printer mechanisms and label buckets will be visible, depending on your configuration . The AccuDate XL2e uses thermal printing technology so no ink or toner is required . b . Open each printer mechanism by pushing the blue tab on the left side of each mechanism to the left .

  • Page 13: Setting Up Jolt

    SETTING UP JOLT Now you’re ready to open the Jolt for TransAct App . 1 . Select the Jolt for TransAct App icon . Jolt for TransAct App Icon 2 . You will be prompted to connect the terminal to your location using your Jolt device credentials .
  • Page 14 3 . You will then be prompted to enter a Device Name . This can be as simple as “Prep Station” or anything else you would like to call this terminal . Once you have entered a name, press Next .
  • Page 15 4 . The AccuDate XL2e™ will then need device approval from your Jolt web administrator . Contact your administrator for approval, or if you are the administrator, this can by done from any PC by logging into your Jolt account (we recommend using Google Chrome): https://app.joltup.com...

  • Page 16: Screen Calibration

    SCREEN CALIBRATION The AccuDate XL2e™ system includes a Screen Calibration App for the touch screen . If you ever have trouble with the accuracy of your touch screen, you can re- calibrate the screen by following these instructions: 1 . Access the TransAct SmartPanel™ by swiping down from the top center of the AccuDate XL2e screen .
  • Page 17 . 5 . When completed, the Calibration App will prompt you to Save the new calibration settings and exit to your AccuDate XL2e desktop . Note: If you feel you made an error when touching any of the points, Don’t press on the Save button .

  • Page 18: Ordering Labels

    . To keep your AccuDate XL2e clean, TransAct has provided a cleaning kit for you to sample . This kit includes 1 Cleaning Card Pack and 2 Cleaning Wipes .

  • Page 19: Service And Support

    1 . Visit www.transact-tech.com, then select Service & Support . 2 . Email us at support@transact-tech.com In the USA call: 1-877-748-4222 International: +1-607-257-8901 Monday–Friday 8am–8pm, Eastern Time . For questions and support regarding the use of the Jolt for TransAct App, please call 1-877-396-4112 Option 2.
  • Page 20 © 2018 TransAct Technologies Inc . TransAct is a registered trademark of TransAct Technologies Inc . AccuDate and AccuDate XL2e are trademarks of TransAct Technologies . 97-16607_RevA Jolt is a trademark of Intuiplan, LLC...
