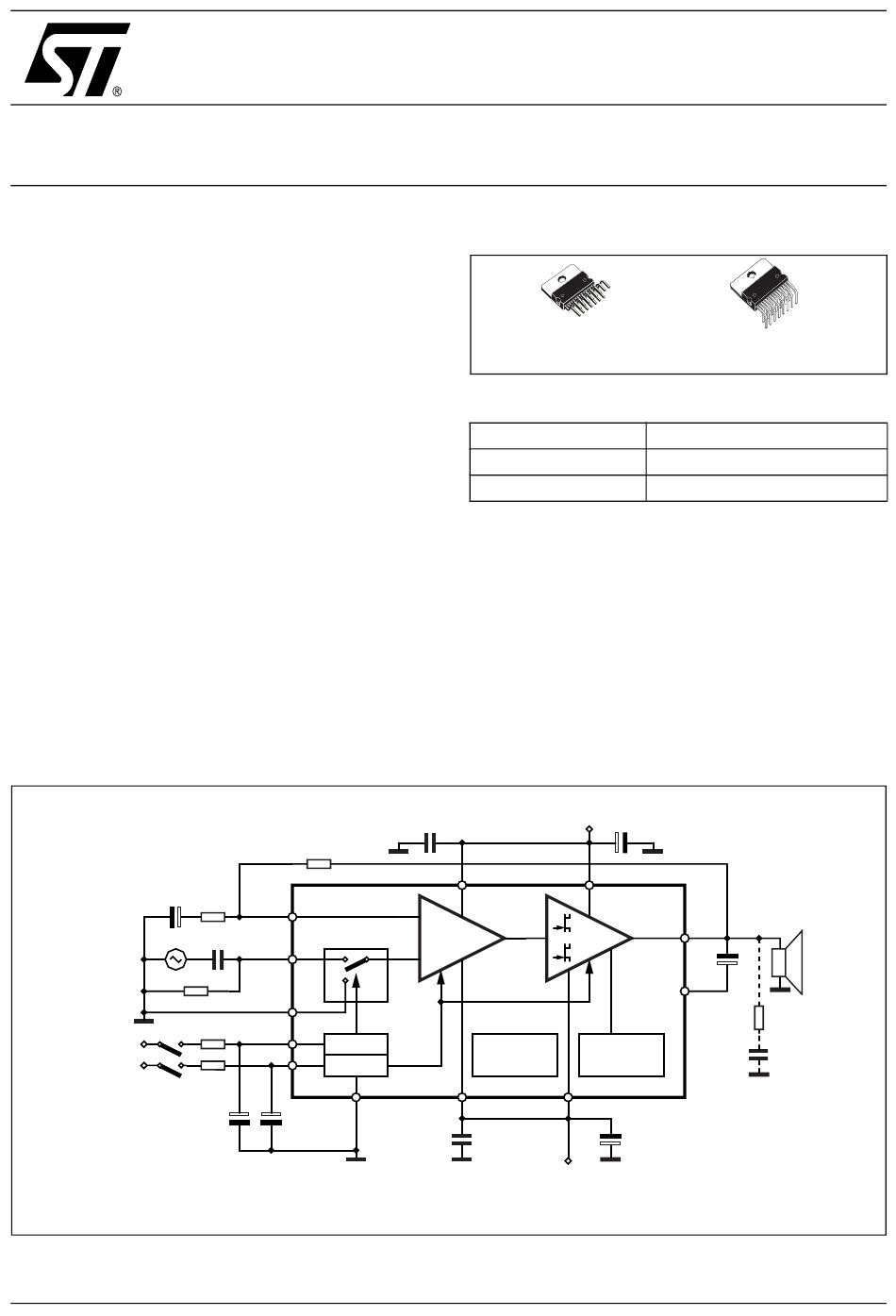

70V - 60W DMOS AUDIO AMPLIFIER WITH MUTE/ST-BY
1
FEATURES
MULTIPOWER BCD TECHNOLOGY
■
VERY HIGH OPERATING VOLTAGE RANGE
■
(±35V)
DMOS POWER STAGE
■
HIGH OUTPUT POWER (UP TO 60W MUSIC
■
POWER)
MUTING/STAND-BY FUNCTIONS
■
NO SWITCH ON/OFF NOISE
■
NO BOUCHEROT CELLS
■
VERY LOW DISTORTION
■
VERY LOW NOISE
■
SHORT CIRCUIT PROTECTION
■
THERMAL SHUTDOWN
■
2
DESCRIPTION
The TDA7296 is a monolithic integrated circuit in
Multiwatt15 package, intended for use as audio
class AB amplifier in Hi-Fi field applications (Home
Stereo, self powered loudspeakers, Topclass TV).
Figure 2. Typical Application and Test Circuit
C2
22µF
R1 22K
VM
VSTBY
C3 10µF
Note: The Boucherot cell R6, C10, normally not necessary for a stable operation it could
February 2005
R3 22K
R2
680Ω
IN-
2
C1 470nF
IN+
3
IN+MUTE
4
R5 10K
MUTE
10
MUTE
STBY
9
STBY
R4 22K
C4 10µF
be needed in presence of particular load impedances at V
Figure 1. Package
Multiwatt15V
Table 1. Order Codes
Part Number
TDA7296
TDA7296HS
Thanks to the wide voltage range and to the high
out current capability it is able to supply the high-
est power into both 4Ω and 8Ω loads even in pres-
ence of poor supply regulation, with high Supply
Voltage Rejection.
The built in muting function with turn on delay sim-
plifies the remote operation avoiding switching on-
off noises.
C7 100nF
+Vs
7
-
+
THERMAL
SHUTDOWN
1
8
STBY-GND
-Vs
C9 100nF
<±25V.
S
TDA7296
Multiwatt15H
(Short Leads)
Multiwatt15V
Multiwatt15H (Short Leads)
+Vs
C6 1000µF
+PWVs
13
14
OUT
C5
22µF
6
BOOT-
STRAP
S/C
PROTECTION
15
-PWVs
C8 1000µF
D93AU011
-Vs
Package
R6
2.7Ω
C10
100nF
Rev. 10
1/15
