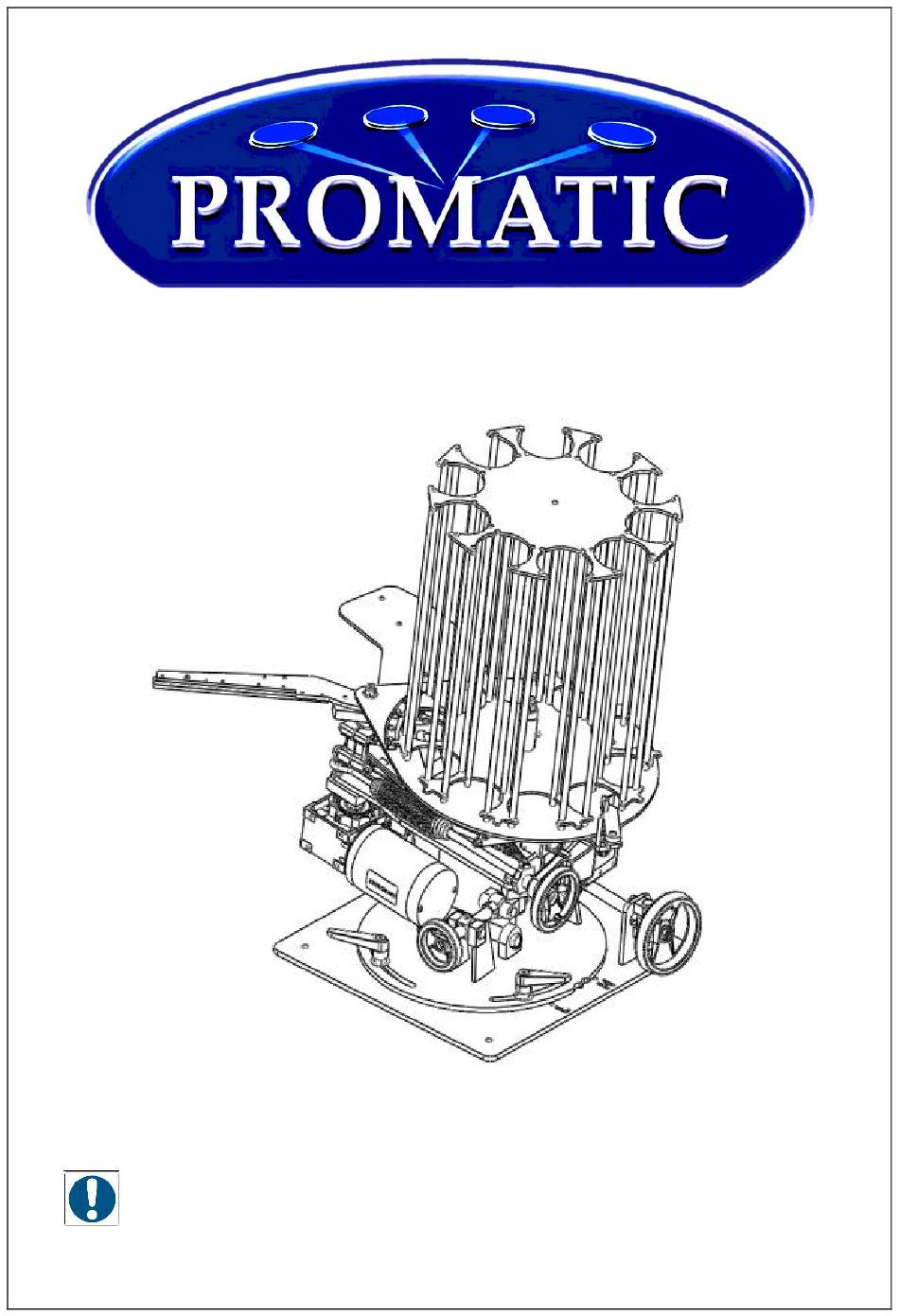

- Page 1 Signature Skeet Operating Instructions These operating instructions to be read in conjunction with the Owners Manual. Page 1 of 12...
-
Page 2: Safety Instructions
Introduction. The Signature Skeet is an easily adjusted trap that if properly maintained will give many years of trouble free service. Machine set up has been made as simple as possible. Once the machine has been set, all the important adjustments that make a Skeet machine can be made accurately and quickly without the need for tools. - Page 3 3. Never place any bodily part into the path of any mechanical piece whilst any machine is in motion or likely to be so. 4. The machine must be properly installed and securely fixed to its mounting so to ensure it is stable and cannot move.
- Page 4 Never operate the machine from within the red danger zone DISARMING THE SIGNATURE SKEET TRAP To disarm the machine push the ARM/DISARM toggle switch upwards to the DISARM position and immediately release before the machine rearms.
- Page 5 Index. 1. The parts of the machine. 2. Machine setup o The knife edge system o The back-rail o The carousel o Loading the clays 3. Machine adjustments o Adjusting the mainspring o Adjusting the rotation o Adjusting the elevation o Adjusting the tilt o Locking down 4.
- Page 6 1. The parts of the machine This section illustrates the parts of the machine that you should be familiar in order to make clay trajectory adjustments. Locking lever Tilt hand-wheel Mainspring hand-wheel Elevation turnbuckle Rotation hand-wheel These operating instructions to be read in conjunction with the Owners Manual. Page 6 of 12...
- Page 7 2. Machine setup The knife edge system The correct setting of the knife edges will help to ensure trouble free operation of the trap. Place a clay in one of the pockets of the carousel and rotate the carousel so that the clay just passes through the knife-edges.
- Page 8 Loading the clays. Your Signature Skeet machine will be either a UK or US designated trap. Clay sizes differ between the two, please ensure you load the correct size of clay into your machine. If the knife edges have been correctly set, the carousel can be loaded.
-
Page 9: Adjusting The Rotation
3. The Machine adjustments o Adjusting the mainspring Slacken the smaller of the two hand-wheels on the main spring. Turn the larger hand-wheel as necessary to adjust the tension in the mainspring. This will affect the speed and distance that the clay travels. Lock down the mainspring by retightening the smaller hand-wheel. -
Page 10: Adjusting The Tilt
o Adjusting the elevation Turn the vertical turnbuckle located towards the front right hand side of the machine. Turning it anti-clockwise with increase the elevation, clockwise will reduce it. o Adjusting the tilt Turn the small hand-wheel located to the left of the machine. Clockwise will tilt the machine to the right, anti-clockwise, to the left. - Page 11 Locking down In all cases, the orange locking levers can simply be turned enough just to clamp all positions securely. There are three clamps to fix the rotation and a single, larger clamp to fix the elevation. Adjust the operation of the clamp so only a half turn is necessary to affect a good clamp.
- Page 12 Website: www.promatic.co.uk Promatic Inc. 801, Mid America Drive, Plattsburg. MO 64477 Toll Free: 888.767.2529 Fax: 816.539.0257 E-mail: sales@promatic.biz Website: www.promatic.biz These operating instructions to be read in conjunction with the Owners Manual. Signature Skeet v1.0 January 2012 Page 12 of 12...
