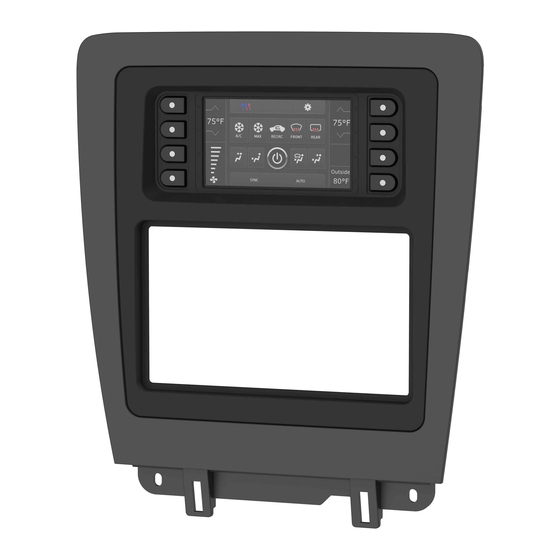

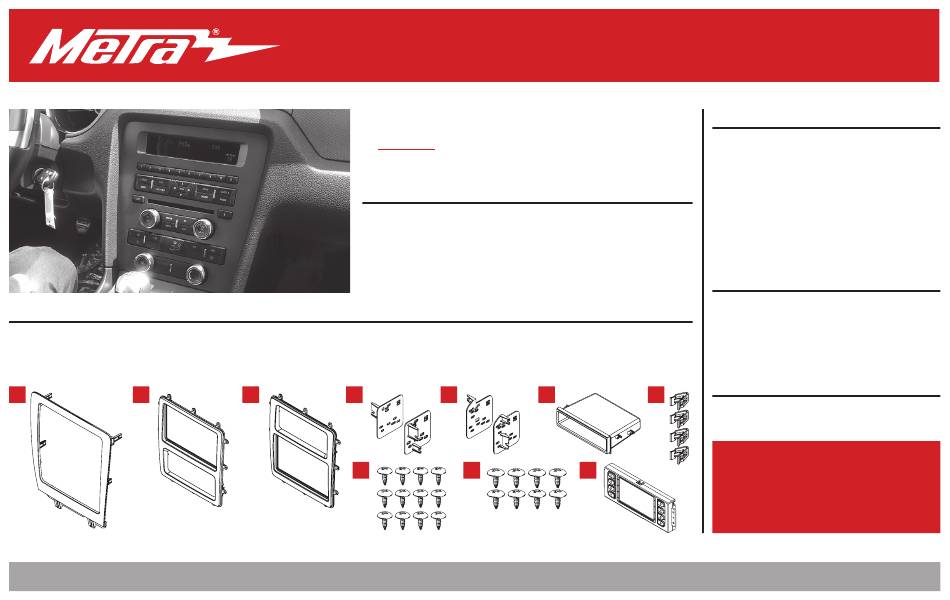

KIT COMPONENTS
• A) Radio/Display trim panel • B) Radio/Display sub-trim panel upper (a) • C) Radio/Display sub-trim panel lower (b) • D) Radio brackets upper (a)
• E) Radio brackets lower (b) • F) Pocket • G) (4) Panel clips • H) (12) #6 x 3/8" Phillips pan-head screws • I) (8) #8 x 3/8" Phillips truss-head screws
• J) Touchscreen display assembly and wiring harness • K) Antenna adapter (not shown)
A
B
Metra. The World's Best Kits.
®
Ford Mustang
Visit
MetraOnline.com
specific applications
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen interface for climate and personalization features
• Painted charcoal with a matte black center
C
D
H
MetraOnline.com
2010-2014
for more detailed information about the product and up-to-date vehicle
E
F
I
J
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
99-5839CH
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................5
Axxess Interface Installation ............................ 6-13
Final Assembly ..................................................... 10
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
TOOLS REQUIRED
G
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 4/16/19 INST99-5839CH
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-5839CH
Summary of Contents for Metra Electronics 99-5839CH
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 4/16/19 INST99-5839CH...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the trim panel surrounding the shifter, including the cup holders. (Figure A) 2. Remove (2) 9/32” screws from the bottom of the radio/climate control panel, then unclip and remove the panel. (Figure B) 3. Remove (4) Phillips screws securing the radio chassis to the vehicle.
- Page 3 KIT PREPARATION 1. There are two different radio/display 2. Attach the desired radio/display sub-trim panels to choose from. One for sub-trim panel to the radio/display panel using the (12) #6 x 3/8” pan-head mounting the radio in the upper portion of the kit, and another one for mounting screws provided.
- Page 4 KIT ASSEMBLY ISO DIN radio provision with pocket Attach the pocket to the appropriate radio brackets using the (4) #8 x 3/8” Phillips truss-head screws provided. (Figure A) Remove the metal DIN sleeve and trim ring from the aftermarket radio. Slide the radio into the bracket/pocket assembly, and then secure it using the screws supplied with the radio.
- Page 5 KIT ASSEMBLY ISO DDIN radio provision Attach the appropriate radio brackets to the radio using the screws supplied with the radio. (Figure A) Continue to Axxess Interface Installation (Figure A) REV. 4/16/2019 INST99-5839CH...
-
Page 6: Table Of Contents
AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS • Provides accessory power (12-volt 10-amp) Connections ............................7-8 • Retains R.A.P. (retained accessory power) Installation ...............................9 • Provides NAV outputs (parking brake, reverse, speed sense) Programming ............................9 • Retains audio controls on the steering wheel Extra features (SYNC).......................... -
Page 7: Connections
CONNECTIONS From the 16-pin harness with stripped leads to the aftermarket radio: From the 5839 harness to the aftermarket radio: • Connect the Red wire to the accessory wire. • Connect the Black wire to the ground wire. • If the vehicle is equipped with a Shaker/Shaker-Pro sound system or NAV, connect the Blue/ •... - Page 8 CONNECTIONS (CONT.) For models with a Shaker system: 3.5mm jack - steering wheel control retention: The 3.5mm jack is to be used to retain audio controls on the steering wheel control. • Connect the White RCA jack labeled “SUBWOOFER”, to the subwoofer out jack. •...
-
Page 9: Installation
INSTALLATION PROGRAMMING 1. Refer to step 2 from the Installation section. It is highly advisable to read the following steps beforehand, to ensure a clear understanding of what is to be expected. The following steps must be done in the order that they are numbered. 2. -
Page 10: Extra Features (Sync)
1. Secure the completed assembly to the dash using the factory screws. SYNC (4.2-inch display screen models only): 2. Reassemble the dash in reverse order of disassembly using the 99-5839CH radio display trim If the vehicle is equipped with SYNC, the 99-5839CH can retain this feature. -
Page 11: Touchscreen Display Operation
TOUCHSCREEN DISPLAY OPERATION Climate Control screen • This is the climate control screen which will be displayed on the touchscreen display. This is considered the main screen. • The upper left tab with (3) arrows will take you to the Heated/Cooled* seats screen, and the Heated Steering* screen, if applicable. - Page 12 TOUCHSCREEN DISPLAY OPERATION (CONT.) Configuration Settings • Backlight • Steering Wheel Controls • Remap Buttons – For remapping the steering wheel control buttons • For controlling the color of the buttons and back-light intensity. • Dual Assign – For dual assigning the steering wheel control buttons (long button press) •...
-
Page 13: Steering Wheel Control Settings
STEERING WHEEL CONTROL SETTINGS Remap Buttons Dual Assign • The interface has the ability to change the button assignment for the steering wheel • The interface has the capability to assign two functions to a single button, except Volume- control audio buttons, except Volume-Up and Volume-Down. Follow the prompts on the Up and Volume-Down. -
Page 14: Troubleshooting
STEERING WHEEL CONTROL SETTINGS (CONT.) Select Radio * Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means the interface does not detect a radio connected it, i.e., an open connection. Verify that the 3.5mm jack is connected to the correct steering wheel jack/wire in the radio. - Page 15 REV. 4/16/2019 INST99-5839CH...
- Page 16 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 4/16/19 INST99-5839CH...
