Turbosound iQ Series Quick Start Manual
2500 watt 2 way 8"/10"/12"/15" powered loudspeaker 3000 watt 15"/18" powered subwoofer klark teknik dsp technology, speaker modelling and ultranet networking
Hide thumbs
Also See for iQ Series:
- Quick start manual (40 pages) ,
- Quick start manual (9 pages) ,
- Quick start manual (13 pages)
Related Manuals for Turbosound iQ Series
Summary of Contents for Turbosound iQ Series

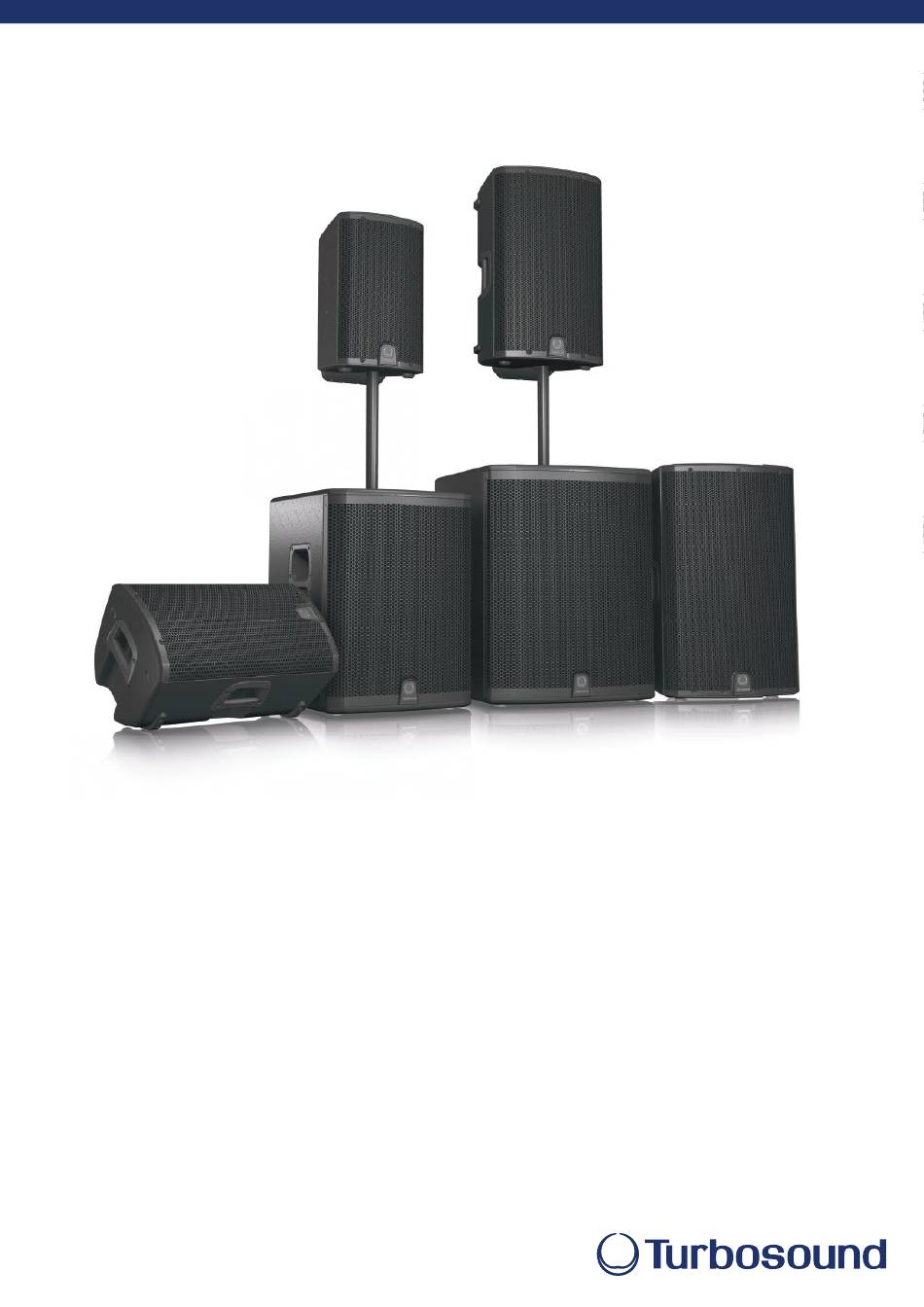

- Page 1 Quick Start Guide iQ Series 2500 Watt 2 Way 8"/10"/12"/15" Powered Loudspeaker 3000 Watt 15"/18" Powered Subwoofer KLARK TEKNIK DSP Technology, Speaker Modelling and ULTRANET Networking...
- Page 2 MIDAS, KLARK TEKNIK, by qualified personnel. or table specified by the LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, manufacturer, or sold with This symbol, wherever it appears, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA and the apparatus. When a cart alerts you to the presence of uninsulated...
-
Page 3: Unpacking The Loudspeaker
Quick Start Guide Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other TURBOSOUND product, please visit our website at turbosound.com. Unpacking the Loudspeaker After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. - Page 4 MIX OUTPUT XLR jack (unavailable on iQ15B and iQ18B subwoofers) sends out a post-GAIN signal composed of the summed INPUT A and INPUT B signals. (15) USB connection enables fi rmware updates and remote control over parameters via computer. Please visit turbosound.com to download DSP control software for your computer.
-
Page 5: Networking Capability
PC. The DSP fi rmware can also be updated via the USB connection. Visit turbosound.com for the latest fi rmware version. iQ speakers also off er proprietary ULTRANET networking capabilities through the ULTRANET IN and THRU connections using CAT5 cables with RJ45 connectors. - Page 6 Series Networked mains power iQ loudspeakers also facilitate networked transmission of mains power using power cables with Neutrik powerCON locking power connectors. To set up networked mains power between iQ loudspeakers, fi rst run a power cable terminating in a powerCON connector to the AC INPUT connector on the rear panel. To power additional speakers downline, run power cables equipped with powerCON connectors at both ends from the fi rst speaker’s AC LINK OUTPUT to the AC INPUT of the next iQ...
- Page 7 DSP Menu Structure Fullrange Subwoofer Function Choose from diff erent sound Models, either the Model "xyz" Model "xyz" TURBOSOUND signature voicing or a DSP model of an industry standard product. PROCESS MODEL Sets the frequency response to the default None None setting.
- Page 8 Series Fullrange Subwoofer Function Automatically sets as many fi lters as required. Whenever a new feedback frequency is Auto Auto discovered, the fi rst fi lter will be released to attenuate the new frequency, and so forth. Activates the FBQ (feedback detection)
- Page 9 Quick Start Guide Fullrange Subwoofer Function Version Version Displays the installed fi rmware version. SETUP (page 2) To load a specifi c preset, turn the encoder to select the desired peset’s number, and then 1. - 20. 1. - 20. either the ENTER button or the encoder.
-
Page 10: Mounting And Fi Xing

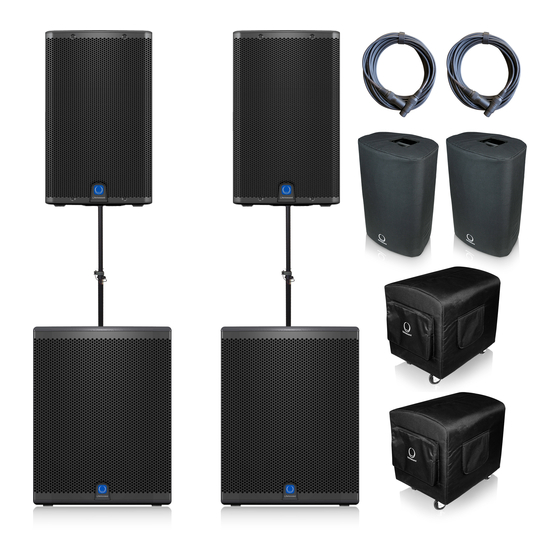

Mounting and fi xing iQ series powered loudspeakers are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations. All cabinets can be simply suspended using optional M10 eyebolts coupled to the internal rigging points provided on the top, bottom, sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel. - Page 11 Quick Start Guide Pole Mounting Fullrange iQ loudspeaker models (iQ8, iQ10, iQ12 and iQ15) may also be pole mounted, either independently or in conjunction with iQ subwoofer models (iQ15B, iQ18B). The iQ pole mount sockets allow fullrange models to be mounted straight or angled 7.5° downwards for optimum coverage. iQ10, iQ12 and iQ15 models may also be placed on one side and deployed as wedge monitors.
-
Page 12: Technical Specifications
Series Technical Specifi cations iQ10 iQ12 System 60 Hz – 18 kHz ±3 dB 55 Hz – 18 kHz ±3 dB 52 Hz – 18 kHz ±3 dB Frequency response 55 Hz – 20 kHz -10 dB 50 Hz – 20 kHz -10 dB 45 Hz –... - Page 13 Quick Start Guide iQ10 iQ12 Ultranet Digital Network System Signal 16 channels 16 channels 16 channels Latency < 0.9 ms < 0.9 ms < 0.9 ms Cabling Cables Shielded CAT5 Shielded CAT5 Shielded CAT5 Cable length max. 246 ft / 75 m recommended max.
- Page 14 Series Technical Specifi cations iQ15 iQ15B iQ18B System 50 Hz – 18 kHz ±3 dB 50 Hz – 130 Hz ±3 dB 50 Hz – 100 Hz ±3 dB Frequency response 42 Hz – 20 kHz -10 dB 40 Hz – 130 Hz -10 dB 36 Hz –...
- Page 15 Quick Start Guide iQ15 iQ15B iQ18B Ultranet Digital Network System Signal 16 channels 16 channels 16 channels Latency < 0.9 ms < 0.9 ms < 0.9 ms Cabling Cables Shielded CAT5 Shielded CAT5 Shielded CAT5 Cable length max. 246 ft / 75 m recommended max.
- Page 16 Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at turbosound.com. Alternatively, please submit an online warranty claim at turbosound.com BEFORE returning the product.
- Page 17 Quick Start Guide FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION iQ18B/iQ15B/iQ15/iQ12/iQ10/iQ8 Responsible Party Name: MUSIC Tribe Brands UK Ltd. Address: Klark Industrial Park, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ United Kingdom Phone Number: +44 1562 732290 iQ18B/iQ15B/iQ15/iQ12/iQ10/iQ8 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
