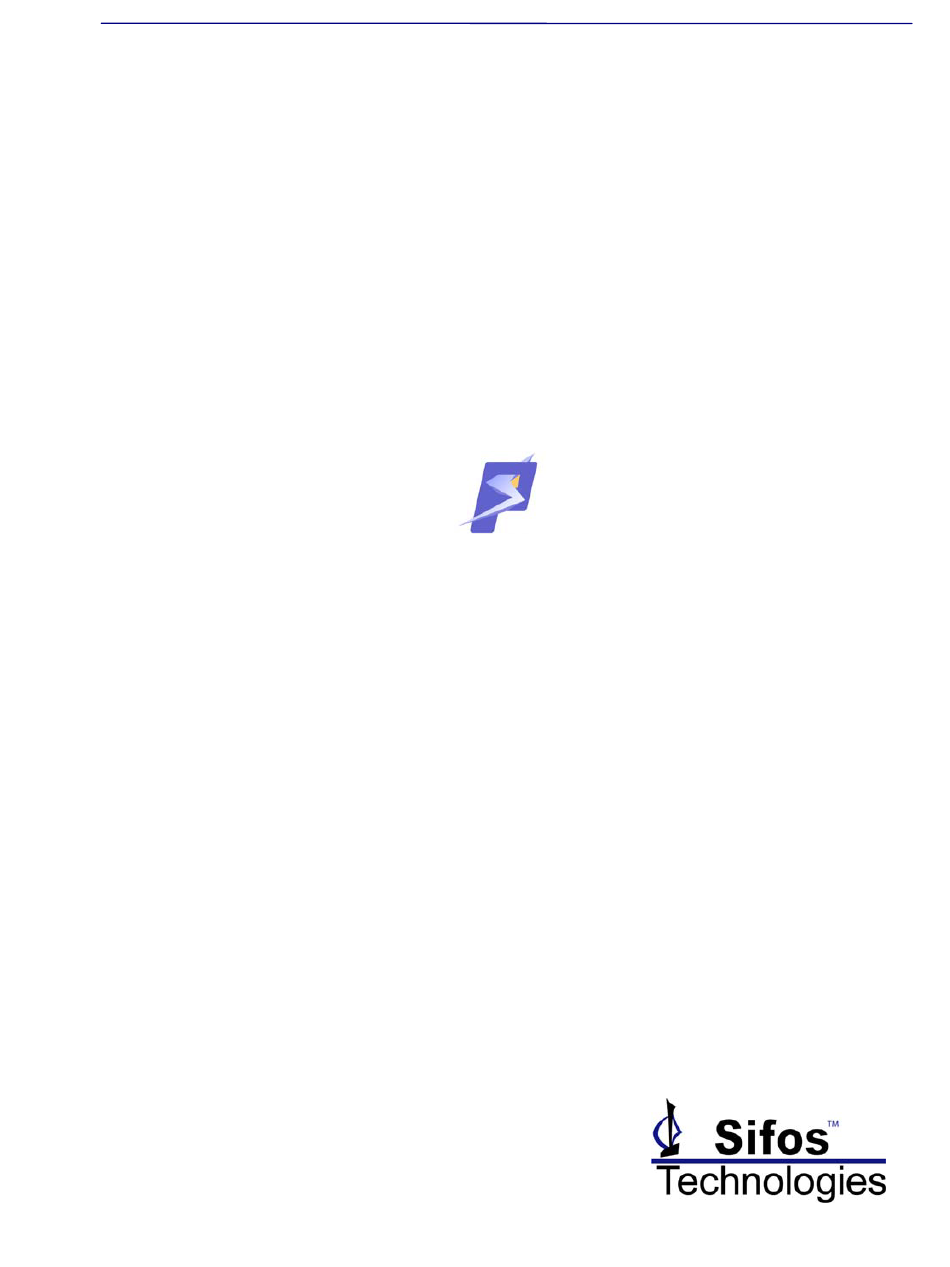

- Page 1 PowerSync Service Analyzer Reference Manual Sifos Technologies PowerSync Service Analyzer ® PSA100-SA Technical Reference Manual Version 3.4 Revised February, 2010 Copyright © 2010 Sifos Technologies February 8, 2010 Sifos Technologies page...
- Page 2 PowerSync Service Analyzer Reference Manual Disclaimer The information contained in this manual is the property of Sifos Technologies, Inc., and is furnished for use by recipient only for the purpose stated in the Software License Agreement accompanying the user documentation. Except as permitted by such License Agreement, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, without the prior written permission of Sifos Technologies, Inc.
-
Page 3: Table Of Contents
Basic Service Tests ............................23 3.1.2. Parametric (Interoperability) Tests........................24 3.1.3. Classification Service and Interoperability Tests ..................... 25 3.1.4. PoE Service Test Suite Reporting ........................25 3.2. PoE Monitoring Test..........................26 3.3. PoE Scope Trace ..........................27 February 8, 2010 Sifos Technologies page... - Page 4 PowerSync Service Analyzer Reference Manual PoE Service Test Configurations ............... 28 PSA Interactive for the PoE Service Analyzer ........... 29 Accessing the PoE Service Analyzer from PowerShell......30 February 8, 2010 Sifos Technologies page...
-
Page 5: Introduction
Section 5 will cover the PSA Interactive user interface for the PSA-100-SA. Section 6 will introduce PowerShell and automated scripting capabilities available with the PSA-100-SA. The PowerSync Analyzer family from Sifos Technologies also includes the following products: • PSA-1200: Chassis-based analyzer with capacity to test up to 24 PSE ports. The PSA-1200 fully supports optional modules including the PSE Conformance Test Suite and the PSE Multi-Port Test Suite. - Page 6 PowerSync Service Analyzer Reference Manual February 8, 2010 Sifos Technologies page...
-
Page 7: Poe And The Powersync Analyzer
(802.3at) versus normal power (802.3af) type PD’s. PSE’s, including Mid-Spans, can furnish power on any pair (ALT A or ALT B) and an option may exist to allow powering of all 4 pairs under 802.3at. February 8, 2010 Sifos Technologies page... -
Page 8: Pd Detection
Classification is performed by applying a voltage in the band from 15.5V to 20.5V and measuring the fixed DC current load presented by the PD. The magnitude of measured current is then translated into a classification as follows: February 8, 2010 Sifos Technologies page... -
Page 9: Power-Up
Given the ceilings specified, an 802.3af compliant PSE might theoretically furnish a maximum of 22.7 watts while a 2-pair, high power, 802.3at compliant PSE might theoretically supply up to 38.9 watts continuous power. Practically speaking, typical port power capacity will be relatively close to the minimum required values. February 8, 2010 Sifos Technologies page... -
Page 10: Power Removal
Frequency: 20 to 500 Hz Power-Down (or Never ?) Power-Down Dissipation: PD Load, PSE Shunt, or AC MPS Threshold: 27 KΩ to 1.98 Active PSE Discharge MΩ DC MPS Threshold: 5 – 10 mA February 8, 2010 Sifos Technologies page... -
Page 11: Connection Alternatives
PD connections. On the other hand, the added complexity complicates testing by adding ambiguity as to exactly how a PSE is detecting either an 802.3 or other type of PD. February 8, 2010 Sifos Technologies page... -
Page 12: System Hardware Overview
When the PSE voltage reaches approximately 11 volts, the passive R-C Detection signature is removed and the MPS signature R-C circuit is inserted thus presenting a valid AC MPS signature following PSE power-up for as long as the Port Switch is closed (or connected). February 8, 2010 Sifos Technologies page... -
Page 13: Triggers
Output triggers will appear as a 3.3V, 10 mSec pulse. When set as an input, it can drive the external trigger bus inside the PSA chassis. This enables triggering across multiple instruments, which may be desirable when testing equipment with more than 24 ports. February 8, 2010 Sifos Technologies page... -
Page 14: Loads And Load Transients
Sifos does not specify any particular level of performance for the Data OUT port because performance is strongly influenced by physical layer design characteristics of LAN ports (e.g. packet data testers, PSE ports) that are connected to the PSA Test Ports. February 8, 2010 Sifos Technologies page... -
Page 15: System Software Overview
When PSA software is installed, certain configuration files will be placed such that opening either the Tcl Shell or the Wish Shell will automatically integrate all of the PowerShell resources. February 8, 2010 Sifos Technologies page... -
Page 16: Pse Automated Test Suites
802.3af and pre-802.3at standard high power PSE’s. Default_Conf_Test_List_AT: A (Tcl) list of available standard tests within the Version 4.0 PSE Conformance Test Suite for 802.3at compliant PSE’s. Note: These tests are only available for the PSA-3000 platform. February 8, 2010 Sifos Technologies page... - Page 17 PowerShell using the global psaPseHpGrant. As a setting it is used to gate access to high power tests using Type-2 PD emulation, it is used to make decisions inside automated tests, and it is used by the Conformance Test Standard Report in configuring test limits. February 8, 2010 Sifos Technologies page...
-
Page 18: Directory And File Organization - Microsoft Windows
PSA Software installs into Linux and Unix in a manner that separates and organizes files into 3 categories: Category File Locations Compiled Software and Libraries /usr/local/Sifos/PSA1200 Configuration and User Data <User’s Home Directory>/ Sifos/PSA1200 Shell Scripts (Program Launchers) <User’s Home Directory>/bin February 8, 2010 Sifos Technologies page... -
Page 19: Tk/Tcl Requirements & Resources
These files are utilized by PowerShell during initialization and should remain in the directories where they are initially installed. Sections 8.3 and 8.4 of this manual provide further information regarding PowerShell API integration into native TCL shells as well as the use of these files to enable remote access to PowerShell. February 8, 2010 Sifos Technologies page... -
Page 20: Section Omitted)
Resolution 0.5 mA Error + 1.2% + .25mA Peak Types Max or Min Trace Length 256 Samples Triggers Immediate, Internal, External Voltage Ripple Pair-to-Pair Range 0 to 2Vpp 16Hz - 5kHz Resolution Error TBD% February 8, 2010 Sifos Technologies page... -
Page 21: Triggering
Operating Temperature: 50°C at 20W Max per Port, linearly de-rated from 30°C at 30W per port (Figure 2.11) Note: 30W is the heat dissipation rating, not the power loading capability of each PSA Test Port. February 8, 2010 Sifos Technologies page... -
Page 22: Certifications
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. February 8, 2010 Sifos Technologies page... -
Page 23: Poe Service Analyzer Tests
“signaling” this classification prior to receiving power from the PoE enabled network connection. Classification PD Maximum Power Requirement 0.44 to 12.95 Watts 0.44 to 3.84 Watts 0.44 to 6.49 Watts 6.49 to 12.95 Watts February 8, 2010 Sifos Technologies page... -
Page 24: Parametric (Interoperability) Tests
PoE service will not damage non-PD’s (300 – 400 PASS / FAIL msec) Power Removal Timing on PD Overload Shutdown 0 to 1500 msec OVERLD_OFF: to assure PoE Service will not damage cables and PASS / FAIL connections (50 – 75 msec) February 8, 2010 Sifos Technologies page... -
Page 25: Classification Service And Interoperability Tests
PD Class, PoE line voltage and line noise across PD power levels, and transient (burst) power performance of the PoE service. PoE Service Text Figure 3.5 File Report PoE Service Spreadsheet Report Showing Fully Compliant Servi Figure 3.4 February 8, 2010 Sifos Technologies page... -
Page 26: Poe Monitoring Test
PoE served devices. Line Monitor Test Reports can be saved to a time-date stamped text file (see Figure 3.8) upon test completion. PoE Monitor Test Figure 3.7: PoE Line Monitor Report Figure 3.8 February 8, 2010 Sifos Technologies page... -
Page 27: Poe Scope Trace
Disconnect Shutdown Voltage Figure 3.11: Figure 3.12: Following waveform capture, waveforms may be printed or imported to Microsoft Excel for further analysis as shown in Figure 3.13. Voltage Cycle Waveform - Excel Figure 3.13 February 8, 2010 Sifos Technologies page... - Page 28 Local Test Configuration: In this configuration, the PowerSync Analyzer is controlled directly from a laptop or PC in the same locality as the PoE service being tested. This configuration is convenient for moving the instrument around and testing a number of remote service points in succession. February 8, 2010 Sifos Technologies page...
- Page 29 Figure 5.4) to bring up selected topics from this reference manual to an Adobe Acrobat reader. This function requires installation of Adobe Acrobat Reader version 6.0 or later. Help Menu Service Test Status Figure 5.4 Figure 5.3 February 8, 2010 Sifos Technologies page...
- Page 30 Specifies to run the Service Monitor over a 30 minute period. This is the default. long Specifies to run the Service Monitor over a 12 hour period. -f Control to request a time-date named text file report be generated upon completion of the testing. February 8, 2010 Sifos Technologies page...
