Summary of Contents for SBC PCD7.D5 RF Series

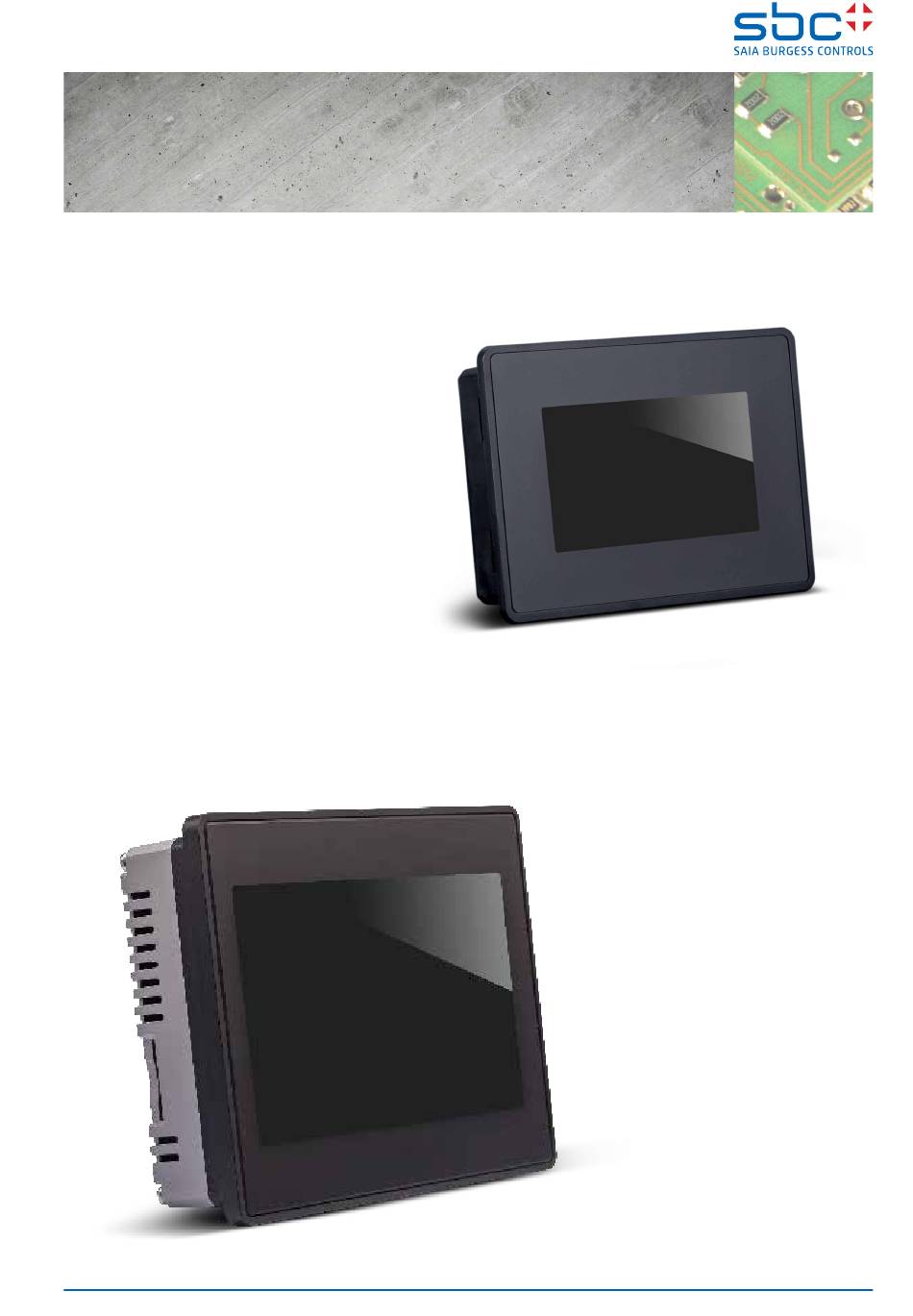

  • Page 1 User's Manual Product serie PCD7.D5xxRF Operating Instructions for the HMTL5 panels Saia Burgess Controls 27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF...
  • Page 2 27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Saia Burgess Controls...
  • Page 3: Table Of Contents

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Table of Contents Table of Contents ......................3 Document Process ..................... 4 Trademarks ......................4 Introduction ........................5 Product Overview ......................6 Standards and Approvals ....................7 3.1 Product Identification ..................8 Technical Specifications ....................
  • Page 4: Document Process

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Document Process | Trademarks Document Process Version Updated Published Comments ENG01p 2020-04-22 - New Document ENG01 2020-06-05 - Ch. 4.2 - Approvals added Trademarks Saia PCD is a registered trademark of Saia-Burgess Controls AG. ®...
  • Page 5: Introduction

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Introduction Introduction This operational guidelines describes information which relates to the device, installation, transportation, storage, assembly, use and maintenance. This operational guidelines describes the main features of the Saia PCD7.D5xxRF HTML5 panels.
  • Page 6: Product Overview

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Product Overview Product Overview The PCD7.D5xxRF HTML5 HMI products combine state-of-the-art features and top perfor- mance with an oustanding design. They have been designed to offer an outstanding price/ performance ratio for challenging applications. They are the ideal choice for HMI applications including factory and building automation. ●...
  • Page 7: Standards And Approvals

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Standards and Approvals Standards and Approvals The products have been designed for use in an industrial environment in compliance with the 2014/30/EU EMC Directive. The products have been designed in compliance with: EN 61000-6-4 EN 55011 Class A EN 61000-6-3 EN 55022 Class B...
  • Page 8: Product Identification

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Product Identification Product Identification The product may be identified through a plate attached to the rear cover. You will have to know the type of unit you are using for correct usage of the information contained in the guide. An example of this plate is shown in the figure below: Note: the PCD7.D570RF label is used as an example for PCD7.DxxRF Series Saia-Burgess Controls AG Bahnhofstrasse 18 3280 Murten, Switzerland...
  • Page 9: Technical Specifications

    EN 60529 Pollution degree environment The front face of the SBC unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the “Environmental conditions”. Even though the level of resistance SBC unit is equiv- alent to these standards, oils that should have no effect on the PCD7.D5xxRF can possibly harm the unit.
  • Page 10: Electromagnetic Compatibility (Emc)

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Electromagnetic Compatibility (EMC) | Durability information | Solvent resistance Electromagnetic Compatibility (EMC) Radiated disturbance test Class A EN 55011 Electrostatic discharge 8 kV (air electrostatic discharge) EN 61000-4-2 immunity test 4 kV (contact electrostatic discharge) Radiated, radio-frequency, 80 MHz … 1 GHz, 10 V/m...
  • Page 11: Technical Data

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Technical Data Technical Data Model PCD7.D543RF PCD7.D570RF Display / TFT Color / LED TFT Color / LED Backlight Colors Resolution 480 × 272 800 × 480 Diagonal (inches) 4.3” widescreen 7” widescreen Dimming Chipset ARM Cortex-A8 - 1 GHz ARM Cortex-A9 dual core - 800 MHz Operating System Linux RT...
  • Page 12: Dimensions

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Dimensions Dimensions Cut out MODEL PCD7.D543RF 136 mm/5,35” 196 mm/3,78” 147 mm/5.78” 107 mm/4,21” 29 mm/1,14 5 mm/0,19” 12 | Saia Burgess Controls...
  • Page 13 27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Dimensions Cut out MODEL PCD7.D570RF 176 mm/6,93” 136 mm/5,35” 187 mm/7,36” 147 mm/5,79” 29 mm/1,14” 5 mm/0,19” | 13 Saia Burgess Controls...
  • Page 14: Installation Environment

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Installation Environment Installation Environment In order to meet the front panel protection classifications, proper installation procedure must be followed: ■ the borders of the cutout must be flat ■ screw up each fixing screw until the bezel corner get in contact with the panel ■ the cutout for the panel must be of the dimensions indicated in this manual. The equipment is not intended for continuous exposure to direct sunlight. This might accelerate the aging process of the front panel film.
  • Page 15: Safety Instruction

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Safety instruction | Installation Procedure Safety instruction For all installation notes, please refer to the Installation Guide ATTENTION provided with the product. Installation Procedure Place the fixing brackets contained in the fixing kit as shown in figure below. CAUTION  Tightening torque: 7 5 Ncm or screw each fixing screw until the bezel corner gets in contact with the panel.
  • Page 16: Connections

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Connections Connections PCD7.D543RF 1. Serial port - not supported 2. Ethernet Port 3. USB Port 4. Power Supply Fig. 6.1 PCD7.D570RF 1. Power Supply 2. Ethernet Port 3. USB Port Fig.
  • Page 17: Ethernet Port

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Ethernet Ethernet Port The Ethernet port have two status indicators. Please see description in figure. Yellow Green Green Yellow No LAN cable connected BLINK (link active) LAN cable connected with 100 Mbit/s link BLINK (link active) LAN cable connected with 10 Mbit/s link | 17 Saia Burgess Controls...
  • Page 18: Power Supply, Grounding And Shielding

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Power Supply, Grounding and Shielding Power Supply, Grounding and Shielding The power supply terminal block is shown in the figure below. Fig. 7.1 DC Power Connector - AWG24 wire size - R/C Terminal Blocks (XCFR2), Female pitch 5.08 mm, torque 4.5 lb-in. 3 conductor 1,5 mm² wire size minimum, minimum temperature conductor rating 105°C. Ensure that the power supply has enough power capacity ...
  • Page 19: Cleaning Faceplates

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Cleaning faceplates | Touchscreen calibration Cleaning faceplates The equipment must be cleaned only with a soft cloth and neutral soap product. Do not use solvents. Touchscreen calibration PCD7.D5xxRF HMI products support calibration of the interface. To start calibration pro- ceed as follow: 1.
  • Page 20: Unpacking And Packing Instructions

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Unpacking and Packing Instructions Unpacking and Packing Instructions Fig. 10.1: PCD7.D543RF, PCD7.D570RF Fig. 10.2: PCD7.D510RF To repack the unit, please follow the instructions backwards. 20 | Saia Burgess Controls...
  • Page 21: Appendix

    27-672 ENG01 – User's Manual for the HMTL5 panels PCD7.D5xxRF Safety Guide Appendix Safety Guide The manual contains safety standards that must be respected for the personal safety and to avoid damage. Indications of attention are divided into three levels of severity: DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries.
  • Page 22: Contact

    Contact Saia-Burgess Controls AG Bahnhofstrasse 18 3280 Murten, Switzerland Telephone Headquarters ..+41 26 580 30 00 Telephone SBC Support ..+41 26 580 31 00 Fax .......... +41 26 580 34 99 E-mail Support: ...... support@saia-pcd.com Support website: ....

This manual is also suitable for:

Pcd7.d543rfPcd7.d570rf
