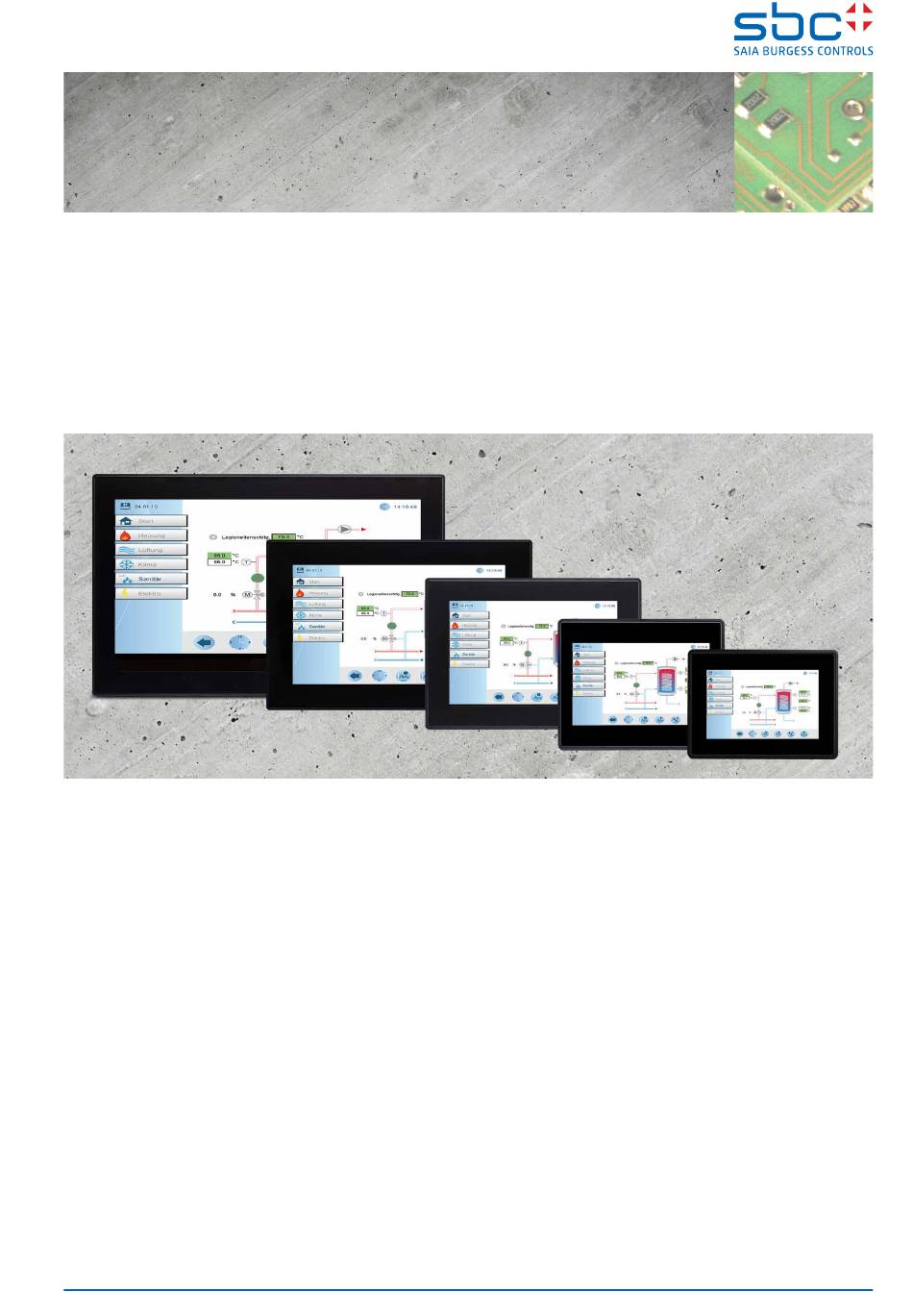

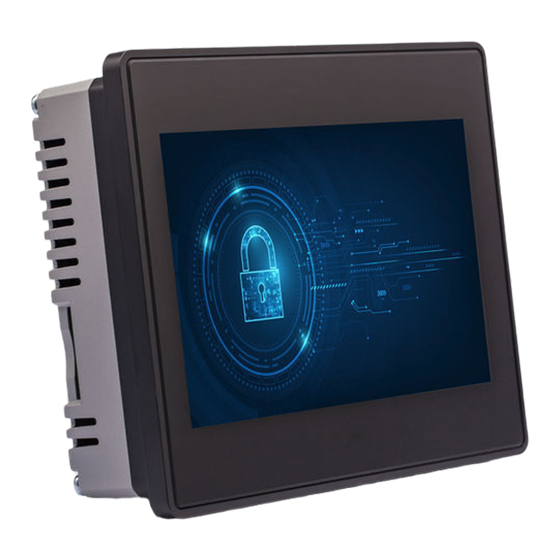

- Page 1 User's SW-Manual Product series PCD7.D5xxCF and PCD7.D5xxRF Configuration of the devices Saia Burgess Controls 27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx...
- Page 2 27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx The information contained in this document is provided for informational purposes only. While efforts were made to verify the accuracy of the information contained in this docu- mentation, it is provided 'as is' without warranty of any kind. Third-party brands and names are the property of their respective owners.
-
Page 3: Table Of Contents
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Table of Contents Table of Contents ......................3 Document Process ..................... 4 Trademarks ......................4 First and quick start of device ..................5 First start of the device ..................5 Configuration of the web client ................ -
Page 4: Document Process
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Document Process | Trademarks Document Process Version Updated Author Comments ENG01p 2020-04-22 D. Sch. - First draw in Word ENG01 2020-07-20 M. H. - New format InDesign ENG02 2020-07-29 M. H. - Ch. -
Page 5: First And Quick Start Of Device
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx First start of the device First and quick start of device First start of the device After starting up the device the first time you are located on the settings page, you need to login to the setup menu to configure the device. -
Page 6: Configuration Of The Web Client
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Configuration of the web client 1.2 Configuration of the web client 1.2.1 The Settings Page The settings page is the default start page. Enter you credentials to open the configuration menu or press Load Homepage on the write top to access the configuration done in the web browser setup. -
Page 7: The Web Browser Settings
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Configuration of the web client 1.2.2 The Web Browser Settings After entering the configuration menu, you are forwarded to the Web Browser configura- tion. To change the web Browser configuration, press the button EDIT on the right top on the page. -
Page 8: Configure The Network Interface
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Configuration of the web client 1.2.3 Configure the Network interface By default, all network interfaces a configured for DHCP. The ETH0 (For PCD7.D5xxCF beside the power connector) is configured as WAN port. If you connect the panel to the network using ETH0 and a DHCP server is running the Ip-Address is automatically re- quested from the DHCP server. -
Page 9: Touch Screen Calibration
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Touch screen calibration Touch screen calibration System Setting Calibration allows to calibrate Touchscreen device and can be accessed by the tap-tap procedure. Tap-tap consists in a sequence of several touch activations by simple means of the finger tapping the touch screen performed during the power-up phase and started immediately after the HMI is powered on. -
Page 10: Open The System Settings Menu
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Open the System settings menu Open the System settings menu The system settings menu is entered after power on the device and entering valid creden- tials “Username” and “Password” into the login mask. The system settings On the lift side in the system Settings screen the main topics of configuration is listed Language... -
Page 11: System
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Open the System settings menu System Parameter Description Info Device information Status Device status (Free RAM, Up time, CPU Load) Timers Device timers (System on, Back light on) PlugIn Hardware plugins information (not used) 3.3. -
Page 12: Management
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Open the System settings menu Management From the management area is possible “Update System Components” on page 18 of the HMI device. Working in the Management area is a critical operation and, when not performed correctly, may cause product damages requiring service of the product. -
Page 13: Authentication
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Open the System settings menu 3.10 Authentication Enter in edit mode to change the authentication passwords. 3.10.1 x.509 Certificate HMI Device use a self-certificate to encrypt the Internet communication trough the HTTPS protocol. -
Page 14: Factory Reset
27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Create the recovery USB device Factory reset The factory reset sets back the device properties and settings to factory default. What you need: 1. A USB 2. The chromium runtime for the device un6x-chromium-xx-x.x.zip Create the recovery USB device Format the device with a FAT32 filesystem and copy the complete file “un6x-chromium-xx-x.x.zip”... - Page 15 27-680 ENG02 – User's SW-Manual for the HMTL5 panels PCD7.D5xx Restore the device from USB don’t touch the screen to jump into the Default Mode of the device. Open the Startup sequence On the installed Apps on the left select the Chromium version and press Uninstall | 15 Saia Burgess Controls...
- Page 16 Wait or press done to execute the restart sequence Saia-Burgess Controls AG Bahnhofstrasse 18 | 3280 Murten, Switzerland T +41 26 580 30 00 | F +41 26 580 34 99 www.saia-pcd.com support@saia-pcd.com www.sbc-support.com 2020-11-09 | Technical data and information subject to change. 16 | Saia Burgess Controls...
