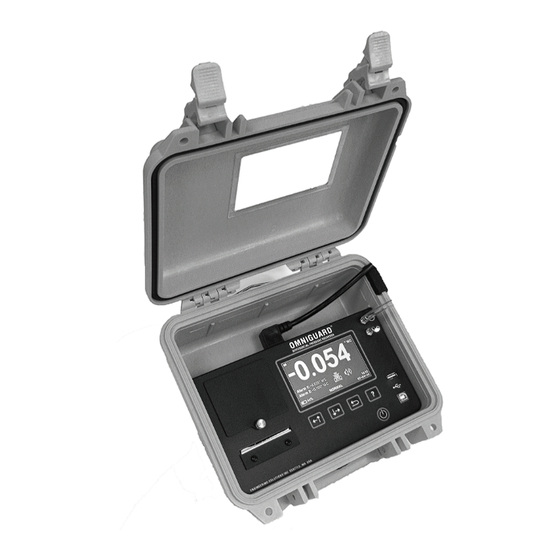

- Page 1 OMNIGUARD ™ CELLULAR Manometer / Differential Pressure Recorder with Cellular and WiFi Communication Owner's Manual V1.60 ENGINEERING SOLUTIONS...
- Page 2 Renton, Washington USA 98057 (206) 241-9395 • (206) 241-9411 fax www.omniguard.com © 1995-2018 Engineering Solutions Inc. Omniguard™ is a trademark of Engineering Solutions Inc. Product specifi cations subject to change without notice. First Printing 6/2018. Printed in the USA. P/N OG-MAN.160...
-
Page 3: Table Of Contents
Shipping & Repair ................29 Appendix B: Specifi cations ..............30 Appendix C: Establishing a Containment Site ........31 Appendix D: Limited Warranty ............... 33 Battery Disposal Information..............34 FCC Certifi cation information..............35 Page 1 Engineering Solutions Inc P/N OG-MAN.160... -
Page 4: Introduction
• Remote communication of Alarms and Job Logs to off site of differential pressure recorders (manometers) first introduced over personell 20 years ago by Engineering Solutions Inc. • Contractor name appears in all Job Logs. The Omniguard’s newest enhancements and features: •... -
Page 5: Section 1: Basic Care
• If your unit must be shipped at any time to another location or for service, use the original packing material and shipping box for optimum protection during shipping. Page 4 Page 5 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 6: Section 3: Quick Setup & Usage
The icon will change to and the alarm will remain muted until the USB Port Adapter alarm condition is over. USB Flash Drive error - connected. full or write protected. Analyzing device. Page 6 Page 7 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 7: Hanging The Omniguard
X in the middle of it. Touch the X and continue until the calibration is completed. Touchscreen calibration will need to be done if the Omniguard is reset to factory default settings. Page 8 Page 9 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 8: Starting/Ending A Job
APPROACHING ALARM to warn of an impending of 0.005”WC. The Omniguard can also operate in units of mmWC or Alarm condition when the pressure is within 0.005”WC of the Alarm Pascals. (See Pressure Units.) settings. Page 10 Page 11 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 9: Alarm Settings & Operating Window
Muted during the ALARM condition, automatically re-arms Once the containment pressure reaches the operating window, the when containment pressure returns to operating window, status Omniguard status will indicate NORMAL and the alarms will be NORMAL. Page 12 Page 13 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 10: Printer Settings & Reports Screen
2. Touch the arrows to adjust the time minute by minute. Hold the arrow to increase the speed of adjustment. 3. To set the date, simply touch the white text indicating the month, Page 14 Page 15 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 11: Log Rates
2. From the Main menu, touch Passcode Protection. calibration is completed. 3. Touch Off to enable or On to disable Passcode Protection. Note : Disabling Passcode Protection requires knowing and entering the Passcode. Page 16 Page 17 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 12: Erase Job Logs
Home screen until they have been report generation. Job Logs transferred to a PC can be reviewed and changed from factory defaults. reprinted any number of times. Page 18 Page 19 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 13: Usb Flash Drive - Data Collection
To activate your cellular communication service, or renew your Example: If the Omniguard 5 serial number is annual service, log in to www.engsolinc.com and fill out and submit G506932, the fi rst Log fi le will be 506932.OGL. The the Cellular Activation Form, or call 206-241-9395 and contact the second fi... -
Page 14: Wifi Communication Set Up And Operation
To send text messages to Cell Phones, use the 10 digit wireless number without dashes combined with the domain for the phones’s network to create an email address as shown below. Page 22 Page 23 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... -
Page 15: Section 5: Accessories
It has a phone number and requires an active cell phone account with SMS texting support, using either a traditional plan with monthly payments or a prepaid plan. Contact Engineering Solutions for more information on acquiring a cellular wireless modem. - Page 16 The message format is shown below, where “nnnnnnnnnn” is the 10-digit phone number of the cellular modem, with area code first (no hypens or spaces). Page 26 Page 27 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc...
-
Page 17: Appendix A : Troubleshooting
The unit should not be Solution: Adjust Alarm 1 &2 settings to allow for normal air pressure able to be shift after packing. Engineering Solutions will not be fluctuations caused by entries into work area or other equipment. -
Page 18: Appendix B: Specifi Cations
Pressure Units: “ WC (inches Water Column), mmWC (millimeters Water Column), or Pa (Pascals) This section of general guidelines to establishing a containment site is provided by Engineering Solutions Inc for informational Date (Log) Storage: 4 MB non-volatile memory purposes only. Engineering Solutions Inc is not responsible for Display: 4.3”... -
Page 19: Appendix D: Limited Warranty
4. Calculating site airflow requirements: A typical heavy duty HEPA fan/filter unit has a 1000 CFM (cubic Engineering Solutions warrants that all products, component parts feet per minute) capacity with a new filter. Units are typically and accessories will, for a period of twelve (12) months from date of... -
Page 20: Battery Disposal Information
Batteries must be disposed of by separate collection and recycling means. End users are obligated by law to comply with the discarding procedure for waste batteries. Page 34 Page 35 Omniguard Cellular™ Owner’s Manual Engineering Solutions Inc... - Page 21 Page 36 Omniguard Cellular™ Owner’s Manual...
- Page 22 Omniguard Referencia Rápida Empezar un nuevo trabajo 1. Revise la Fecha y Tiempo, ponga si necesario. 2. Revise los ajustes para Alarma 1 y 2 (ventana operacion), ajuste si necesario. 3. Oprima EMPIECE TRABAJO en la parte inferior en la pantalla de Inicio. 4.
- Page 23 Omniguard Quick Reference Starting A New Job 1. Check the Time & Date, set if necessary. 2. Check the settings for Alarm 1 & 2 (operating window), adjust if necessary. 3. Touch START JOB at the bottom of the Home screen. 4.
