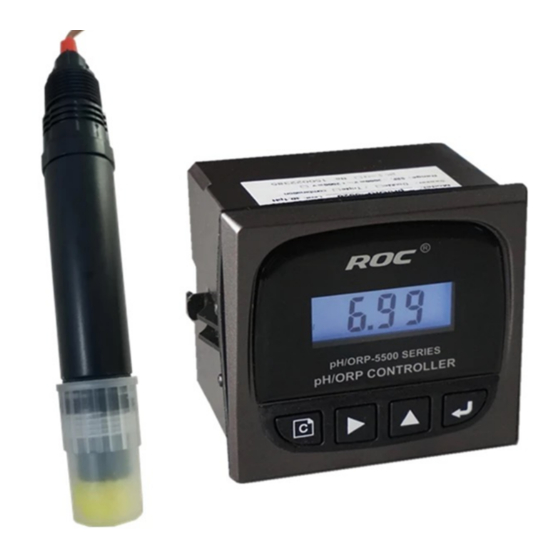

- Page 1 Series pH/ORP Transmitting Controller Instruction Manual...
- Page 2 Notes before Operation 1. Notice before operation: （1） Carefully read the relevant parts of this manual before installation and operation to prevent wrong operation, measurement error and damage of instrument. （2） Improper installation and unsuitable flow speed will cause big measurement error, so please read the installation passage in detail.
-
Page 3: Table Of Contents
CATALOG ⅠCONCEPTION ..........................1 1.1 MAIN FEATURES..........................1 1.2 APPLICATION ..........................1 1.3 NOTE： ............................1 1.4 TECHNICAL FEATURES......................2 Ⅱ.INSTRUMENT DIMENSION AND TERMINAL DEFINITION ..........3 2.1. INSTRUMENT DIMENSION .......................3 2.2. INSTRUMENT REAR TERMINALS DEFINATION ..............4 Ⅲ. EQUIPMENT LAYOUT REFERENCE DIAGRAM ..............5 3.1 MILLIAMPERE TRANSMITTING CONNECTION LAYOUT...........5 3.2 ELECTRICAL CONNECTION LAYOUT..................5 Ⅳ.OPERATE SETTING ........................6 4.1 PANEL AND MAIN INTERFACE DISPLAY................6... -
Page 4: Ⅰconception
ⅠCONCEPTION pH/ORP-5500 series pH/ORP Transmitting Controller is a popular type,high Cost performance instrument, mating pH/ORP probe,the entire instrument have high measurement accuracy, anti-interference,easy installation,simple operate features. 1.1 Main Features 1. LCD screen with prompt code, make every step operating get the presentation and guide;... -
Page 5: Technical Features
1.4 Technical features Model 5500 5510 5520 Power supply DC24V AC110 AC220V Supply frequency ---------- 50/60 50/60 0.00~ 14.00 Measurement range -1000mV~ +1000mV Temp. 0.0 ~99.9℃ 0.01 Resolution Temp 0.1℃ ≤±0.05 Indication error ≤±5 mV Temp ≤ ±0.5℃ Input impedance cause value ±0.03 error Approx equivalent input impedance... -
Page 6: Ⅱ.instrument Dimension And Terminal Definition
Installation Panel mounted, fast installation clamp Dimension 96 mm×96mm×103 mm (H×W×D) hole dimension 91mm×91mm Ⅱ. INSTRUMENT DIMENSION AND TERMINAL DEFINITION 2.1. Instrument dimension Shell front view Shell top view Shell side view... -
Page 7: Instrument Rear Terminals Defination
2.2. Instrument rear terminals defination Wire instruction： AC 220V input terminal (pH/ORP-5520) 0V/220V AC 110V input terminal (pH/ORP-5510) 0V/110V DC 24V input terminal (pH/ORP-5500) 24VA/B （Internal automatic recognition of polarity） Electromagnetic compatibility earth protection terminal EARTH High limit alarm control terminal blocks Low limit alarm control terminal blocks （T+、T-）external feed under transmitting mode public terminal under Transmitter /Instrument Mode... -
Page 8: Ⅲ. Equipment Layout Reference Diagram
Ⅲ. EQUIPMENT LAYOUT REFERENCE DIAGRAM 3.1 Milliampere transmitting connection layout Instrument mode current loop wiring Transmitter mode current loop wiring 3.2 Electrical connection layout Relay ON/OFF contact component control wiring diagram... -
Page 9: Ⅳ.operate Setting
Control Mode Ⅳ.OPERATE SETTING 4.1 Panel and main interface display mA migrate setting alarm high low limit setting identification identification Units show identification show identification... -
Page 10: Key Board Function
4.2 Key board function Name Function Keyboard 1. pH automatic temperature compensation measurement mode； 2. Ph measurement status check temperature Return compensation value 3. Return or skip the revised item 4. Parameter setting status circulate of thousand hundred ten one bit symbol Select 5. -
Page 11: Probe Calibration
4.4 Probe calibration 4.4.1 Calibration pH probe is a kind of electrochemical probe , the sensitivity will reduce after long time usage and medium. So, the probe needs calibration regularly. The calibration cycle basis on the medium impact. 1. Normal buffer solution ,10.00\9.18\7.00\6.86\4.00\4.01 can be selected 2. -
Page 12: Ⅴintrument Mating Probe Installation Guide
4.4.3 Offline calibration If it’s not convenient for on site calibration, please use the Lab device to calibrate the probe o. Firstly, record mV value which relative to the current room temperature, and then input the value into Offline item. That is manual input calibration. Under pH measurement main interface press“select”... -
Page 13: Probe Installation
5.2 Probe installation pH/ORP Flow device (P34A) pH/ORP Flow device （ P34B ） installation installation Temp probe pipeline installation pH/ORP Floating bed style installation pH/ORP Scaffolding installation(P16) pH/ORP reaction pool installation... -
Page 14: Probe Installation Request
Flange installation Horizontal installation [Note]：Recommend using the flow device with needle control valve (P34) 1. Recommend using with needle control valve flow device when install pipeline (model P34A/B)，which can change probe under pressure-bearing、continue condition； 2. Round sensitive glass steep pH probe direct install in the pipeline, it will threaten the probe when the pipeline pressure change, water hammer or siphon effect，after using flow device, the probe and atmosphere will communicate, operational states safe and measure stability... -
Page 15: Ⅵ、Maintaining
Level installation cannot work Fall to install cannot work Ⅵ、MAINTAINING 6.1 Probe maintaining 1. pH probe may not dry storage，soak in with 3.0mol/L KCL solution box； 2. Suggesting according to the measurement media condition clean the probe timely，calibrate the probe after mating the meter.. 3. -
Page 16: Ⅶ、Instrument And Probe Fault Common Trouble Shooting
7. The probe cable is low noise private cable, untried person can not cut or lengthen privately； 8. When measuring Contain tiny particles of fluid pH value, install filter before the probe， prevent the particle impact the glass ball steep. Ⅶ、INSTRUMENT AND PROBE FAULT COMMON TROUBLE SHOOTING Possible factor Phenomenon... -
Page 17: Ⅸ、Purcharse Instruction
Ⅸ、PURCHARSE INSTRUCTION Name of flow device Matting probe Apply to Automatic observe P33 intergrated flow device Glass probe control equipment cabinet or experiment system General probe/fission Pipeline installation P34A flow device probe P34B flow device 1220A fission probe Pipeline installation protect case General...
