Summary of Contents for Franke FTC 922 XS AU

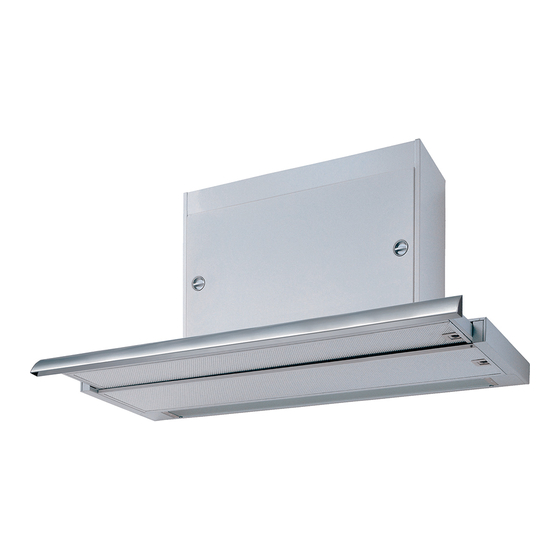

- Page 1 Instructions for use and installation Cooker Hood FTC 922 XS AU...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................6 INSTALLATION..................................7 USE ......................................9 MAINTENANCE ................................... 10... -
Page 3: Recommendations And Suggestions
SAFETY INFORMATION For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance. The wire connection has to be done by specialized technician. - Page 4 • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- Page 5 • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 6: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Flange ø 150 mm Flange ø 120 mm Adapting ring ø 120-125 mm (optional) Closing element Ref. Q.ty Installation Components Screws 3,5 x 16 Screws 2,9 x 12,7 Screws 2,9 x 9,5 Q.ty Documentation... -
Page 7: Installation
INSTALLATION Drilling the Support surface and Fitting the Hood • The Hood can be fitted directly on the lower surface of the wall furniture units (650 mm min. above the Cooker Top) using the snap-on Side Supports. • Make an opening on the lower surface inside the furniture unit, as indicated (fig.1);... - Page 8 Connections DUCTING VERSION AIR EXHAUST SYSTEM When installing the hood in ducting version, a rigid or a flexible pipe with the diameter corresponding to the flange diameter is used in order to connect the hood to the air outlet piping. •...
-
Page 9: Use
By pulling out the sliding panel it is possible to automatically activate all the hood functions. By simply closing the sliding panel all the functions are switched off. SWITCH FUNCTIONS Light Switches the lighting system on and off Motor Switches the extractor motor on and off 1. -
Page 10: Maintenance
MAINTENANCE Grease filters CLEANING METAL CASSETTE GREASE FILTERS • The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher. • Pull out the sliding suction panel. •... - Page 11 Lighting LIGHT REPLACEMENT • Remove the metal terminals fixing the light cover. • Slide the light cover to the right until the left hand is free. Lower it slightly and slide it to the left to free it completely. • Unscrew the bulbs and replace them with new ones having the same characteristics.
- Page 12 Franke S.p.a. Via Pignolini,2 37019 Peschiera del Garda (VR) www.franke.it 991.0593.136_ver1 - 1907712 D00005980_00...
