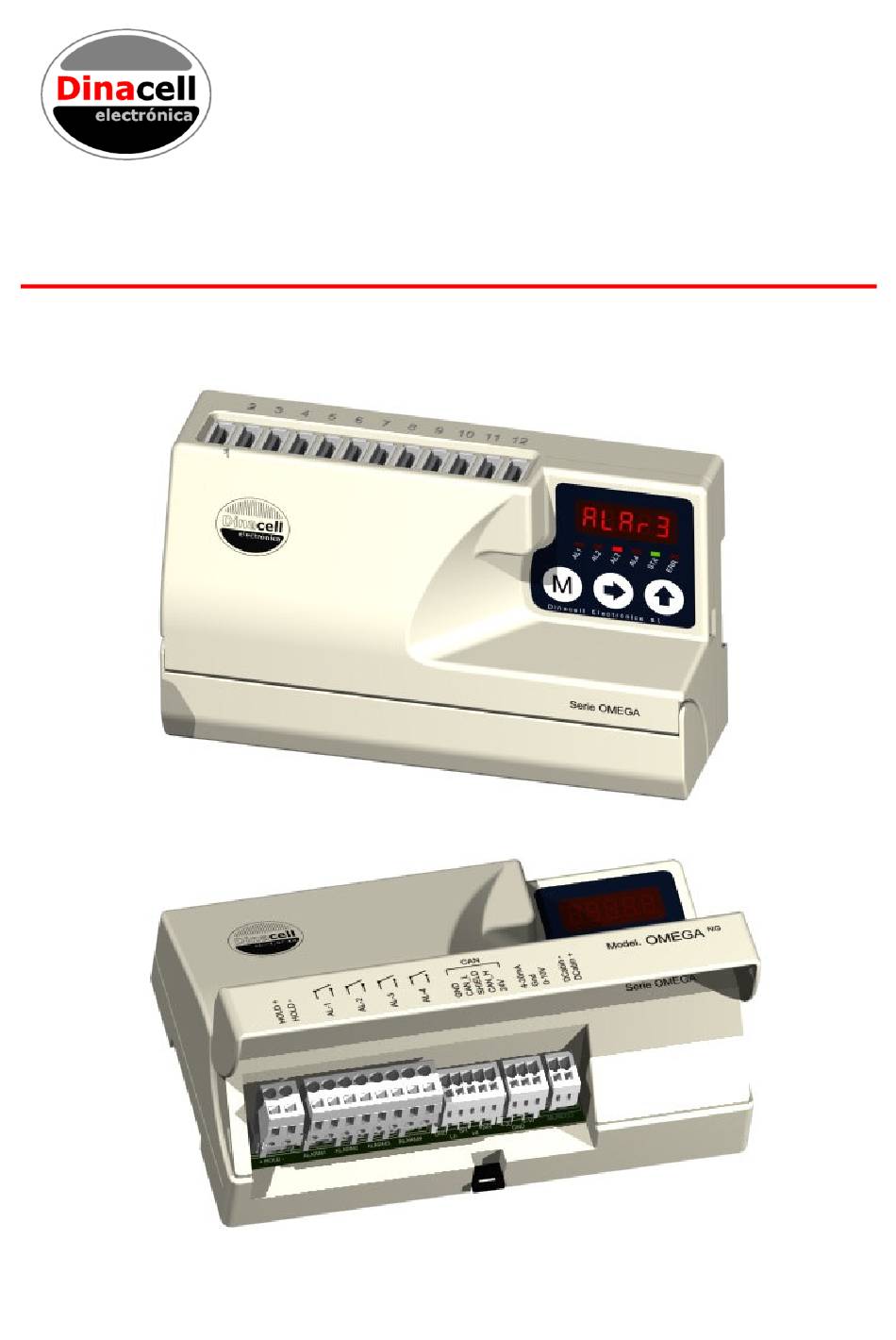

- Page 1 OMEGA ng LOAD WEIGHING DEVICE User manual...
- Page 2 OMEGA ng...
-
Page 3: Table Of Contents
OMEGA ng Index 1. DESCRIPTION AND MAIN FEATURES ............. 4 2. DISPLAY AND CONTROL BUTTONS ..............4 3. DIMENSIONS, INSTALLATION AND CONNECTIONS ........5 4. MENU STRUCTURE ..................6 5. HOW TO VISUALIZE OR CHANGE PARAMETERS ......... 7 6. DEVICE INFO ..................... 7 7. -
Page 4: Description And Main Features
OMEGA Unit control is a Load Weighing device of the (NG) New Generation units from Dinacell Electronic with CanOpen-Lift CIA 417 Integrated. The Main features of this unit, depending on the model, are: - Measures, monitors and Indicates Overloads in elevators. -
Page 5: Dimensions, Installation And Connections
OMEGA ng Note: After two minutes without any operation, the unit automatically returns to the total weight measure display, independent of the menu item previously selected. Functions Full Load Alarm Indicator Over Load Alarm Indicator Zero Load Level Indicator (Empty Cabin) Difference and Slack Rope tension indicator Led status ( For CanOpen: Status Led ) -
Page 6: Menu Structure
OMEGA ng Sensor inputs Up to 12 USB Connectors for easy plugging Output there are two types of output: Cabin display INC: Progressive display MB-D (two wire connection without polarity). output LED: If overload, it will be an intermittent voltage of 5V (max. 30mA) with the polarity shown in the figure. -
Page 7: How To Visualize Or Change Parameters
After any of these operations, the display will show the current parameter. 6. DEVICE INFO All new NG units store some important information in this menu in order to build wireless connections with any remote future unit developed by Dinacell Electronica. All parameters can be read in this submenu. Submenu... -
Page 8: System Configuration
OMEGA ng 7. SYSTEM CONFIGURATION This section describes how to configure the Unit to obtain the best measure accuracy. The configuration is done in Menu. Press Check value Enter to modify to enter nSen: Number of sensors connected to ropes or cables. If this parameter is not set correctly, the unit will show Err1 and alarm relays will be activated. - Page 9 OMEGA ng Calibration process: 1) Install the control unit with the information of the INSTALL AND CONNECTIONS Chapter 3. 2) Connect Load Cell to the OMEGA 3) Power up the unit with the correct voltage (see the ELECTRICAL SPECIFICATIONS Chapter 15).
-
Page 10: Alarms Configuration
OMEGA ng overwritten. 8. ALARMS CONFIGURATION The alarms values correspond to the load threshold at which each relay change its state. The relays allows to be configured individually as make or break contact Alarms are activated when their threshold is exceeded. The Unit OMEGA has 5 different alarms: AL1-F (Full Load, Relay #1): Change of state when exceeding the load programmed in... - Page 11 OMEGA ng How to configure alarm settings: Go to Submenu Press Check value Enter to modify to enter Level: Alarm 1 Level Threshold for Full load alarm. rStA: Relay Status. When alarm 1 is deactivated (Idle Mode) (Only relevant models with relay outputs ) Level: Alarm 2 Level Threshold for Over load alarm.
-
Page 12: Chain Compensation
OMEGA ng 9. CHAIN COMPENSATION 9.1. New advanced Chain Compensation The New Generation (NG) of Load Weighing Devices has the newest software for chain compensation. It offers several options to improve the accuracy to compensate for the weight of the chain. -
Page 13: Chain Compensation Adjust
OMEGA ng T1 and T2 options are only shown if is set to SOFT compensation. See Section 10 , Hold Function to adjust these parameters. 9.3. Chain Compensation Adjust The NG Series has new advanced chain compensation. To use all the features of new compensation is necessary to adjust some parameters in Menu. -
Page 14: Hardware Compensation
OMEGA ng 9.3.2. Hardware Compensation In some installations with many landings, software chain compensations does not work well due to friction in the rails between floors, weight changes during long elevator travels, or auto_zero does not occur because elevator never stops. These problems can be solved with Hardware compensation. -
Page 15: Additional Functions
OMEGA ng ADDITIONAL FUNCTIONS 11.1. Hold function During the elevator travel, the measured loads can greatly fluctuate due to friction in the rails, cab and load movements, etc. The Hold Input prevents the control from measuring the load while the elevator is travelling, This ensures that the movement of the cabin will not affect the weighing process and therefore, no alarms or relay will be activated during elevator travel. -
Page 16: Analog Output
OMEGA ng LED Indicator: Under overload it will be an intermittent voltage of 5V (max. 75mA) with the polarity shown in the figure. LED Incremental Progressive display MB-D is used (two wire connection with polarity) (Requires an external MB-D unit). ANALOG OUTPUT The unit is provided with two analog outputs (Voltage and current output). -
Page 17: Canopen-Lift Cia 417
OMEGA ng CanOpen-Lift CiA 417 (Only relevant for OMEGA-C and OMEGA- CA models ) Dinacell electronic is member of the CiA ( Can In Automation ), Vendor-ID 00000361 OMEGA -C accomplish with the CanOpen-Lift CiA 417 profile. Some important CanOpen Parameters can be modified from this Submenu as, Baud rate and Node ID. -
Page 18: Error Codes And Troubleshooting
OMEGA ng ERROR CODES AND TROUBLESHOOTING When the unit detects some anomaly it will show an error code from the following table: Error description Action Load cell is not properly connected, or its cable is Check indicated sensor damaged. Err1 is shown alternating with the connection. -
Page 19: Ng Conection
OMEGA ng NG CONECTION All New Dinacell Units have a special feature called NG Connection (New Generation connections) The main function of the NG connection is to connect to android Smart phones for Unit calibration, and reading Pen Drives for software updating. -
Page 20: Wire Rope Tension Adjustment
OMEGA ng g) When programming ends the Unit Will reboot automatically. Then Go to Info Sub-menu and Reset the unit. WIRE ROPE TENSION ADJUSTMENT This section explains how to check the tension of all wire ropes of the installation. All ropes should carry the same tension. -
Page 21: Assistance To The Wire Rope Tension Adjustment
OMEGA ng 17.2 Assistance to the wire rope tension adjustment With this assistant tool you will be guide to adjust each rope with the adequate load just to accomplish the desired target. To enter this mode just push Start label Following the suggested steps, you can apply the precise load to each rope to perform the whole "wire rope tension"... - Page 22 OMEGA ng You can save all your installations data on your Smartphone, tablet or laptop. You can save as many installations as you desire (the only limitation is the memory of each device). Sending reports by mail or create your own PDF reports are also possible from the tool. Laptop Configuration Software: Same operations can be done from a laptop or any computer with WIFI connection.
-
Page 23: Quick Configuration Guide
OMEGA ng QUICK CONFIGURATION GUIDE Parameters checking or modification Press repeatedly to find the desired parameter Press 2 sec. to enter Press x2 Press 2 Check Enter to Change Choose to save sec. to exit value modify digit digit value ... - Page 24 OMEGA ng Dinacell Electrónica sl. tiene todos los derechos reservados. Según las leyes de propiedad intelectual, queda prohibida la copia, reproducción, adaptación, alteración o modificación, total o parcial, de los Dinacell Electrónica sl.; contenidos, salvo para uso exclusivo y privado del usuario o bajo expresa autorización de no responsabilizandose de los posibles errores de impresión o copia.
