Summary of Contents for Atomic Bass Box

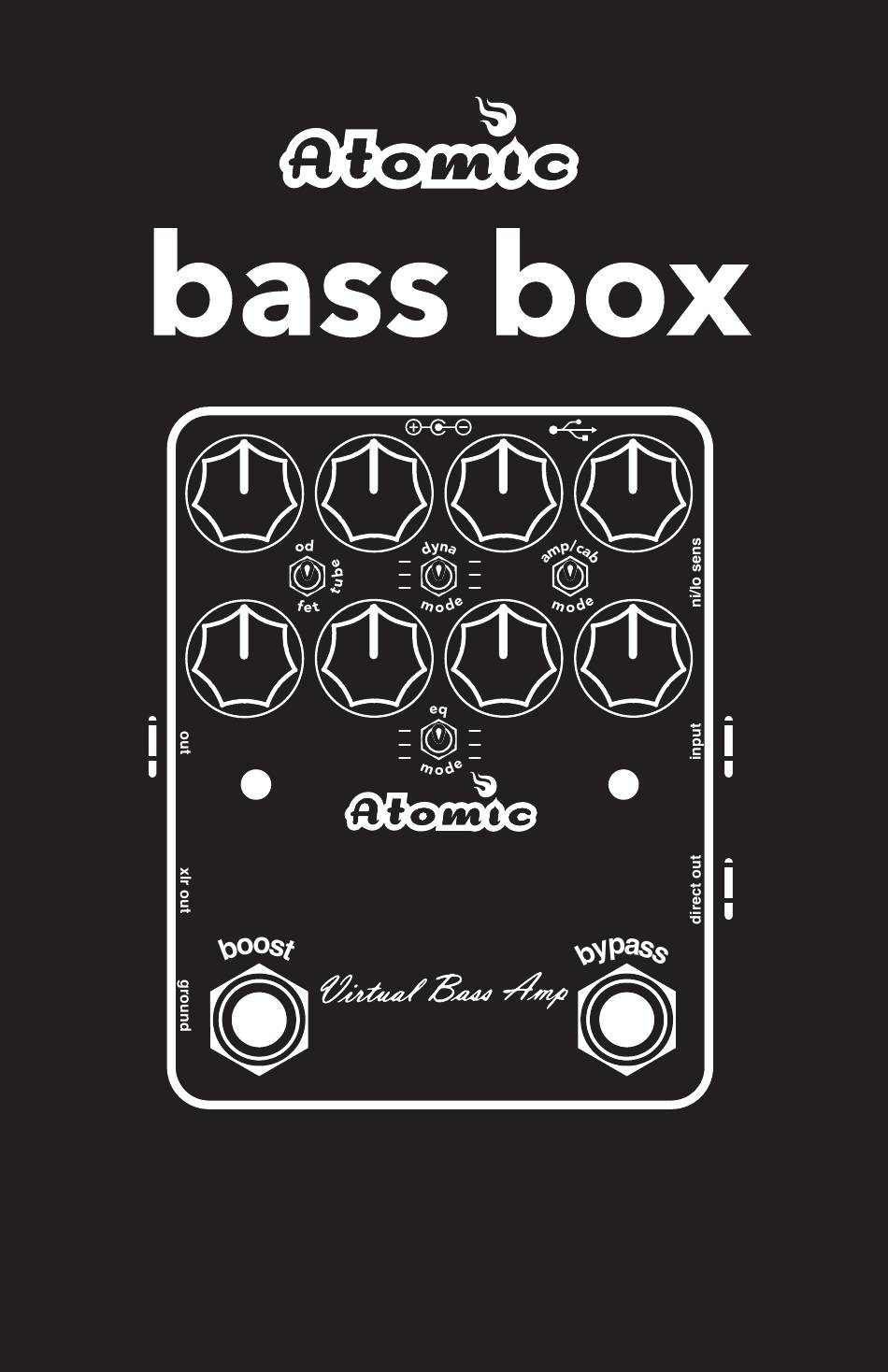

- Page 1 9v comp ratio boost level limit knee level attack bass treble lo mids hi mids mids freq freq bass box with built-in digital vacuum tube technology by gallo engineering USER MANUAL...
- Page 2 INTRODUCTION Thank you for purchasing Bass Box, a world-class bass tone engine, effects processor, and impulse response cabinet loader, all integrated into a powerful and portable stomp box. Bass guitar processing applies overdrive, compression, limiting, preamplification, equalization, tube amp simulation, DI processing, bass cabinet tone, and more to get the best possible sound.
-
Page 3: Connection Diagram
CONNECTION DIAGRAM xlr out ground XLR CABLE 1/4” CABLE... - Page 4 CONTROLS, CONNECTIONS – & FOOT SWITCHES BASS BOX phones aux in dc 9v comp ratio boost level limit knee level attack bass treble lo mids hi mids mids freq freq bass box with built-in digital vacuum tube technology by gallo engineering...
-
Page 5: Dynamics Controls
Set the mode with the dynamics toggle switch located between the dynamics knobs. - The LEVEL knob controls the LEVEL KNOB overall level of the BASS BOX when the pedal DYNAMICS TOGGLE SWITCH - The dynamics is enabled. modeler has three different modes. Compressor,... - Page 6 = comp = limit = level EQ CONTROLS = ratio = knee = attack The EQ is controlled by the 4 knobs in the bottom row. The EQ is always on but you can bypass it by having all 4 of those knobs in the up (12 o’clock) position. The EQ has 3 modes, selected by the EQ toggle switch which is located between the two mid EQ = ssa = tube...
- Page 7 - This input mixes directly to the headphone output jack. This allows you to connect a music player to the bass box and play along with music. You must use the volume control of the music player to adjust the volume of the music.
- Page 8 The included USB cable is a USB 2.0 Type A to mini B should you need to replace it. You can download the editor application for Mac OS or Windows from the Atomic website then click on the bass box tools icon.
-
Page 9: Effect Blocks
XLR output. OUTPUTS There are two physical outputs on the Bass Box. The OUT (1/4” output) and the XLR output. The signal assigned to each output can be derived from different points in the effect block signal flow for different applications. - Page 10 CAB 6 is 8x10 SVT To update the firmware on your bass box: • 1. On the Atomic Amps website, click on the Support & Downloads tab at the top of the screen . Then click on the bass box tools.
