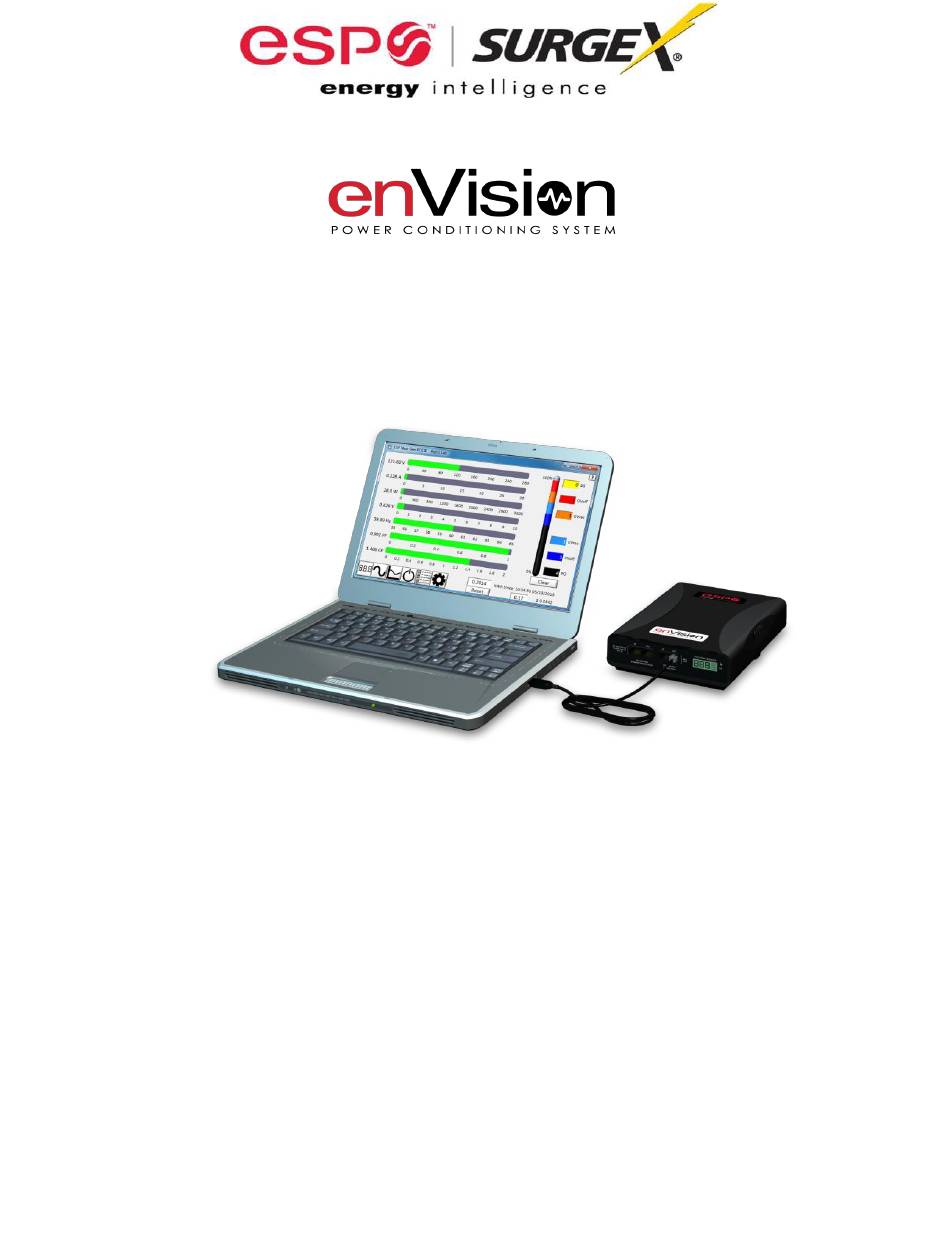

- Page 1 EV-12015, EV-12020, EV-20815, EV-20820, EV-23010 User Manual 120 and 208/230 Volt Models Software Version 1.0 © 2014 Electronic Systems Protection, Inc. / Technical Support: 1-800-645-9721 / espei.com...
- Page 2 User Manual ©2014 Electronic Systems Protection, Inc. / Technical Support: 1-800-645-9721 / espei.com...
-
Page 3: Table Of Contents
User Manual I. PRODUCT OVERVIEW 1. M ............................3 ODELS 2. K ..........................3 EATURES 3. T ........................3 ECHNICAL UPPORT II. INSTALLATION INSTRUCTIONS 1. F ........................4 ILTER NSTALLATION a. T ......................... 4 URN OFF EQUIPMENT b. C ....................... 4 ONNECT ODEM FAX LINE... -
Page 4: Product Overview
(detailed Diagnostic Software User Manual) 3. Technical Support: To download software and access further product information, visit www.espei.com For enVision PCS technical support, please contact ESP at 1-800-645-9721 ©2014 Electronic Systems Protection, Inc. / Technical Support: 1-800-645-9721 / espei.com... -
Page 5: Installation Instructions
User Manual INSTALLATION INSTRUCTIONS 1. Filter Installation a. Turn off the machine you are connecting to the Filter, and unplug the machine’s power cord from wall outlet. Éteignez la machine que vous connectez au filtre et débranchez de la prise murale le cordon d'alimentation de la machine. -
Page 6: Connect Equipment
User Manual d. Connect Equipment i. Make sure that the total amperage of all equipment plugged into the Filter does not exceed the maximum branch circuit rating. Assurez-vous que l'intensité totale de tous les appareils reliés au filtre ne dépasse pas la tension maximale du circuit de dérivation. Asegúrese de que el amperaje total del equipo conectado al filtro no supere la clasificación máxima del circuito de derivación. -
Page 7: Connect Filter To Outlet
To test, plug the Filter into a known properly functioning outlet. If the “System On” LED still does not illuminate in the functioning outlet, contact ESP at 1-800-645-9721. CAUTION – Do not install this device if there is not at least 10... -
Page 8: Hardware
User Manual III. HARDWARE 1. Filter a. LCD Event Monitor The LCD EVENT MONITOR displays useful information related to data collection, device status, and troubleshooting. i. Normal Operation When the EnVision PCS Filter is plugged into a branch circuit outlet with correct wiring and acceptable line voltage, the LCD Event Monitor will display the following information: Menu... - Page 9 User Manual Under Voltages (Off) Under Voltages (Record) Over Voltages (Record) Over Voltages (Off) Surges Overload Last Recorded Event Outlet State (OS) On / Off User Control Turn Outlets On / Off (UC) Memory All Clear (ALC) Disturbance History Clear (dhC) Power Usage Clear (PUC)
-
Page 10: Wiring Fault
User Manual Wiring Fault When connected to an incorrectly wired branch circuit outlet, in addition to the illumination of the Red LED, the LCD Event Monitor will display the following information: Wiring Fault Condition Display Example Display Line (Hot) / Neutral rP (Reverse Reversed Polarity) -
Page 11: Clearing Memory
User Manual b. Clearing Memory: The memory contents of the Filter can be cleared at any time by following one of these two methods: Buttons: Follow these steps to clear the device memory: Press the Menu button until “UC” (User Control) is displayed. Next, press the Scroll Button to select which memory record to erase: Memory All Clear (ALC) -
Page 12: Overview
User Manual a. Overview The Data Interface Cable consists of a USB connection on one end, and a RJ-11 connection on the opposite end. The USB connection plugs into an available USB port on your PC. The RJ-11 connection plugs into the RJ- 11 “OUT”... -
Page 13: Troubleshooting
Use the Diagnostic Software to manually turn the outlets On. Red LED Off, Green LED On, No Defective product. Contact ESP for product power at output. replacement at 800.645.9721. ©2014 Electronic Systems Protection, Inc. / Technical Support: 1-800-645-9721 / espei.com... - Page 14 User Manual Specifications Parameter Specification Load Rating EV-12015 15 Amps at 120 Volts EV-12020 20 Amps at 120 Volts EV-20815 15 Amps at 120/230 Volts Split Phase EV-20820 20 Amps at 120/230 Volts Split Phase EV-23010 13 Amps at 230V Single Phase Voltage Protection EV-12015 330V All Modes...
- Page 15 User Manual Parameter Specification Surge Event Definition Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V* or higher and a frequency of 20 kHz or higher.
