Table Of Contents

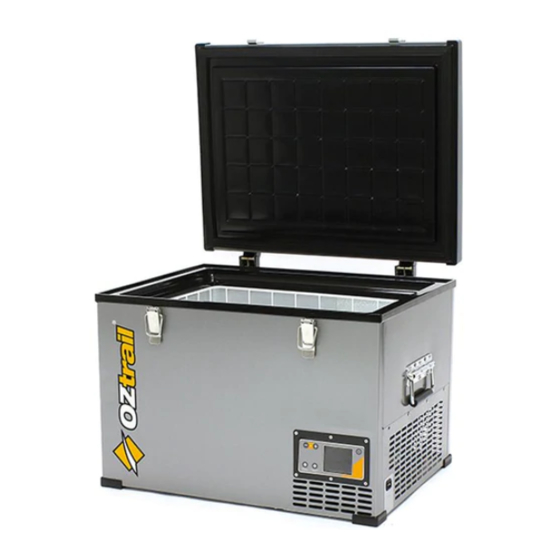

OWNERS MANUAL

Single and Dual Zone Fridge/Freezers

ELE-FF045S-G / ELE-FF080D-G

www.oztrail.com.au

Table of Contents

Need help?

Do you have a question about the ELE-FF045S-G and is the answer not in the manual?

Questions and answers

Summary of Contents for OZtrail ELE-FF045S-G

Page 1 OWNERS MANUAL Single and Dual Zone Fridge/Freezers ELE-FF045S-G / ELE-FF080D-G www.oztrail.com.au...
Page 2: Table Of Contents
CONTENTS General Information & Safety Instructions..3 Appliances and Accessories ......4 Getting Started ..........5 Operating your Fridge/Freezer ......6 Temp Control/General Operation ....8 Single Zone Operation........9 Dual Zone Operation ........10 Using with Solar Panel or Generator .....12 Tips, Maintenance & Service ......13 Troubleshooting ..........14 Error Code .............15 Specifications ..........15...
Page 3: General Information & Safety Instructions
GENERAL INFO & SAFETY INSTRUCTIONS Read this manual thoroughly before first • Protect the power cable. Do not kink or use, even if you are familiar with this type of damage the power cable. Do not wrap it product. The safety precautions enclosed around the appliance.
Page 4: Appliances And Accessories
ASSEMBLY AND PARTS SINGLE ZONE FRIDGE/FREEZER 1. Internal Basket 2. Control Panel 3. Single Lid 4. Lid Latches 5. Carry Handle 6. Air Flow Vent 7. Power Input Panel 8. AC Power Cable (Page 7.) 9. DC Power Cable (Page 7.) DUAL ZONE FRIDGE/FREEZER 1.
Page 5: Getting Started
GETTING STARTED INSTALLATION After unpacking the Fridge/Freezer check that no parts are missing. Place the unit in a dry place which is protected against splashing water. Do not place directly adjacent to sources of heat such as heating, gas ovens, hot water, pipes or under the blazing sun.
Page 6: Operating Your Fridge/Freezer
OPERATING YOUR FRIDGE/FREEZER POWER REQUIREMENTS 12/24V DC POWER REQUIREMENTS The Fridge/Freezer is designed to operate on If your Fridge/Freezer is cutting out AC or DC voltage. prematurely, it could be due to: • AC input 220-240V AC at 50Hz to ac 1.
Page 7 OPERATING YOUR FRIDGE/FREEZER OPERATING WITH 240V AC • Plug the 240V AC power adaptor & cable into the Fridge power socket (Fig. 3) on the end of the Fridge/Freezer and then connect to a suitable 240V AC power source. • The Fridge/Freezer will automatically turn on, there is no requirement to switch the appliance on.
Page 8: Temp Control/General Operation
TEMP CONTROL/GENERAL OPERATION When your Fridge/Freezer is first connected to the AC or DC power input the appliance will automatically switch on and the LCD control panel will display the current cabinet temperature, battery monitor and Eco setting as well as the current input voltage. •...
Page 9: Single Zone Operation
SINGLE ZONE OPERATION • Battery Protection • High • Compressor Speed • 1. Power On/Off Button 2. Battery Monitor Display 3. Temp Decrease Button 4. Temp Increase Button 5. Temp Display 6. Battery Protection Button • Battery Protection • High •...
Page 10: Dual Zone Operation
DUAL ZONE OPERATION 1. Power On/Off Button 2. Battery Monitor Display 3. Temp Decrease Buttons 4. Temp Increase Buttons 5. Temp Display 6. Battery Protection Button • Battery Protection • High • Compressor Speed • 7. Battery Protection Display 8. Compressor Speed Button 9.
Page 11 DUAL ZONE OPERATION BATTERY MONITOR – SETTING 1. Adjust the setting by pressing the Battery Protection button until desired setting is highlighted on display 12V DC Input Cut Out Cut In HIGH 11.3V 12.6V MEDIUM 10.1V 11.4V 9.6V 10.9V 24V DC Input Cut Out Cut In HIGH...
Page 12: Using With Solar Panel Or Generator
USING WITH SOLAR PANEL OR GENERATOR USING WITH SOLAR PANELS USING PORTABLE GENERATORS • The power consumption and efficiency of • It is important that the correct generator your Fridge/Freezer makes it ideal to be size is used with your Fridge/Freezer. An used in conjunction with solar panels to incorrect generator or voltage output may provide recharging of the DC power source.
Page 13: Tips, Maintenance & Service
TIPS, MAINTENANCE & SERVICE TIPS AND SUGGESTIONS MAINTENANCE & SERVICE • Fresh and frozen foods should not be Your Fridge/Freezer will be delivered cleaned stored right beside each other in the from the factory – you nevertheless should cabinet. Doing so may cause a fresh food clean prior to initial use.
Page 14: Troubleshooting
TROUBLESHOOTING Issue Possible Solutions Check the unit is switched ON – Press the power button to turn on The Fridge/Freezer will not turn on Check the power source (voltage may be too low) Check the power cable and all connections from the power source to Fridge/Freezer The temperature has been set too low, therefore increase the temperature The contents of the fridge are freezing...
Page 15: Error Code
Over Temperature of the compressor & electronics Disconnect power to fridge for 20 minutes & attempt re-start Temperature Sensor Faulty Contact After Sales Support 1300 555 197 to arrange repair SPECIFICATIONS Model ELE-FF045S-G ELE-FF080D-G Capacity 45lt Single Zone 80lt Dual Zone Weight...
Page 16: Warranty Details
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For more detailed information and an explanation of these terms see www.oztrail.com.au/warranty or email warranty@adventureoperations.com Made in China Designed &...
