User Manual
Tech Support - 800-542-2489
Email - sales@rackmountsales.com
UM-CV-751-19W-Q113V1
dedicated KVM switch and rackmount screen technology
19" Widescreen LCD 1440 x 900

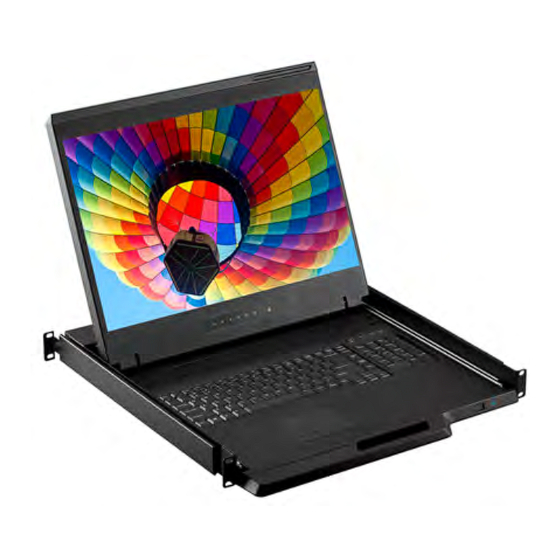

RM-111-19WH
1U LCD Console Drawer
Includes :
- 1, 6' USB/VGA Cable (Part# KVM-B-6A)
- 1, 6' USB/DVI Cable (Part# KVM-X-6A)
- 1, 6' IEC Power Cord
- Mounting Brackets & Hardware
www.rackmountsales.com
Advertisement
Related Manuals for Crystal Image Technologies RM-111-19WH
Summary of Contents for Crystal Image Technologies RM-111-19WH
- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 RM-111-19WH 1U LCD Console Drawer Includes : - 1, 6' USB/VGA Cable (Part# KVM-B-6A) - 1, 6' USB/DVI Cable (Part# KVM-X-6A) - 1, 6' IEC Power Cord - Mounting Brackets &...
-
Page 2: Installation
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > RM-111-19WH Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10... - Page 4 Package Contents RM-111-19WH unit X 1 1 - DVI-6 6ft DVI-D/USB console cable X 1 1 - KVM-B-6 6ft VGA/USB console cable X 1 1 - 6ft IEC Power cord 1 - Set of adjustable mounting brackets 8 - M6 screw, cage nut & cup washer The above package content is only for the single console models.
- Page 5 Weight 441.6 x 460 x 44 mm 590 x 823 x 140 mm 11.5 kg 16.5 kg RM-111-19WH 17.4 x 18.1 x 1.73" 23.2 x 32.4 x 5.5” 25 lb 36 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI, AV, audio &...
- Page 6 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
- Page 7 < 1.3 > Installation - How to install 2 post rack brackets Step ■ Insert the left and right rear mounting brackets into the LCD console drawer in the reverse direction. Option Model : MB-751-12 Step ■ Align each rear mounting bracket to a suitable length. Rear mounting Front mounting Step...
- Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide the drawer out ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-19W-Q113V1 www.rackmountsales.com...
-
Page 9: Connection
via KVM-X-6A cable < 1.4 > Connection to USB Server LCD Console Drawer DVI-D AC Input 100~240V POWER KVM-X-6A DVI-D console cable USB server DVI-D via KVM-X-6A cable < 1.4 > Connection to external KVM LCD Console Drawer DVI-D AC Input 100~240V POWER KVM-X-6A DVI-D... - Page 10 via KVM-B-6A cable < 1.4 > Connection to USB Server LCD Console Drawer POWER AC Input 100~240V KVM-B-6A VGA console cable USB server via KVM-B-6A cable < 1.4 > Connection to external KVM LCD Console Drawer POWER AC Input 100~240V KVM-B-6A VGA console cable VGA console KVM...
-
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RM-111-19WH Manufacturer Panel Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) - Page 12 Environmental Operating Temp rature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) Physical 441.6 x 460 x 44 mm Specifi...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations keyboard integrated with touchpad keyboard integrated with trackball Key force 55 ± 5g 3 ± 0.3mm Travelling distance Switch life > 10 million life cycle time MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac Supporting layouts... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 15 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 16 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Crystal Imagee’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CIT Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Crystal Image provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 17 < 3.2 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) ( 1 ) For AV2.2 upgrade, either HDMI or DVI-D is provided. ( 2 ) For the above options, casing depth will be extended from 460mm ( 18.1"...
- Page 18 < 3.3 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
