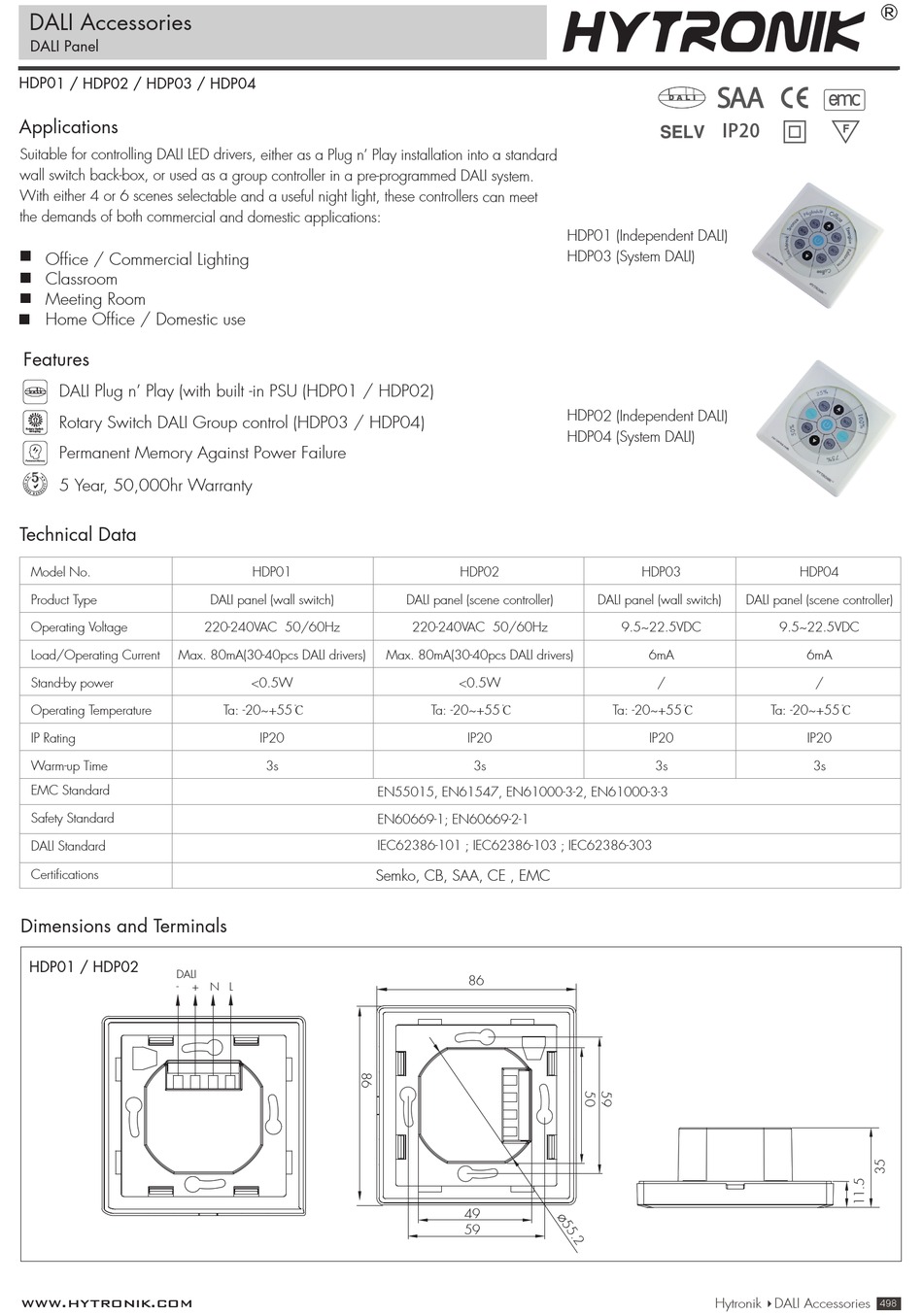

DALI Accessories
DALI Panel
Applications
Office / Commercial Lighting
Classroom
Meeting Room
Home Office / Domestic use
Features
DALI Plug n' Play (with built -in PSU (HDP01 / HDP02)
Rotary Switch DALI Group control (HDP03 / HDP04)
Permanent Memory Against Power Failure
5 Year, 50,000hr Warranty
Technical Data
Model No.
Product Type
Operating Voltage
Max. 80mA(30-40pcs DALI drivers)
Load/Operating Current
Stand-by power
Operating Temperature
IP Rating
Warm-up Time
EMC Standard
Safety Standard
DALI Standard
Certifications
Dimensions and Terminals
HDP01 / HDP02
DALI
-
+
www.hytronik.com
HDP01
DALI panel (wall switch)
220-240VAC 50/60Hz
<0.5W
Ta: -20~+55℃
IP20
3s
EN55015, EN61547, EN61000-3-2, EN61000-3-3
EN60669-1; EN60669-2-1
IEC62386-101 ; IEC62386-103 ; IEC62386-303
Semko, CB, SAA, CE , EMC
N L
HDP02
DALI panel (scene controller)
220-240VAC 50/60Hz
Max. 80mA(30-40pcs DALI drivers)
<0.5W
Ta: -20~+55℃
IP20
3s
86
49
59
HDP03
DALI panel (wall switch)
DALI panel (scene controller)
9.5~22.5VDC
6mA
/
Ta: -20~+55℃
Ta: -20~+55℃
IP20
3s
Hytronik DALI Accessories
HDP04
9.5~22.5VDC
6mA
/
IP20
3s
498
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HDP01
Summary of Contents for Hytronik HDP01
- Page 1 Office / Commercial Lighting Classroom Meeting Room Home Office / Domestic use Features DALI Plug n’ Play (with built -in PSU (HDP01 / HDP02) Rotary Switch DALI Group control (HDP03 / HDP04) Permanent Memory Against Power Failure 5 Year, 50,000hr Warranty Technical Data Model No.
- Page 2 DALI DALI Wire Preparation Wire Preparation 0.75 - 4mm Solid or Stranded wire type 0.75 - 4mm Wiring Diagrams HDP01 / HDP02 HDP03 / HDP04 DALI bus 9.5V~22.5VDC DALI DALI DALI DALI DALI Driver Group Control (for HDP03 / HDP04 only) The DALI panel can control the lights grouped in a DALI system via the rotary switch.
- Page 3 Functions and Operations (HDP01 / HDP03) ON/OFF Function (for HDP01 only) Short press button to turn the light ON or OFF. The last scene selected (light level) is saved. Note: The light can also be turned on by press and hold on button...
- Page 4 * Meeting Room: Meeting /Presentation /Relax /Display /Whiteboard /Stage * Home: Breakfast /TV /Dinner /Cosy /Housework /Reading The brightness of the scene selected can be quickly adjusted by long press (>1s) on button . This one-time adjustment will not be saved in the scene. www.hytronik.com Hytronik DALI Accessories...
