Rapid Controls SAB-QS Quick Start

SAB-QS Quick Start
This document aims to provide a systematic setup procedure to enable you to setup and use your SAB-QS
as easily as possible. This guide will concentrate on connections and basic setup. More information is
available for advanced setup, refer to the SAB-QS manual. If you do not have a TDD manual, call Rapid
Controls or visit the Rapid Controls website, www.rapidcontrols.com.

1. Power Connection (Connector JP4)

Power input to JP4 provides power to the board and the transducers. Refer to the transducer
requirements before choosing a power source for the SAB-QS. The following pins must be connected:
Pin 1 is connected to either +24VDC or +15VDC depending on the requirements of the
transducer.
Pin 2 is connected to ground.
Pin 3 is connected to –15VDC if required by the transducer. Otherwise, no connection is made.
http://www.rapidcontrols.com/ § email: info@rapidcontrols.com
SAB-QS Quick Start
JP4
3
1
2
1
X2
SAB-QS
1
JP3
3
14
X7
13
12
1
11
10
3
9
X1
8
7
6
5
4
3
2
1

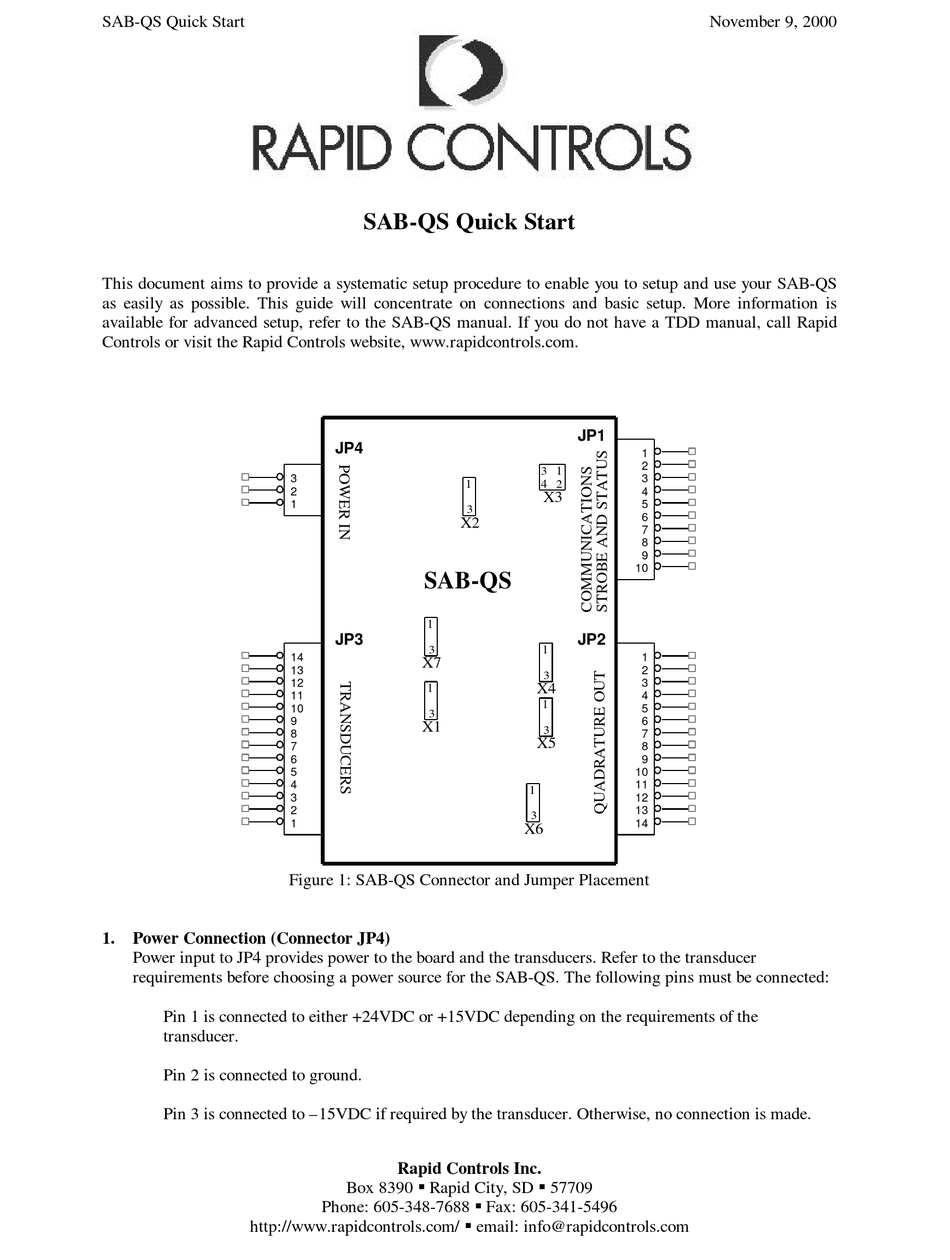

Figure 1: SAB-QS Connector and Jumper Placement
Rapid Controls Inc.
Box 8390 § Rapid City, SD § 57709
Phone: 605-348-7688 § Fax: 605-341-5496
JP1
1
2
3 1
3
4 2
4
X3
5
3
6
7
8
9
10
JP2
1
1
2
3
3
X4
4
1
5
6
3
7
X5
8
9
10
11
1
12
13
3
14
X6
November 9, 2000
