SAB-Q2 Quick Start
This document aims to provide a systematic setup procedure to enable you to setup and use your SAB-Q2
as easily as possible. This guide will concentrate on connections and basic setup. More information is
available for advanced setup, refer to the SAB-Q2 manual. If you do not have a SAB-Q2 manual, call
Rapid Controls or visit the Rapid Controls website, www.rapidcontrols.com.
1. Power Connection (Connector J4)
Power input to J4 provides power to the board and the sensors. Refer to the sensor requirements before
choosing a power source for the SAB-Q2. The following pins must be connected:
Pin 1 is connected to either +24VDC or +15VDC depending on the requirements of the sensor.
Pin 2 is connected to ground.
Pin 3 is connected to –15VDC if required by the sensor. Otherwise, no connection is made.
http://www.rapidcontrols.com/ email: info@rapidcontrols.com
SAB-Q2 Quick Start

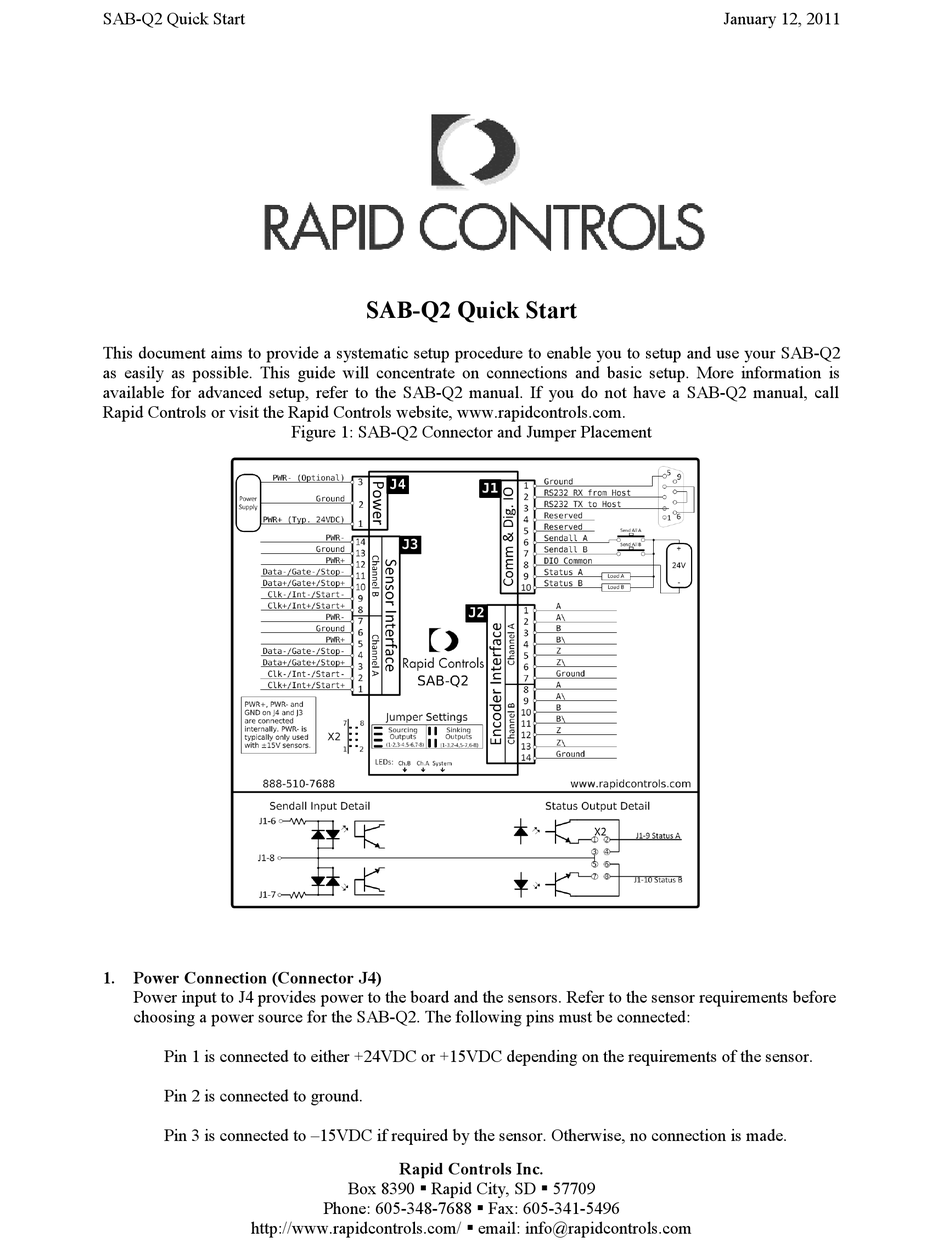

Figure 1: SAB-Q2 Connector and Jumper Placement
Rapid Controls Inc.
Box 8390 Rapid City, SD 57709
Phone: 605-348-7688 Fax: 605-341-5496
January 12, 2011
