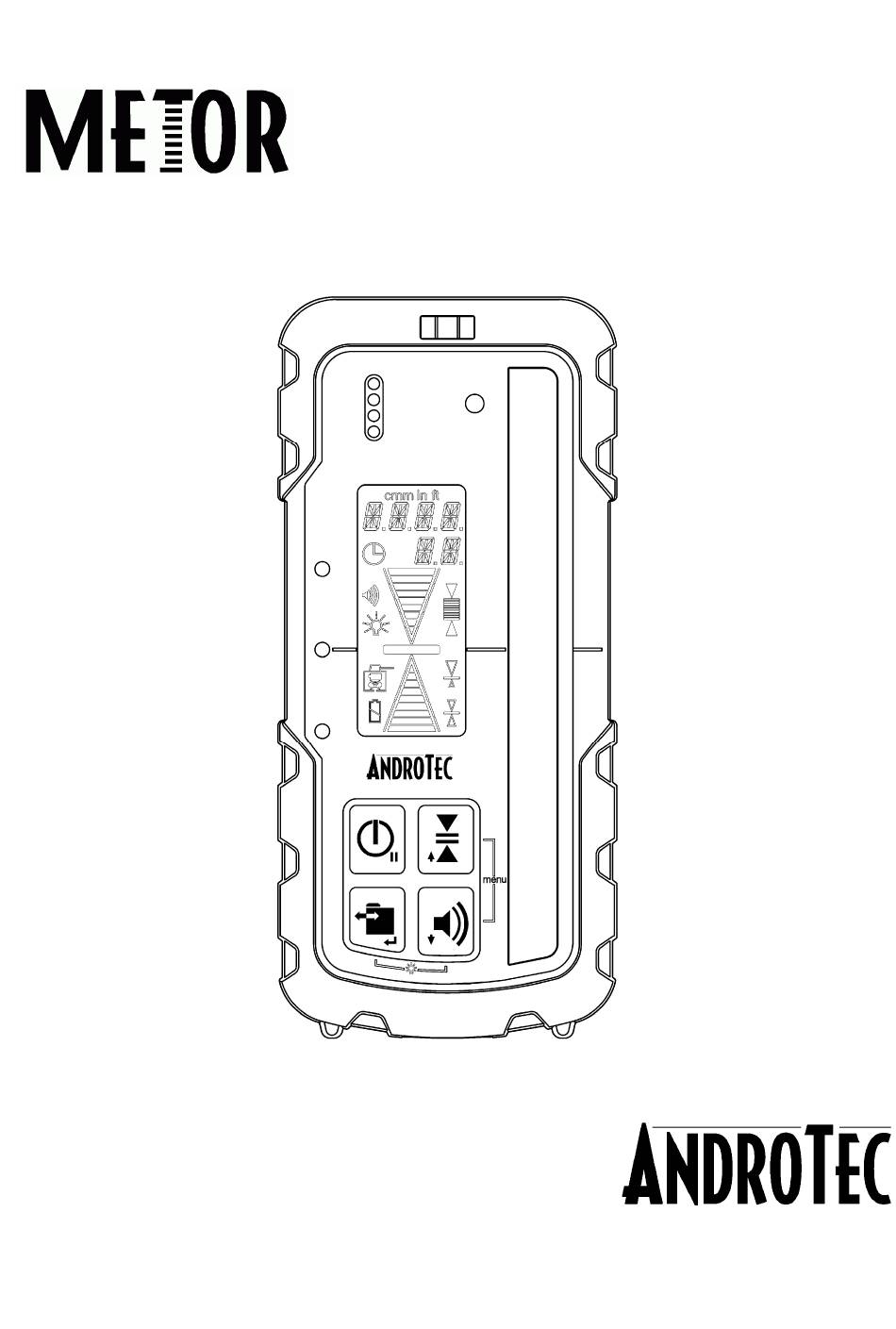

- Page 1 Operator's Manual MTR-125 MTR-125 RF Handheld Laser Receiver...
- Page 2 Please read this manual thoroughly before use. Please contact your AndroTec dealer or AndroTec in case you have questions regarding specific applications or if you require additional information.
-
Page 3: Table Of Contents
V1.2 EN 18.02.2010 Table of Contents General description Included in delivery Installing the batteries Front view Rear view Keypad Secondary key functions Display Advanced functions / Memory 10 Menu Functions 11 Radio Function (MTR-125 RF only) 12 Rod Clamp 13 Specifications 14 Warranty 15 Maintenance and Safety 16 Disposal... -
Page 4: General Description
General description AndroTec METOR is a handheld laser receiver, designed to receive and to display reference elevation information from red and infrared rotational lasers. A large 127mm vertical reception window captures the laser beam using AndroTec’s patented X²L sensor technology. -
Page 5: Included In Delivery
2 Included in delivery The retail pack contains: AndroTec METOR handheld laser receiver Rod clamp Two AA batteries Operator’s manual Warranty registration card Optional available accessories: Data cable to copy METOR's memory content to a PC ... -
Page 6: Front View
4 Front view 1 - Keypad: Power, accuracy, me- mory and volume keys. Refer to page 6. 2 - LEDs: Easy to see LEDs show position of METOR relative to the laser beam. Green for on-grade, Red for high, and Blue for low. 3 - Beeper: Fast beeps indicates too high, lower to get to on-grade. -
Page 7: Rear View
5 Rear view 9 - Battery door and latch: Waterproof housing holds two "AA" batteries. 10 - Marking notch for center on- grade position. Top of detector is 80mm from marking notch. 11 - Captive screw thread - for center on-grade position. 12 - Captive screw thread - for offset on-grade position. -
Page 8: Keypad
Keypad 1 - Power key: Press the power key to turn power on. All LEDs, the LCD and the beeper will come on momentarily. 'CAL' will be dis- played and LEDs sequenced as the unit goes through self-calibrating procedure approximately three seconds. NOTE: Do not power up the unit in a laser beam or strobe. -
Page 9: Secondary Key Functions
7 Secondary key functions 5 - LED-brightness: Pressing the memory and volume keys simultaneously enables the selection of LEDs' brightness. Press together to cycle through OFF, DIM and BRIGHT. The LEDs will display the current level brightness selected switches are pressed. The light bulb symbol on the LCD will also change to display the selected setting. -
Page 10: Display
8 Display 1 Grade indication arrows 2 Radio enabled / in range 3 Laser out-of-level / laser low battery 4 LED brightness 5 Beeper volume level 6 Timer 7 Units of measure 8 Numeric elevation / Menu text display 9 Menu text display 10 Accuracy (Deadband) indicator 11 Offset on-grade clamp location 12 Battery status indicator... - Page 11 2 - Antenna symbol (MTR-125 RF only): Indicates, that radio is enabled (radio mode "PC") or in range (radio mode "MT" or "GL"). Refer to page 18 for further information on radio functions. 3 - Laser out-of-level and laser low battery warning: Some laser transmitters can signal warnings by changing the rotation speed (RPM) of the laser.
- Page 12 6 - Timer: This Symbol indicates an activated timer function. Refer to page 12. 7 - Units of measure: Indicates if centimeters (cm), millimeters (mm), inches (in), or feet (ft) is selected. 8 / 9 - Numeric elevation / Menu text display: When in the normal operating mode, the four-character graphic displays numeric elevation.
- Page 13 METOR allows two different mounting positions for the rod clamp which are detected automatically. A corresponding symbol is displayed. NOTE: Other clamps than the original METOR clamp can not be detected by METOR and can lead to measuring errors in offset position.
-
Page 14: Advanced Functions / Memory
9 Advanced functions / Memory Capture / Timer: The capture function is used to obtain a single reading and keep it displayed. This is useful when the unit may not be visible while grade information needs to be obtained. When METOR is in the laser beam and power is on, momentarily press the power/capture switch. - Page 15 User defined on-grade level: Any arbitrary level within 30mm above or below the marking notch can be used as on-grade level. The user defined on-grade level is set by pressing the accuracy key for two seconds while in beam or while a captured height level is displayed.
-
Page 16: Menu Functions
10 Menu Functions NOTE: The menu functions can be used to edit various options. For most applications the factory defaults are the best choice. We recommend to change settings only in special applications. The menu screen is accessed by pressing the accuracy and volume keys together for approximately two seconds. - Page 17 SENS - Sensitivity (LO / MD / HI): Selects reception sensitivity to laser and other light sources. LO (Low) is used if outside sources are disturbing elevation readings. MD (Medium) is used for most applications and is default setting. HI (High) can be used when working with a weak laser beam or if the beam needs to be picked at very long distances.
- Page 18 O.O.B - Out-of-Beam Display (ON / OF): When ON a sequence of arrows is displayed that indicates when the receiver has moved beyond the vertical laser reception range. The sequence will indicate which direction to move to get back in the laser beam. The display remains on for approximately 25 seconds.
- Page 19 TX.L.B. - Transmitter Low Battery (OF / 2.3 / 2.7 / 3.3 / 5.0 / 6.7): Special Application used with transmitters which communicate to the receiver that the laser has a low battery by changing their rotating speed. When enabled, the receiver senses this change and alerts the user to a laser low battery condition.
-
Page 20: Radio Function (Mtr-125 Rf Only)
11 Radio Function (MTR-125 RF only) The build in radio module can operate in different modes, which can be selected in the menu (see page 14): OF: Radio disabled (minimal power consumption) MT: Remote display application (act as SENSOR or DISPLAY) GL: Grade Laser control (use with compatible laser transmitters) PC: Transmit readings to a PC for monitoring applications NOTE: For using GL or PC mode, please refer to the operating... -
Page 21: Rod Clamp
12 Rod Clamp 1 - Captive Rod Clamp Screw attaches to the back of detector. 2 - Alignment Points: Help secure and align rod clamp. 3 - Magnet: Allows METOR to detect which clamp position is used. 4 - Clamping Screw Knob: Secures clamp to rods by moving the traveling jaw. -
Page 22: Specifications
13 Specifications Working radius: 1 m – 300 m (Laser dependent) Sensor: X²L-Sensor, Length 127 mm Numeric Readout Height: 102 mm Accuracy (Deadband): Ultra Fine 0.02 0.002 0.05 Super Fine 0.05 0.005 0.10 Fine 0.10 0.010 0.20 Medium 0.20 0.020 0.50 Coarse 0.50... -
Page 23: Warranty
14 Warranty AndroTec METOR and clamp are warranted to be free of defects in material and workmanship according to the statutory warranty regu- lations. The user of the product is expected to follow all operating, main- tenance and care instructions. Any evidence of misuse, alteration, or... -
Page 24: Maintenance And Safety
15 Maintenance and Safety CLEANING: Do not wipe dust or dirt off the detector reception win- dow or display windows with a dry cloth or other abrasive material as scratching could occur, reducing visibility through these windows. A soft cloth and mild soap and water are effective. The unit may be submerged under water or sprayed with a low pressure hose if necessary. -
Page 25: Disposal
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Alternatively, please ship the detector for proper disposal to AndroTec clearly stating "WEEE / Disposal" on the packaging. The customer is responsible for the costs of transport to AndroTec. -
Page 26: Ce Declaration Of Conformity
AndroTec GmbH Hauptstraße 186 D-67714 Waldfischbach-Burgalben Bundesrepublik Deutschland http://www.androtec.de Model number: AndroTec METOR MTR-125 (RF) Equipment Type / Environment: ITE, commercial, light industrial Harmonized Standards Applied: Electromagnetic Compatibility (EMC) EN 61326:1997 +A1:1998 +A2:2001 +A3:2003 Class B Annex A, EN 550022:1998 +A1:2000 +A2:2003, EN 61000-4-2:1995;... - Page 27 • Increase the separation between the receiver and the interfered device. For more information, consult your dealer or an experienced radio/television technician. CAUTION: Changes or modifications to the receiver that are not expressly approved by AndroTec could void authority to use the equipment.
- Page 28 Get to the point with us AndroTec GmbH Hauptstraße 186 D-67714 Waldfischbach-Burgalben Germany Phone +49 (0) 6333-27 55 0 +49 (0) 6333-27 55 22 E-mail info@androtec.de Internet www.androtec.de...
