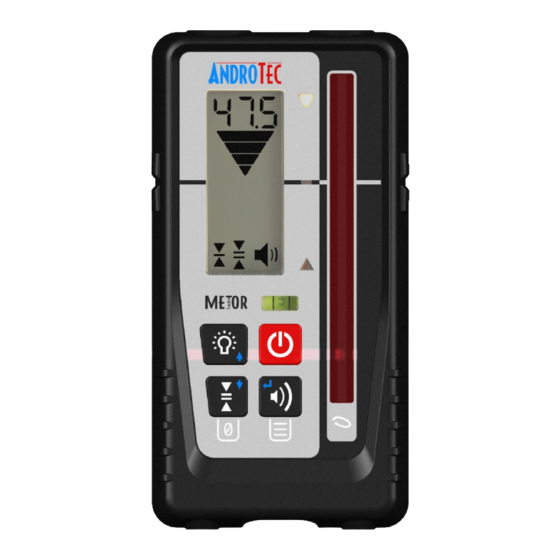

- Page 1 Laser Detection at its Best www.androtec.com /links/detectors Digital Laser Receiver Metor Art. 600354 Model: MTR-90R Firmware: V1.40 Instruction Manual www.androtec.com V1.1 EN 02.12.2016...
- Page 2 Only authorised and trained personnel are allowed to repair the device. Only use genuine Do not use the laser receiver in explosive spare parts from AndroTec GmbH. This ensures atmospheres or near flammable liquids, gases continuous device safety. or dust. The device may produce sparks that can ignite vapours or dust.
- Page 3 Instruction Manual Digital Laser Receiver Metor Model: MTR-90R Laser Detection at its Best 3 4 5 Fig. A Page 2...
- Page 4 Instruction Manual Digital Laser Receiver Metor Model: MTR-90R Laser Detection at its Best Fig. B Fig. C Fig. D Page 3...
- Page 5 Instruction Manual Digital Laser Receiver Metor Model: MTR-90R Laser Detection at its Best Technical Specifications Device Elements (Fig. A) __________________________________________ 1 Magnet 2 LED grade indicator (yellow) Capture height 90 mm __________________________________________ 3 LED grade indicator (green) Numeric readout height...
- Page 6 Instruction Manual Digital Laser Receiver Metor Model: MTR-90R Laser Detection at its Best Grade indication arrows Subsequent presses will cycle through five Four individual levels of grade information for above accuracy options Ultra fine / Fine / Medium / Coarse and below grade.
- Page 7 Default: mm. Choose desired numeric elevation display unit. o.o.b - Out of beam display: On/OFF AndroTec Metor and clamp are warranted to be free of defects in material and workmanship according to the Default: OFF. Switch Out-of-beam display on and off.
- Page 8 EC Directive 2014/30/EU 2014/35/EU Technical Documentation at: AndroTec GmbH Mirko Eßling General Manager AndroTec GmbH Waldfischbach-Burgalben, 07.01.2016 © 2016 AndroTec GmbH Technical changes reserved. We accept no liability for printing errors. Page 7...
