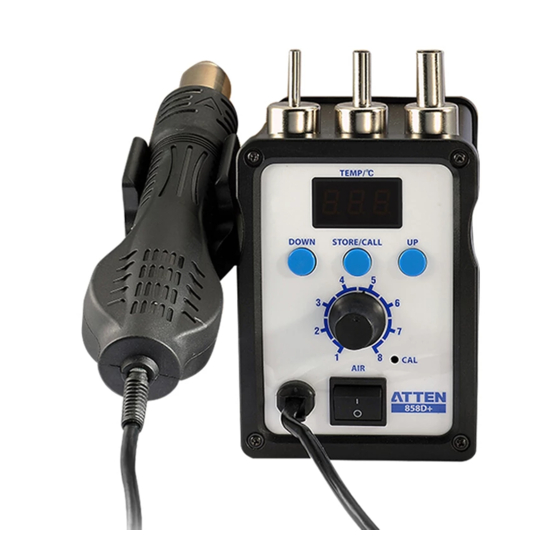

Atten AT858D+ Manual

AT858D HOT AIR REWORK STATION MANUAL

Introduction

- Closed-loop sensors
- Zero-crossing triggering temperature control of microcomputer
- LED display
- high power
- rapid rise of temperature
- Stable temperature
- The amount of air flow can be modulated; large and soft air flow; it is convenient to
modulatetemperature; it is suitable for many purposes
- There is a conductive switch on the handle; only if you hold the handle, the system can enter the
working mode rapidly; while the handle is put on the shelf, it will enter the waiting state; easy to
operate.
- There is no automatic cooling function, which can extend the lifespan of the heating element and
protect the hot air rework station.
- Plastic shell; cabinet; good-looking; it occupies little space.

Technical Parameters

Model
voltage
Power consumption
Type of air pump
Gas flow
Temperature range
Length of handle(including the wire)
Size
Weight
noise
Display

Warning

Before using the hot air rework station, you must abide by the following measures in order not to get an
electric shock, result in damages to people or result in fire, etc.
- In order to secure the safety of people, you must use the parts or accessories that the factory of
origin certificates or recommends; or it will lead to serious aftermaths.
- This rework station must be repaired by qulified technicians or the appointed person by us.
- Be careful, for it is operated at a high temperature. Don't use it near flammable and explosivegas
and objects, for the tip and the air from it are steaming-hot, which can burn people. Don't touch
the heating element or spray the hot air against people.
- When the hot air rework station starts to work, don't leave from your post.
- Keep away from children.
- When it starts to work, don't install the nozzle until the heating pipe and nozzle are cooled.
- Please keep the draughts of input and output expedite; there should be no block.
- After using it, remember to cool the machine. You should put the handle on the shelf. When the
machine is in the waiting state, you can make the power off.
- If you don't use it for a long time, you should put the connector plug off.
AT858D+
AC220V/50Hz
700W
Gentle wind of brushless fan
120L/min(MAX)
100-450℃
1.2CM
151(L)*100(W)*153(H)mm
About 1.5KG
<40dB
LED(DIGITAL)(RESOLUTION,1)
1
