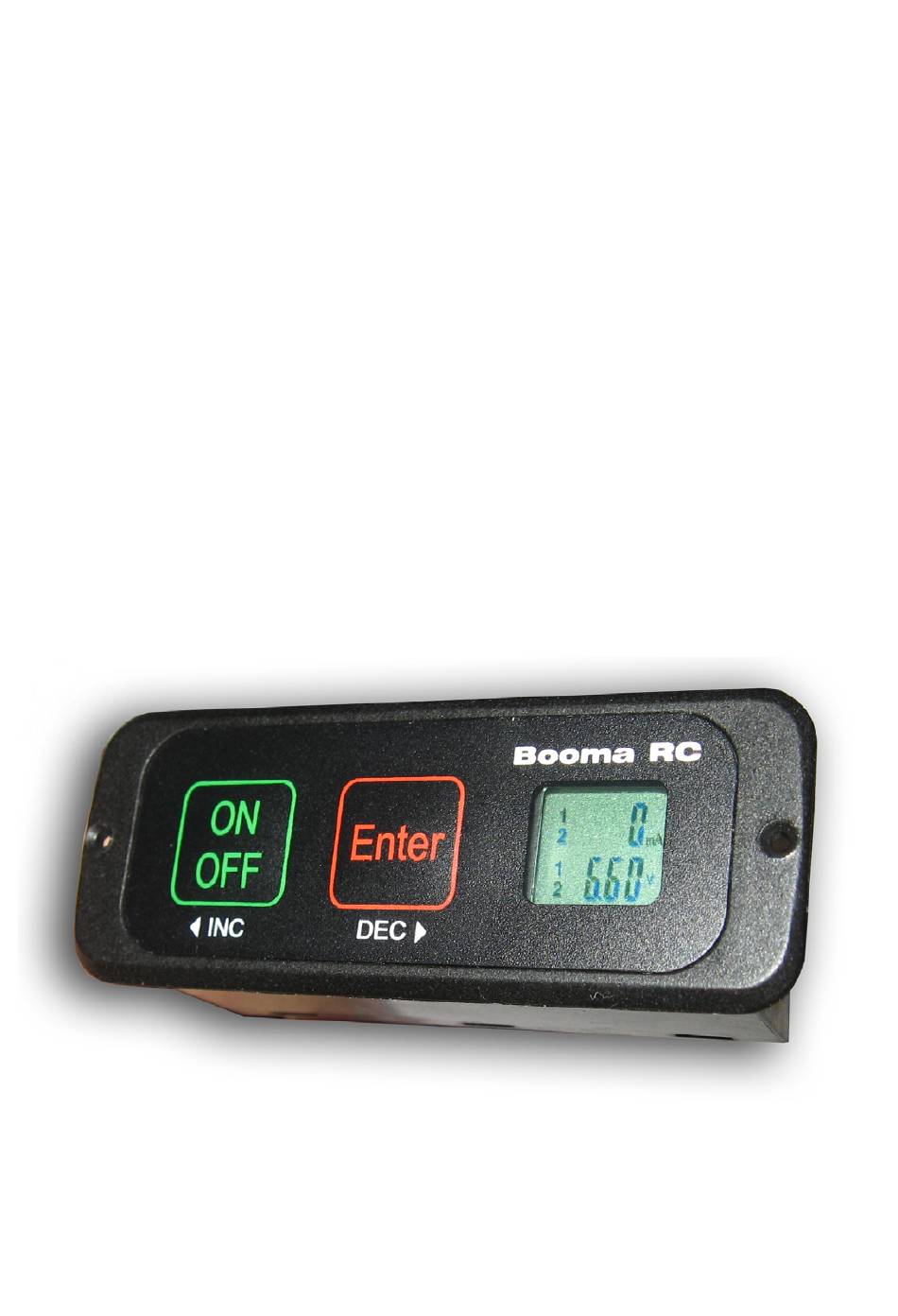

Booma RC
Intelliswitch V3
www.boomarc.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Intelliswitch V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Booma-RC Intelliswitch V3

Summary of Contents for Booma-RC Intelliswitch V3

  • Page 1 Booma RC Intelliswitch V3 www.boomarc.com...
  • Page 2 DO’S DON’TS Congratulations for choosing the Booma RC Intelliswitch. Intelliswitch was designed for giant scale RC and Robotics enthu- Intelliswitch comes with 2 completely independent solid state dig- siasts by a giant scale RC and Robotics enthusiast. Intelliswitch ital switches and active battery monitoring which will balance and offers features never seen before in Radio Control applications in draw current from both batteries for maximum battery consump- a compact, light weight and affordable package.

  • Page 3: Let's Get Started

    Lets get started Typical Connection Examples for Intelliswitch V3 with Active Battery Redundant System. Connect both batteries to Intelliswitch (see page 15 for connection details). Do not con- RSET Intelliswitch Version 3 with DualBat Battery nect Intelliswitch to the receiver just yet. The Redundant System and Dual Receivers display will show the letters “RSET”.

  • Page 4: Sleep Mode

    Turning Intelliswitch ON and OFF Sleep Mode SLEEP MODE WILL ONLY ACTIVATE WHEN INTELLISWITCH IS IN THE OFF STATE 1100 Enter Intelliswitch uses a state-of-the-art low power technology to maxi- 6.61 mise the life of your batteries. While in the off state Intelliswitch will go into a sleep mode using only 0.4mA to conserve power.
  • Page 5 Template Cutout for Intelliswitch Paging Through the Displays In both ON and OFF state, Intelliswitch displays several pages of information. 22.8 mm (0.9 in) Pressing “ENTER” moves one page to the right. SySt 1100 1100 FL-T TENP 6.61 6.61 9.30 Pressing “ON/OFF”...

  • Page 6: Battery Selection

    Intelliswitch Pages Battery selection Intelliswitch comes pre-calibrated to monitor voltage levels and Page 1- (Switched On/Off Condition) shows battery 1100 current consumption of LiFeP04 chemistry batteries. If you are us- 1 mAh consumption and battery 1 voltage. ing LiPo or Lion batteries you will need to re-calibrate Intelliswitch. 6.61 Don’t worry, Intelliswitch is easy to calibrate.
  • Page 7 Template Cutout for Intelliswitch FACTS Why does one Intelliswitch mA meter show a different consump- tion value to the other? Batteries have an internal resistance. Think of this as a force at- tempting to stop current from flowing out of the battery. Not all batteries have the same internal resistance.
  • Page 8 Battery Inputs Intelliswitch Outputs Current carrying capacity of connectors. Intelliswitch V3 will handle 20A per circuit (40A total). However, JR or Futaba type servo connectors are designed to carry a maxi- mum of approximately 5 Amps per connector. This is sufficient for most RC models up to 9 servos.
  • Page 9 Intelliswitch V3 Specifications - 2 x independent switching circuits in a double pole single throw combination. - 2 x independent active battery management circuits. - Battery chemistry LifeP04 (2 - 3 cells), LiPo Life (2 - 3 cells), Lion (2 - 3 cells).
