Booma-RC Intellimatch IM22 Quick Start Manual

Please read this before using this

IM22 and IM14 Quick Start Guide

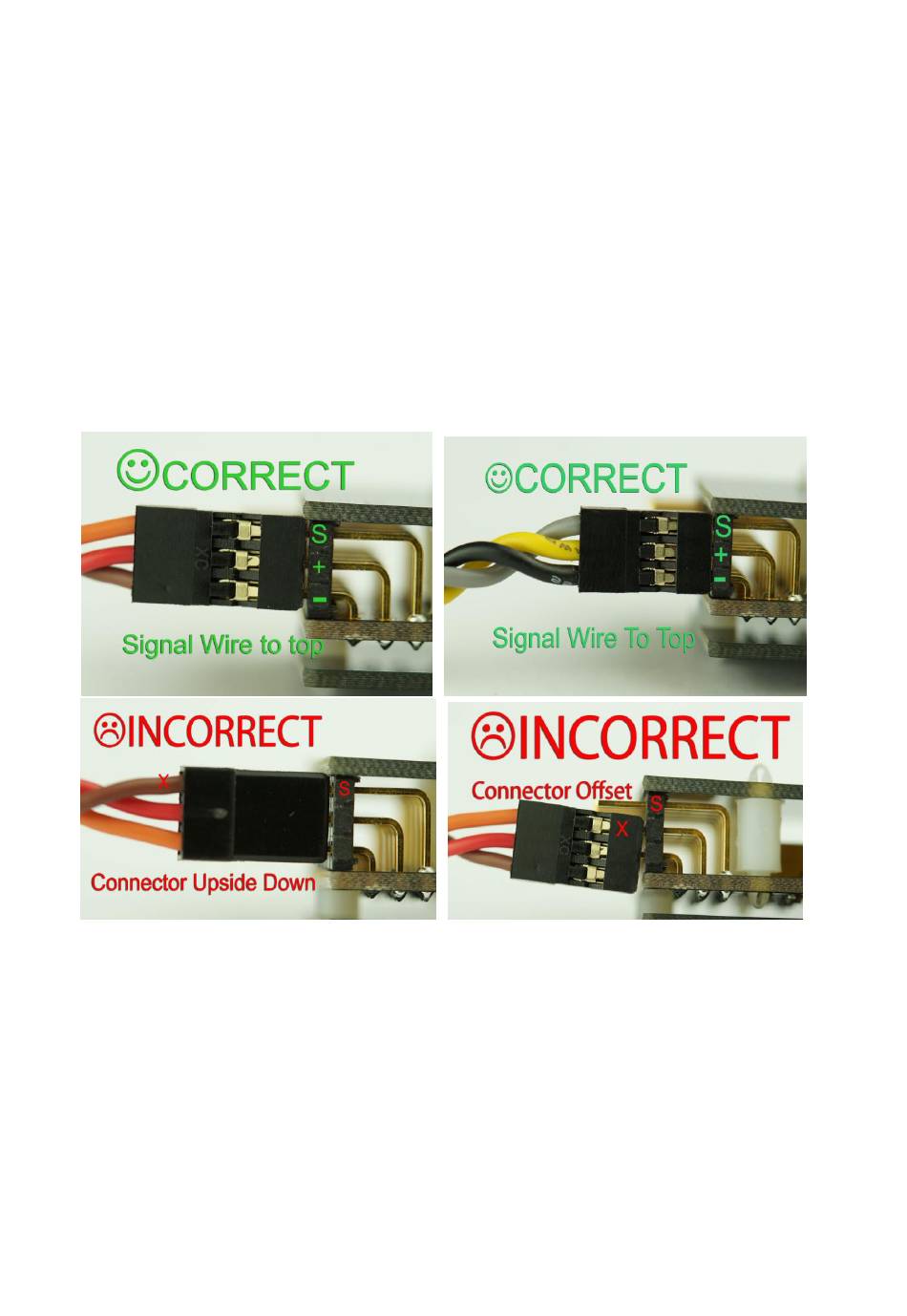

Connecting output from IM22/Im14 to servos.

All servos are slightly different. Some servos will handle a reverse polarity and some will not. Therefore it is

extremely important that you connect your servos correctly prior to applying power to the system. The following

pictures show exactly how to make this connection.

Matching servos is an easy task once you understand the principles of how the Intellimatch system works. The

following method describes how to get excellent results when matching your servos. Please read and understand the

following before mechanically coupling the servos or applying power.

1) Mechanically match the servos as much as possible then mechanically disconnect the slave servo.

2) With the slave servos mechanically disconnected from the master servo, set the servo range on your transmitter

with only the master servo connected to the IM22/IM14.

3) With the slave servos mechanically disconnected from the master servo, electrically connect the slave servo to the

output1 connector on the IM22/IM14. NOTE: THE SIGNAL WIRE GOES TO THE TOP WHEN PLUGGING IN SERVOS.

PLEASE ENSURE THE CONNECTOR POLATIY IS CORRECT I.E. THE SIGNAL WIRE IS TO THE TOP.

Table of Contents

Do you have a question about the Intellimatch IM22 and is the answer not in the manual?

Page 1 Please read this before using this Intellimatch product. IM22 and IM14 Quick Start Guide Connecting output from IM22/Im14 to servos. All servos are slightly different. Some servos will handle a reverse polarity and some will not. Therefore it is extremely important that you connect your servos correctly prior to applying power to the system. The following pictures show exactly how to make this connection.
Page 2 Center and End Point Trimming 4) Set the transmitter to centre stick position then rotate the selector switch on the IM22/IM14 to position 1. Position 1 is the sub trim for slave servo 1. Use the IM22/IM14 buttons to Sub trim slave servo 1 until the slave servo arm drops easily in place.
