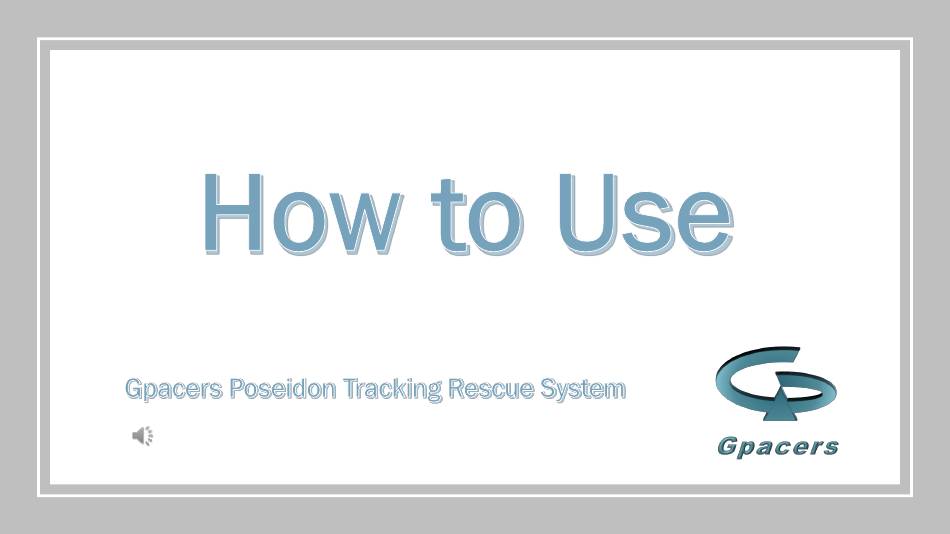

Gpacers Poseidon How To Use Manual

Tracking rescue system
Hide thumbs Also See for Poseidon:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Poseidon and is the answer not in the manual?

Questions and answers

Related Manuals for Gpacers Poseidon

Summary of Contents for Gpacers Poseidon

  • Page 2: Usage Mode

    Usage Mode ■ Transmitter mode – Carried by individual – By hand or independently floating on the water. – Transmits data to a receiver : ID, status, coordinates. ■ Receiver mode – Fixed at a higher altitude on the vessel or on the shore.
  • Page 4 Amazing performance even when used in the simplest way 200 km 10 km 70 km Altitude 300 m...
  • Page 5 Extend the tracking range to hundreds of km • Private satellite-like • Long range searching capability safety surveillance is extremely important in rescue systems can be easily missions established with repeater mode. 200 km 200 km...
  • Page 6 Outer waterproof housing To protect internal circuits L _sw LED indicator switch Inner housing R_sw To protect internal circuits Switch ON to set to and battery Receiver mode Transparent waterproof T_sw housing Switch ON to set to To protect internal circuits Transmitter mode Appearance !_sw...
  • Page 7 Before Use Check the Set the receiver Check the System Batteries •Open receiver •Turn on the • Check the mode, fixed at a transmitter batteries of the higher altitude. •Enable Wi-Fi transmitter, •For very long connection for receiver, and distance search receiver/mobile mobile device.
  • Page 8 Usage Mode Setting Receiver Transmitter...
  • Page 9 Functions Transmitter Distress Call(Show Location)

  • Page 10: Repeater Mode

    Repeater Mode – placed at a higher altitude or attached to a drone to overcome communication obstacles of various terrain features. – the receiver can be placed on the ground or at any location where relay signals can be received. –...
  • Page 11 Startup Deactivation: Hard reset Set all switches to OFF Note : [1] GPT will standby for 30 minutes then shutdown [2] After a DISTRESS function is triggered only swapping between DISTRESS and DISTRESS TERMINATING is allowed. – Once the rescued is complete, the system will automatically issue a 60-minutes rescue termination notification to end the search.
  • Page 12 1. Wi-Fi connection : Mobile device/Receiver 2. Open GPT App 3. Select members on the App Please refer to : Gpacers GPT App User's Manual...
  • Page 13 When there’s no power supply, you can use a power bank.

  • Page 14: Charging Display

    Charging Display Battery level increment cyclic display until full charged ➔ stable Model 7 6 % Battery Level C u r 9 3 2 Charging Current System Temperature T e m p...
  • Page 15 OLED display...

  • Page 16: Receiver Mode

    Receiver Mode icon -1 icon -2 icon -3 icon -4 Transceiver Status Battery Level GPS/SOS Wi-Fi ID, latitude, longitude...
  • Page 17 Repeater Mode icon-1 icon -2 icon -3 icon -4 Transceiver Status Battery Level GPS(disable) ID, Model...

  • Page 18: Transmitter Mode

    Transmitter Mode icon-1 icon -2 icon -3 icon -4 Transceiver Status Battery Level ID, latitude, longitude...
  • Page 19 Transceiver Status Icon Usage Mode Sleep Status Standby Status Icon-1 Call Status Transmitter Distress Status Transmitter Transceiver Distress terminating Status Transmitter Transmitter Unknown Status Status Receiver Status Receiver Repeater Status Repeater...
  • Page 20 Switches and corresponding transceiver status L_sw An independent switch not related to transceiver function control or display R_sw T_sw Other Combination !_sw C_sw Other Status Other Status OLED Standby ➔ Hard Distress_ Receiver Call Repeater Description reset Shut Unknown Distress Terminating Unknown down[1]...
  • Page 21 Battery Level Icon Usage Mode <10% Icon-2 <30% Battery <50% Level <70% <90% >90%...
  • Page 22 Icon-3 GPS/Distress GPS/Distress Icon Usage Mode: Description Transmitter/Receiver : GPS positioning has been located Transmitter/Receiver : GPS positioning has been not located Repeater : GPS disabled Distress Receiver : Received distress signal...
  • Page 23 Icon-4 RF/Wi-Fi RF/Wi-Fi Icon Usage mode : Description Transmitter/Repeater : Within 5 seconds after transmission - Incremental cyclic display Transmitter/Repeater 5 seconds after transmission Receiver : Wi-Fi Connected to device Receiver : Wi-Fi Not connected to device...
  • Page 24 1. Identity, latitude, longitude or model (Repeater) 1. 10 second countdown before shutting Text down 2. When the distress signal is received Display in the receiving mode, the ID, latitude and longitude of the distress transmitter are displayed.
  • Page 25 For more information, please refer to : ■ An Intro to_Gpacers Poseidon Tracking Rescue System ■ Design Basis_Gpacers Poseidon Tracking Rescue System ■ System Implementation_Gpacers Poseidon Tracking Rescue System ■ How It Protects_Gpacers Poseidon Tracking Rescue System ■ How to Use_Gpacers Poseidon Tracking Rescue System Download ■...
