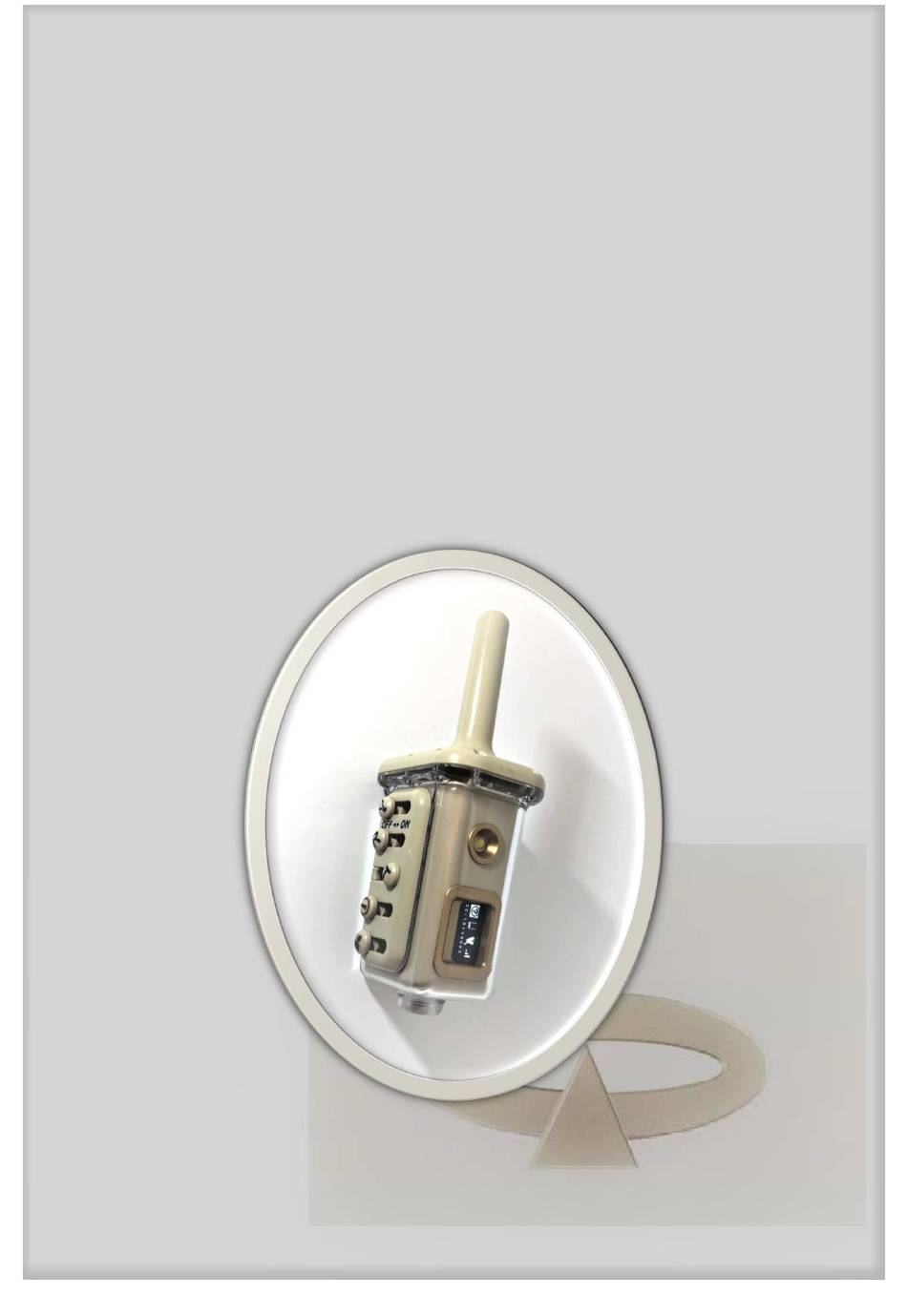

- Page 1 Gpacers Poseidon Tracker User’s Manual Version: December 21, 2018...
-
Page 2: Table Of Contents
Table of Contents 1 Gpacers Poseidon Tracker Overview ......................4 1.1 System Overview ..............................4 1.2 GPT Appearance ..............................8 2 Before Use ..............................8 2.1 Charge the Unit ............................... 8 2.2 Install PT App on Mobile Device..........................8 3 Start to Use ..............................9 3.1 Check before startup ............................... - Page 3 IMPORTANT NOTES! The Gpacers Poseidon Tracker is an aid to your safety. It is not a life-saving device. Radio Frequency Safety Statement The Gpacers Poseidon Tracker is a radio frequency product developed with the latest IoT technology and should comply with RF regulations when using.
-
Page 4: Gpacers Poseidon Tracker Overview
The Poseidon Tracker System contains at least two transceivers, one set to transmit mode, one set to receive mode and a smart device running the App as the control console. In some applications, such as emergency rescue, another transceiver set to be a repeater can extend its effective communication range to hundreds of kilometers. - Page 5 The Transmitter carried by an individual can receive GPS data and transmit ID, status and coordinates to the Receiver. Under normal weather conditions, depending on the height set by the receiver, the maximum transmission distance can exceed 200 km. The app console designed for the system has a powerful and user-friendly interface. The relevant safety personnel use a mobile device, smart phone or tablet, to connect with the receiver.
- Page 6 All transmitters within the effective range can be monitored at the same time, and the App can issue different preventive alarms to avoid the occurrence of danger and/or to improve the efficiency of the rescue. Applications:...
- Page 7 Note: Transmission Distance of the GPTS The theoretical distance of GPT in free path transmission reaches 900 km. However, in a real environment, there are various sources of interference. The measured results show that in a Line Of Sight transmission, distances can often exceed 200 km. In land applications, the transmission distance is mainly limited by obstacles of the terrain.
-
Page 8: Gpt Appearance
1/4-inch nut for fixation on the base Gpacers Poseidon Tracker User’s Manual 2.2 Install PT App on Mobile Device Download and install the GPT App from the Apple App store/Google Play Store to your mobile device before using the GPT. For more information, please refer to the GPT App Installation - User manual. -
Page 9: Start To Use
3 Start to Use 3.1 Check before startup Note: Before using the GPT, charge to battery to at least 70% to ensure enough endurance when in distress. Note: Please have your receiver and mobile device with the App installed. ... -
Page 10: Set To Transmitter
3.5 Set to Transmitter Set switches: R_sw: OFF T_sw: ON Set to Transmitter 3.5.1 DISTRESS Function in transmitter mode Note: DISTRESS Function should ONLY be used in case of emergency. Misuse of DISTRESS Function might cause waste of rescue resources. ... -
Page 11: Call Function In Transmitter Mode
3.5.2 Call Function in transmitter mode Note: The call function is used to inform the vessel of your location in general and can also avoid a collision by alerting the vessel of your location. Set switches: R_sw: OFF T_sw: ON !_sw: OFF C_sw: ON R_sw: OFF... -
Page 12: Oled Display Description In Transmitter Mode
3.7.3 OLED Display Description in Transmitter Mode icon -1 icon -2 icon -3 icon -4 Transceiver Status Battery Power ID, latitude, longitude 3.7.4 Icon-1 Transceiver Status Icon-1 Transceiver Status Icon Usage Mode Sleep Status Standby Status Call Status Transmitter Distress Status Transmitter Distress terminating Status Transmitter... -
Page 13: Switches And Corresponding Transceiver Status
3.7.5 Switches and corresponding transceiver status [1] Standby for 30 minutes before shutting down [2] TX : Transmitter For 60 minutes after the end of the distress status, the system will automatically issue a rescue termination notification to notify that the search has ended. This status can only interact with the Distress Status. The countdown starts from the end of the last distress signal. -
Page 14: Icon-3 Gps/Distress
3.7.7 Icon-3 GPS/DISTRESS Icon-3 GPS/Distress Icon Usage Mode : Description Transmitter/Receiver : GPS positioning has been located Transmitter/Receiver : GPS positioning has not been located Repeater: GPS disabled Distress Receiver : Received distress signal 3.7.8 Icon-4 RF/Wi-Fi Icon-4 RF/Wi-Fi Icon Usage mode : Description Transmitter/Repeater : Within 5 seconds after transmission, incremental... -
Page 15: Appendix
4 Appendix 4.1 Maintenance Please rinse the GPT with clean water after every use. Please DO NOT use any solvent or other cleaning fluids as this may deteriorate the housing. Please DO NOT use the hot hair dryer. 4.2 Transport Please follow the guidance and regulations in transportation of GPT: ... - Page 16 Size & Weights Weight / Volume 302 g / 218 cc Dimensions (H x W x L) 10.2x6.7x5.7 cm Antenna (H x d) Antenna: 6.1x1.5 cm Battery Li-ion Rechargeable battery ROOFER ENERGY TECHNOLOGY(BAOSHAN)CO.,LTD Battery Model name: INR18650-2600mAh x 2 Rating: DC 3.7 V / 5200 mAh/ 19 Wh 4 days in transmitter &...
-
Page 17: Approvals
4.4 Approvals... -
Page 18: Warranty
MUST show the warranty claim from the original purchaser when Gpacers Technology requires. Gpacers Technology shall not be liable to the buyer for the above warranty under the following conditions: Improper use for purposes other than recommended in the product installation and operating instructions.
