OLYS SNC Series User Manual

Version: 2.0(20191101)
Description of Functions
1. The charge controller automatically recognize 12V or 24V system.
2. Suitable for lead-acid battery, lithium ion battery
3. LCD display various parameters of charge and discharge.
4. Boost charge voltage and battery low voltage protection point can be adjustable
5. The three-stage PWM charging mode
6. Load output can be manually controlled。
7. With high-precision temperature compensation function.
8. With electronic protection
Attentions
The charge regulator is intended for use in photovoltaic systems with 12V or 24V nominal voltages, It shall be used
with vented or sealed (VRLA) lead acid batteries only.
Safety Recommendations:
1.Batteries store a large amount of energy. Never short circuit a battery whatever.
2.Batteries can produce flammable gases. Avoid making sparks, using fire or any naked flame. Make sure that the battery
room is ventilated.
3.Avoid touching or short circuiting wires and terminals. Be aware that the voltages on specific terminals and wires can
be up to double of battery voltage. Use isolated tools. Stand on dry ground and keep your hands dry.
Installation
5.6/142.4
6/152.4

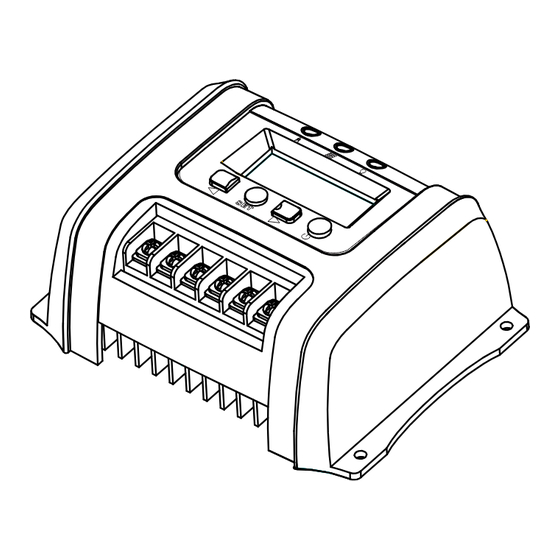

SOLAR CHARGE CONTROLLER
SNC Series
User Manual
Thank you very much for buying our product ,Please read
thoroughly before using the prouuct
,LiFePO4
Please installed in the room, avoiding direct-clearance,
do not install in the wet environment, when use it outdoor,
please install controller and batteries in the same place,
and the batteries installed in the same place, the controller
can measuring the battery temperature, charge
voltage regulation.
Attention：
1. Screws specifications M3 × 10
2. Make sure heat-location were not l blocke
（unit: inch/mm）
